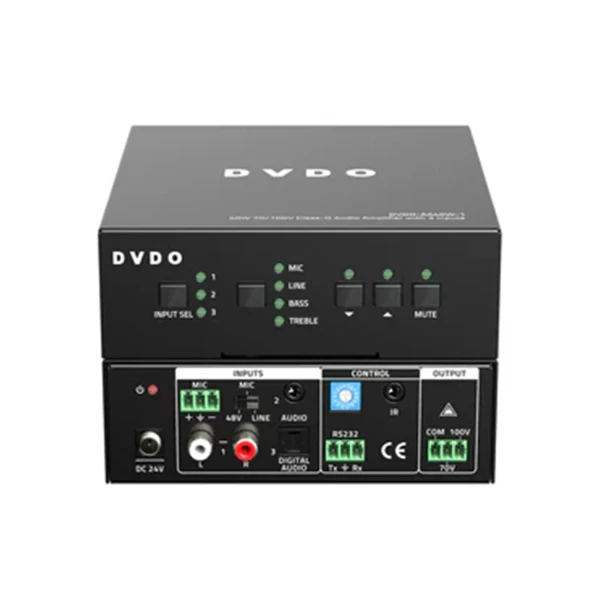

This DVDO AA40W-1 40W 70/100V Class-D Audio Amplifier with 3 Inputs is a 40W Class-D power amplifier with selectable 70V or 100V output. It is ideal for small to medium-sized AV environments, including classrooms, meeting rooms, small venues, bars, restaurants, and digital signage systems.
It features three selectable audio inputs including two stereo inputs (one 3.5 mm line-in jack and one pair of RCA L/R inputs) and one digital input. It also features one balanced MIC input.
It integrates advanced functions such as audio ducking, EQ control, and a MIC mixer. The MIC input supports three selectable levels, accommodating condenser mic, dynamic mic, or line-level audio sources.
Operation is flexible, with control options via front panel buttons, IR remote or RS-232 with a control software.
DVDO AA40W-1 40W 70/100V Class-D Audio Amplifier with 3 Inputs Features:
- High-efficiency Class-D amplification with low heat generation and reliable operation
- Compact design suitable for rack, wall, ceiling or under-table mounting
- Mono audio output at 40Watt
- Switchable between 70V and 100V
- Ducking function
- 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone
- MIC port can support balance/unbalance signal, suppress the external noise effectively
- Two stereo audio inputs and one digital audio input, switchable by button, IR remote & RS232
- Volume/Bass/Treble controllable by buttons, IR remote & RS232
- Fast switching speed for good performance
- LED indicator, for power and working status
Why not buy this DVDO AA40W-1 40W 70/100V Class-D Audio Amplifier with 3 Inputs from HDTV Supply today?
DVDO AA40W-1 40W 70/100V Class-D Audio Amplifier with 3 Inputs Specifications:
- Parameters:
- Rated Power Output: 40W
- Input Impedance: >10kΩ
- Frequency Response: 20Hz – 20kHz
- THD+N: 1% at 1kHz; 0.3% at 20kHz at Nominal Level
- Voltage Gain: 26dB
- Signal-to-Noise Ratio (SNR): 80dB Max
- Common Mode Rejection Ratio: >70dB @ 20Hz ~ 20kHz
- Connections:
- Audio Inputs:
- Stereo Line Input [2 RCA L/R Connectors]
- MIC Input [3-Pole 3.81mm Captive Screw Connector & 3.5mm Jack]
- Digital Fiber Audio [S/PDIF Optical Connector]
- Audio Output:
- Mono Amplifier [3-Pole 3.81mm Captive Screw Connector]
- Constant Voltage 70V or 100V
- Control Interfaces:
- RS232 [3-Pole 3.81mm Captive Screw Connector]
- IR [3.5mm Jack]
- 16 ID Codes + Front Panel Buttons
- Audio Inputs:
- Power:
- Power Supply: 100-240V AC @ 50/60Hz / 24V DC @ 2.71A
- Power Consumption: 5W (Standby)
- Mechanical:
- Enclosure: Black Metal
- Dimensions: 130 (W) x 144 (D) x 44 (H) mm
- Net Weight: 0.860 g
- Environmental:
- Operating Temperature: Operating: 0°C ~ +40°C / Storage: -10°C ~ +60°C
- Relative Humidity: 10%-90%, Non-Condensing
