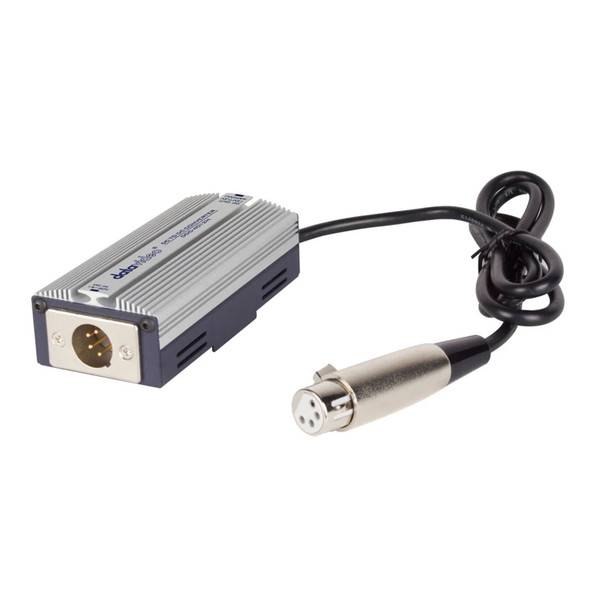

This Datavideo DDC-4012H In-Line XLR DC-DC Converter is built to supply power to third party cameras or AV equipment. This model is designed to be used with the Datavideo PD-6 Power Distribution Unit and CB-22H/ 23H All-In-One Cable. The DDC-4012H automatically accepts input voltages between 15 and 50V DC and provides regulated 7.2V, 8.4V or 12V DC output depending on its output switch setting. The unit allows 4pin XLR type input connections and has options for either 4pin XLR or 5.5mm PSU type output connections.
NOTE: This product is NOT water or weather proof. Datavideo recommends that this product be used indoors.
Datavideo DDC-4012H In-Line XLR DC-DC Converter Features:
- In-Line XLR DC-DC Converter 7.2/8.4/12V
- 2.1 mm Locking Collar DC Output switch
- Max power output 48W / 4A and supports 48V for use with PD-6
- Options for either 4pin XLR or 5.5mm PSU type output connections
Why not buy this Datavideo DDC-4012H In-Line XLR DC-DC Converter from HDTV Supply today?
Datavideo DDC-4012H In-Line XLR DC-DC Converter Specifications:
- DDC-4012H DC to DC 12/7.2V 4.0A Converter:
- Input Voltage Range: 15V~50V DC
- Input Efficiency(Typ.): up to 85%
- Output DC Voltage: 7.2V/8.4V/12V
- Output Voltage Tolerance: ±3%
- Output Rated Current: 4A
- Output Current Range: 0~4A
- Output Rated Power: 48W
- Output Ripple & Noise (Max): < 400mV
- Protection:
- Over Load: 105%~150% rated output power
- Type: Recovery automatically after fault condition is removed
- Connector:
- DC Input(4Pin XLR Male): PIN 1:GND, PIN 2: DC IN, PIN3/4: NC
- DC Output(4Pin XLR Female): PIN 1:GND, PIN 2/3:NC, PIN4: DC OUT
- DC Output(5.5mm DC Jack): Center: DC OUT, Shell:GND
- Environment:
- Working Temp: 32°F to 102°F (0°C to 40°C)
- Working Humidity: 10% to 90% (non condensing)
- Storage Temp. Humidity: -40°F to 185°F (-40°C to +85°C), 10~95%RH
- Others:
- Dimensions (LxWxH): 4.5 x 2.0 x 1.4 in (115mm x 50mm x 35mm)
- Weight: Approx. 0.66lbs/0.3kg
- Cable: UL 2624, 18AWG, L=1M
- Slide Switch: Selected 7.2V or 12V/8.4V output
- LED Lamp: RED: DC out 12V, Green: DC out 7.2V, Orange: DC out 8.4V
