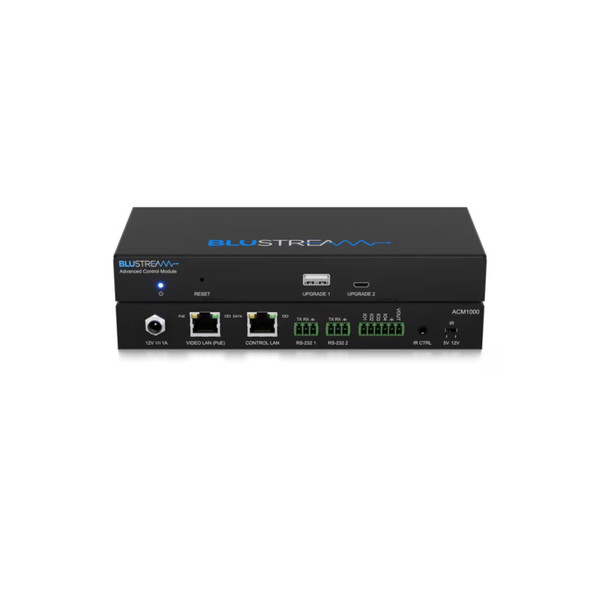

This Blustream ACM1000 Advanced Control Module introduces a complete rebuild of both the control module hardware and supporting management software.
Powered by a quad-core processor, this next-generation platform unlocks a number of new intuitive features including 24/7 scheduling, enhanced source and display control, simultaneous switching, advanced presets, and pre-configured macro control.
Together, these enhancements deliver greater automation, faster workflows, and a more intelligent control experience across the entire AV system.
Built on the foundation of our existing ACM platform, the ACM1000 continues to deliver the powerful core functionality our AV over IP customers rely on every day.
These include one-touch configuration, intuitive drag-and-drop control via the web interface, and fully independent routing of video, audio, serial, IR, USB/KVM, and CEC signals.
Blustream ACM1000 Advanced Control Module Features:
- Web interface module for configuration and control of Blustream AV over IP systems
- Intuitive 'Drag & Drop' source selection with video preview feature for active monitoring of system status
- Advanced signal management for independent routing of video, audio, IR, RS-232, USB/KVM, and CEC (AVoIP platform dependent)
- Auto system configuration using in-built 'Setup Wizard'
- Dual RJ45 LAN connections to bridge business / home network to AV over IP video distribution network, resulting in:
- Better system performance as network traffic is separated (different networks, or VLAN's)
- No advanced network setup required
- Independent IP address per LAN connection
- Allows for simplified TCP / IP control of AV over IP system
- Dual RS-232 ports for control of the AV over IP system, and passthrough of control commands to remote third party devices
- 5V/12V IR integration for control of AV over IP system
- Configurable GPIO ports for integration with 3rd party products
- Direct control command processing allowing IP to IR, serial or CEC to any end point in the system
- GUI based source and display remote for direct control using IR, serial and CEC
- 24/7 scheduling functionality
- Macro functionality for recall of multiple commands from a schedule, GPIO, or API command
- Grouping of receivers for instant recall of input switching to multiple displays
- Preset functionality for recalling set I/O's from a single GUI button press or API command
- PoE (Power over Ethernet) to power Blustream product from PoE switch
- Local 12V power supply (optional) should AV over IP network not support PoE
- 3rd Party drivers available for major control brands
Why not buy this Blustream ACM1000 Advanced Control Module from HDTV Supply today?
Blustream ACM1000 Advanced Control Module Specifications:
- Dimensions (W x D x H ): 190mm x 93mm x 25mm
- Product Weight: 0.5kg
- Shipping Weight: 0.9kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature : -4°F to 140°F (-20°C to 60°C)
- Power Draw: 4W (max)
- Ethernet port: 2x 1Gb LAN RJ45 connector (1x PoE support)
- RS-232 serial port: 2x 3-Pin Phoenix connector
- I/O port: 1x 6-Pin Phoenix connector
- IR Input ports: 1x 3.5mm stereo jack
- Product upgrade: 1x Micro USB, 1x USB Type-A, female
- Power Supply: PoE or 12V/1A DC
Why not buy this Blustream ACM1000 Advanced Control Module from HDTV Supply today?
Why not buy this Blustream ACM1000 Advanced Control Module from HDTV Supply today?
Q: What is the Blustream ACM1000 Advanced Control Module?
A: The Blustream ACM1000 is an advanced control module designed to manage and automate AV systems. It enables centralized control of multiple AV devices, making it suitable for commercial and residential installations.
Q: What is the main use of the ACM1000?
A: It is used for AV system control, automation, and integration, allowing users to manage displays, sources, and other connected devices from a single interface.
Q: Does the ACM1000 support third-party integration?
A: Yes, it supports integration with third-party control systems, enabling flexible system design and compatibility with various AV environments.
Q: What connectivity options are available?
A: The ACM1000 includes multiple control ports such as IR, RS-232, and IP control for seamless communication with AV devices.
Q: Is it suitable for commercial AV installations?
A: Yes, it is ideal for conference rooms, classrooms, control rooms, and other professional AV applications.
Q: Can it be used in residential setups?
A: Yes, it can be used in smart home environments for centralized AV and automation control.
Q: Does it support remote control and automation?
A: Yes, it allows remote access and automation, enabling users to control AV systems efficiently.
Q: Is installation complex?
A: No, it is designed for easy installation and integration into existing AV systems.
Q: What makes the ACM1000 a reliable control solution?
A: It offers stable performance, flexible connectivity, and centralized control, making it suitable for demanding AV environments.
Q: Why buy from HDTV Supply?
A: HDTV Supply offers expert support, competitive pricing, fast shipping, and a wide selection of professional AV solutions tailored to your needs.
