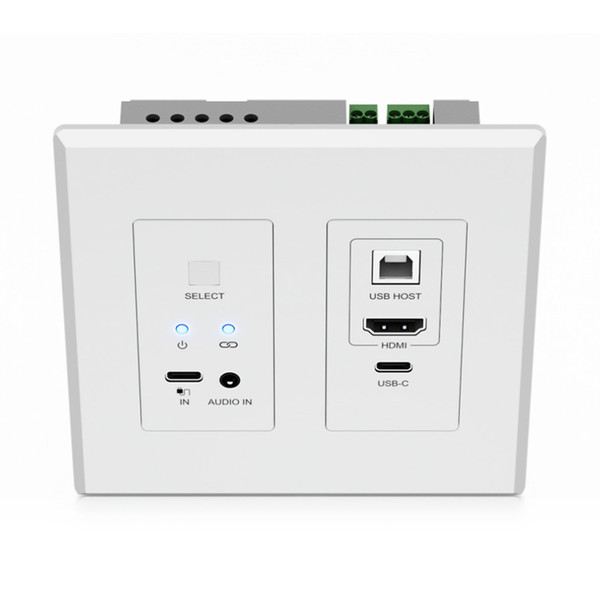

Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter

Blustream

Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter
Was: $1,647.95
Now: $1,642.95

10% Discount. Apply Code 10percentOff at Checkout!

Part Number:
Blustream-IP300UHDWP-TX
Condition:
New
Availability:
In Stock - Usually Ships within 24 Hours
2:
Advanced 4K HDMI 2.0
3:
Virtually Unlimited System Size
4:
Supports HDR & HDR10+
5:
Supports Bitstream Passthrough
6:
5-Year Blustream Warranty
10:
Free USA Shipping
11:
Save 5% w/Check or Wire Transfer
12:
International Shipping - Call
13:
Ships with the Latest Firmware

The Blustream IP300UHDWP-TX is a 4K HDMI and USB-C Video over IP wall plate transmitter that delivers near-zero latency video, USB/KVM, and bi-directional RS-232 over a 1Gb network up to 100m. Supporting PoE or local power, it is compatible with Blustream IP300UHD and IP350UHD systems, making it ideal for commercial and residential AV installations.

Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter Features:

  • Advanced 4K HDMI 2.0, or USB-C video over 1Gb managed network
  • Virtually unlimited system size
  • Extends HDMI or USB-C (DP Alt Mode) up to a distance of 100m over a single CAT cable
  • Manual and / or auto source switching of inputs
  • Supports up to 4K UHD 60Hz 4:4:4 via HDMI and USB-C connections
  • Supports HDR & HDR10+
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Advanced signal management for independent routing of RS-232, audio and video
  • USB-B Host connection for KVM connectivity from the HDMI or USB-C video connections*
  • PoE (Power over Ethernet) to power Blustream products from PoE switch
  • Local 24V power supply (should Ethernet switch not support PoE) - PSU sold separately (part code: PS241-2PH)
  • HDCP2.2 compliant with advanced EDID management
  • Compatible with Blustream IP300UHD-TX/RX and IP350UHD-TX / RX products
  • Dual US Decora faceplate surround and backbox compatibility
  • Our IP300 Series Video over IP system features flexible deployment options including:
    • Matrix distribution (requires 1Gb network switch)
    • Video wall (requires 1Gb network switch)
    • One-to-one HDMI extender (no network switch required)
    • One-to-many HDMI extender (no network switch required)

Why not buy this Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter from HDTV Supply today?

Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter Specifications:

  • Video input: 1 x HDMI Type A, female, 1 x USB Type C female
  • Video output: 1 x LAN RJ45 connector
  • Audio input: 1 x 3.5mm stereo jack
  • Ethernet port: 1 x LAN RJ45 connector
  • USB-C Charge port: 1 x USB Type C female
  • USB/KVM Port: 1 x USB-Type B
  • RS-232 serial port: 1 x 3-Pin Phoenix connector
  • Debug Mode: 2-step switch
  • Casing Dimensions (W x H x D): 90mm x 106mm x 52mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 115mm x 115mm x 6mm
  • Backbox Mounting Depth: 45mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
  • Power Supply: PoE / 24V 1A DC (PSU: PS241-2PH - sold separately)

Why not buy this Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter from HDTV Supply today?

Blustream IP300UHDWP-TX User Manual

Blustream IP300UHDWP-TX Datasheet

Why not buy this Blustream IP300UHDWP-TX 4K 60Hz 4:4:4 HDMI & USB-C Video over IP Wall Plate Transmitter from HDTV Supply today?

What video inputs does the IP300UHDWP-TX have?

A: It has one HDMI Type A input and one USB‑C input (USB Type C female).

How is the unit powered and is a power supply included?

A: The transmitter supports PoE or local 24V power, and the local 24V PSU is sold separately (PS241-2PH).

What network connector does the transmitter use to send video over IP?

A: It uses a single LAN RJ45 connector for the 1Gb network output.

Is this transmitter compatible with other Blustream IP300/IP350 products?

A: Yes; it’s compatible with Blustream IP300UHD and IP350UHD systems and IP300UHD-TX/RX and IP350UHD-TX/RX products.

Does the wall plate fit standard Decora faceplates and shallow backboxes?

A: Yes; it supports dual US Decora faceplate surround and lists a backbox mounting depth of 45mm.

Can I send 4K 60Hz 4:4:4 video over a single CAT cable with this unit?

A: Yes; the IP300UHDWP-TX supports up to 4K UHD 60Hz 4:4:4 over a single CAT cable.

Will this work up to 100 meters over Ethernet?

A: Yes; it extends HDMI or USB‑C video up to a distance of 100m over a single CAT cable on a 1Gb network.

Can I use the USB-B port for KVM with an HDMI or USB-C source?

A: Yes; a USB‑B host connection is provided for KVM connectivity from the HDMI or USB‑C video connections.

Do I need a 1Gb managed network switch for matrix or video wall setups?

A: Yes; matrix distribution and video wall modes require a 1Gb network switch.

Can I use this as a one-to-one or one-to-many HDMI extender without a switch?

A: Yes; the IP300 series supports one‑to‑one and one‑to‑many HDMI extender operation without a network switch.
