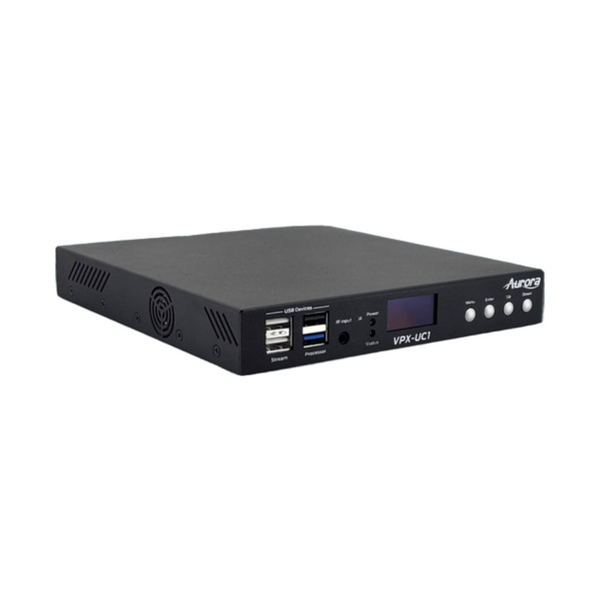

This Aurora Multimedia VPX-UC1 Ultra 4K60 1G Unified Communication AVoIP Transceiver with 8-Core 2.4GHz Processor and 8K60 Dual HDMI Outputs.
The VPX-UC1 Ultra provides the most advanced 1G IP Streaming Unified Communications solutions on the market utilizing Aurora’s new MimixTM CODEC technology. MimixTM compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) latency and seamless switching for fast lag free content. The combined 8 Core 12 Android Processor allows any Android application to be run and combined with the streaming content as a source. Perfect for UC and Digital Signage applications, the VPX-UC1 Ultra sets a new standard in price and performance.
Aurora Multimedia VPX-UC1 Ultra 4K60 1G Unified Communication AVoIP Transceiver Features:
- Configure as Encoder or Decoder
- Zero Frame Latency (1.78ms)
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- HDMI 2.0b, HDCP 2.2
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Scaling, Seamless Switching & Video Wall with Rotation
- MJPEG Preview up to 720p30
- 2.5G LAN PoE+ and 1G SFP for Fiber or 2nd RJ-45
- 2 HDMI Outputs, 1 HDMI Input
- Line In/Out Stereo
- RS-232 Serial Port and IR (In/Out)
- Channel Mapping with On-Screen Preview
- Integrated Web Server for Configuration
- USB 2.0 Ports for Cameras, HID Devices, Mass Storage, etc.
- Dante® 2/8 Ch Audio License Options & Dante Controller
- Rack and Under Table Mounting
- Processor:
- 8 Core 2.4GHz Processor • Android 12 OS
- 1TB SSD Option
- 3 USB 3.1
- Dual 8K60 HDMI Outputs • ReAX Control Engine
- Works with Zoom®, Teams®, WebEx®, Microsoft® 365, and any other Android App.
- AI Option:
- 6TOP NPU
- Gender, Age and Emotion Prediction
- People Counting
Why not buy this Aurora Multimedia VPX-UC1 Ultra 4K60 1G Unified Communication AVoIP Transceiver today?
Aurora Multimedia VPX-UC1 Ultra 4K60 1G Unified Communication AVoIP Transceiver Specifications:
- Rackmountable - Yes
- Warranty - Yes
- Spec Sheet available - Yes
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Active Power: 8 Watt
- DC Voltage: 48 Volts
- Height: 1.09 in
- Length: 7 in
- Width: 7.44 in
- Product Weight: 1 lbs
- Color: Black
- Processor: Android 12, 8-Core 64-bit ARM Processor 2.4GHz with 6TOP NPU
- Memory: 32GB FLASH with 4GB RAM & (Up to 1TB SSD Expansion)
- USB Ports: 2 USB 3.1 Type A, 1 Type-C
- HDMI Outputs: 2 (HDMI 2.1, HDCP 2.3) Up to 8K60
- Compression: Mimix™ 13:1
- Latency: 0 Frames (1.78ms)
- HDMI Inputs: 1 (HDMI 2.0b, HDCP 2.2)
- Encryption: AES 256
- Audio Analog: Stereo Line In/Out (3.5mm TRS)
- 1G Ethernet: RJ-45 and SFP
- LAN: RJ-45 10/100/1000M PoE
- Video Bandwidth: 600MHz (Up to 4K2K 4:4:4 at 60Hz)
- Audio Support: Up to 12 Channels
- Video Stream Bandwidth: 10Mbps – 800Mbps (4K60 4:4:4)
- USB bandwidth: 200Mbps (Camera), 160Mbps (HID/Mass Storage Devices)
- RS-232: Up to 115k Baud (3.5mm TRS)
- IR: Bi-Directional (3.5mm TRS)
- USB Connector: 1 USB 2.0 Type C, 2 USB 2.0 Type A
- Options: Dante® 2Ch/8Ch
- Interface: IR or Keyboard via OSD, Web Server
- Mounting: Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
- Storage Temperature: -20~60o C [-4~140o F]
- Relative Humidity: 20~90% RH [No Condensation]
Why not buy this Aurora Multimedia VPX-UC1 Ultra 4K60 1G Unified Communication AVoIP Transceiver today?
Aurora Multimedia VPX-UC1 Ultra Installation Guide
