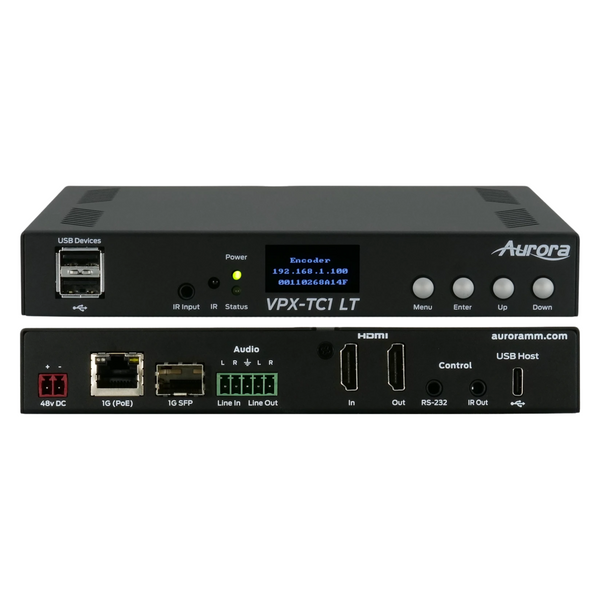

Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box with No Tariffs

Aurora Multimedia

Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box
$1,298.00

10% Discount. Apply Code 10percentOff at Checkout!

Part Number:
VPX-TC1-LT
Availability:
In Stock
1:
HDMI 2.0b, HDCP 2.2
2:
Seamless Switching
3:
2 USB 2.0 for Cameras
4:
Low Power Fanless Design
5:
Free USA Shipping
6:
Aurora Factory Warranty
7:
TAA Compliant
8:
Made in USA
9:
5-Year Warranty

This Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora's new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K30 4:4:4 over 1G networks. It has only one frame (16.6ms) of latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1 uses as little as 8 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. When the VPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the VPX-TC1 is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer (100Mbps) for memory sticks & cameras. Each VPX-TC1 USB feature can also be set as a host or a device. To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features. Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1.

This product is tariff-free, offering a more budget-friendly and cost-efficient solution for your AV installations.

Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC Features:

  • Configure as Encoder or Decoder
  • 4K60 4:4:4 UHD 120m over 1G CAT 5e
  • HDMI 2.0b, HDCP 2.2
  • HDR10, HDR10+, Dolby Vision
  • LPCM up to 12-channels, Dolby Digital Plus, DolbyTrueHD DTS HD Master Audio & ATMOS.
  • 12 bits color depth processing, 16bits OSD
  • Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
  • One Frame Latency (16.6ms)
  • Low Power Fanless Design
  • Seamless Switching
  • MJPEG Preview at up to 30 frames
  • Video Wall with Image Rotation
  • 1G LAN PoE and SFP for Fiber or 2nd RJ-45
  • 2 HDMI Inputs, 1 HDMI Output
  • Line In/Out Stereo
  • RS-232 Serial Port and IR (In/Out)
  • Channel Mapping with On-Screen Preview & EPG
  • Integrated Web Server for Configuration
  • 2 USB 2.0 for Cameras
  • 3 USB 2.0 for HID Devices, Mass Storage, etc.
  • Dante 2/8 Ch Audio License Options & Dante Controller
  • Rack and Under Table Mounting

Why not buy this Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC today?

Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC Specifications:

  • Compression: Mimix 8:1
  • Latency: 1 Frame (16.6ms)
  • HDMI Inputs: 2 (HDMI 2.0b, HDCP 2.2)
  • HDMI Outputs: 1 (HDMI 2.0b, HDCP 2.2)
  • Encryption: AES 256
  • Analog Audio: Stereo Line In/Out (3.5mm TRS)
  • 1G Ethernet: RJ-45 and SFP
  • LAN: RJ-45 10/100/1000 PoE
  • Video Bandwidth: 600MHz
  • Video Support: Up to 4K2K 4:4:4 @ 60Hz
  • Audio Support: Up to 12 Channels
  • RS-232: Up to 115k Baud (3.5mm TRS)
  • IR: Bi-Directional (3.5mm TRS)
  • USB Connector: 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A
  • Expansion Port: Danter 2Ch/8Ch and ReAX
  • Interface: IR or Keyboard via OSD, Web Server
  • Housing: Black Aluminum Enclosure
  • Dimensions: 6.97" x 5.93" x 1.04"
  • Weight: 1lbs
  • Mounting: Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
  • Power Supply: 48v DC (2 Pin Euro) or PoE+ (LAN)
  • Power Consumption: 8 Watts, up to 12.9 Watts with USB
  • Operating Temperature: 32~104°F
  • Storage Temperature: -4~140°F
  • Relative Humidity: 20~90% RH [No Condensation]

Why not buy this Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC today?

Aurora Multimedia VPX-TC1-LT User Guide

Aurora Multimedia VPX-TC1-LT Specifications

Why not buy this Aurora Multimedia VPX-TC1-LT Next-Gen 4K30 4:4:4 1Gbps AV-over-IP Transceiver Box Utilizing Aurora's Mimix™ CODEC today?

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4×2 — 4 sources to 2 displays
  • 4×4 — 4 sources to 4 displays
  • 8×8 — 8 sources to 8 displays
  • 8×9 — 8 sources to 9 displays
  • 16×16 — 16 sources to 16 displays
  • 16×32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.
