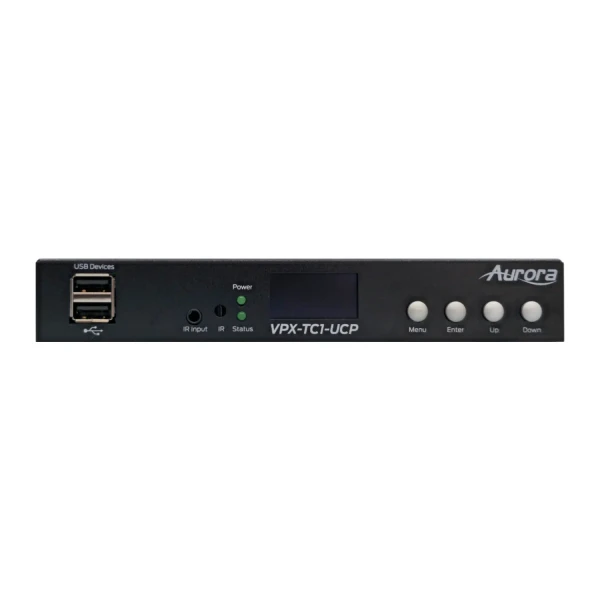

This Aurora Multimedia VPX-TC1-UCP 4K60 1Gbps AV over IP with USB-C Powered Inputs & RJ45 Power Output provides the most flexible 4K 1G AV over IP PoE++ power distribution for its 2 USB-C inputs and RJ-45 PSE output. Up to 90 watts can be used to charge 60 watts on the USB-C port while another USB-C or RJ-45 can power 15 watts.
The optional Aurora small form factor USB-C 240W adaptor will allow 100 watts per USB-C port and 15 watts for the RJ-45 PSE port.
Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch.
When the VPX-TC1 transceiver is set up to be a transmitter, the 2 USB-C & 2 HDMI inputs become a source switch, and the HDMI output becomes a potential loop out.
When set up as a receiver, a user can select the local HDMI inputs or an IP source.
Seamless switching of the sources further enhances the presentation.
Regardless of how the VPX-TC1 is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante enabled device.
The USB is also flexible, working as a KVM and/or a high-speed data transfer (270Mbps) for memory sticks & cameras. Each VPX-TC1 USB feature can also be set as a host or a device.
To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-UCP.
Aurora Multimedia VPX-TC1-UCP 4K60 1Gbps AV over IP with USB-C Powered Inputs & RJ45 Power Output Features:
- 1G LAN PoE PD, 1G LAN PoE 15 Watt PSE and SFP for Fiber
- 2 USB-C Inputs with up to 100 Watt Power
- 2 HDMI Inputs, 1 HDMI Output
- Configure as Encoder or Decoder
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- Zero Frame Latency (1.78ms)
- HDMI 2.0b, HDCP 2.2
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Low Power Fanless Design
- Scaling & Seamless Switching
- MJPEG Preview up to 720p30
- Video Wall with Image Rotation
- Line In/Out Stereo
- RS-232 Serial Port and IR (In/Out)
- Channel Mapping with On-Screen Preview
- Integrated Web Server for Configuration
- USB 2.0 Ports for Cameras (Front), HID & Mass Storage, etc. (Rear)
- AES67 Included
- Dante 2 Ch Audio License Option
- Rack and Under Table Mounting (Included)
Why not buy this Aurora Multimedia VPX-TC1-UCP 4K60 1Gbps AV over IP with USB-C Powered Inputs & RJ45 Power Output from HDTV Supply today?
Aurora Multimedia VPX-TC1-UCP 4K60 1Gbps AV over IP with USB-C Powered Inputs & RJ45 Power Output Specification
| Compression | Mimix 13:1 |
| Latency | 0 Frame (1.78ms) with Ultra Low Latency Mode |
| USB-C Video Inputs | 2 up to 100 Watts for Charging |
| USB-C Power Input | 100 Watts to 240 Watts |
| HDMI Inputs | 2 (HDMI 2.0b, HDCP 2.2) |
| HDMI Outputs | 1 (HDMI 2.0b, HDCP 2.2) |
| Encryption | AES 256 |
| Analog Audio | Stereo Line In/Out (3.5mm TRS) |
| 1G Ethernet | 1 RJ-45 90 Watt PD, 1 RJ-45 15 Watt PSE, and SFP |
| LAN | Two RJ-45 10/100/1000 PoE |
| Video Bandwidth | 600MHz |
| Video Support | Up to 4K2K 4:4:4 @ 60Hz |
| Audio Support | Up to 12 Channels |
| USB Bandwidth | 270Mbps (Camera) 160Mbps (HID/Mass Storage Devices) |
| RS-232 | Up to 115k Baud (3.5mm TRS) |
| IR | Bi-Directional (3.5mm TRS) |
| USB Connector | 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A |
| Options | Dante® 2Ch License |
| Interface | IR or Keyboard via OSD, Web Server |
| Housing | Black Aluminum Enclosure |
| Dimensions | 180 x 189 x 28mm [7.09” x 7.40” x 1.10”] |
| Weight | .453kg [1lbs] |
| Mounting | Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount |
| Power Supply | PoE++ or USB-C 240 Watt (Sold Separately) |
| Power Consumption | 8 Watts, up to 240 Watts with USB |
| Operating Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
