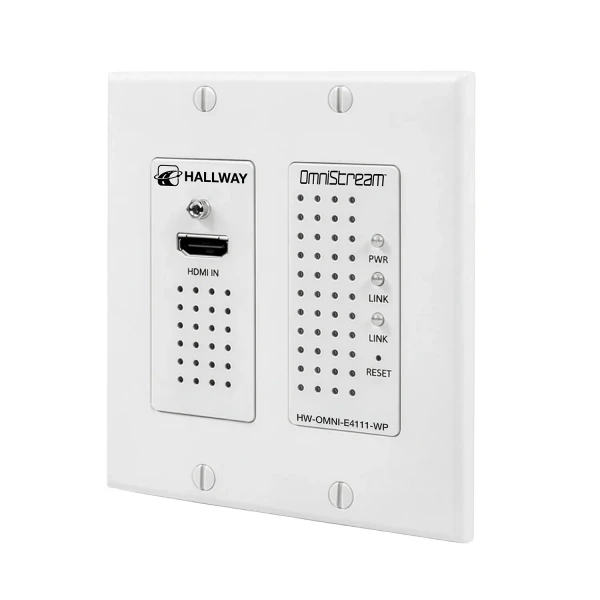

This Atlona HW-OMNI-E4111-WP OmniStream AVoIP Encoder Wall Plate is a networked AV encoder for HDMI sources up to 4K/60 UHD and HDR, plus embedded audio.
It features a US two-gang wall plate form factor with interchangeable black and white wall plates and faceplates, enabling discreet installation on a wall, in furniture, or in a floor box.
Powered by the VCx codec, it delivers 4K/60 UHD with artifact-free presentation and ultra-low latency, with dual encoding engines for simultaneous 4K and 1080p streams.
Powered exclusively by PoE, the HW-OMNI-E4111-WP requires no local AC outlet. Compatible with any HW-OMNI decoder.
Includes both white and black covers.
READ MORE
Atlona HW-OMNI-E4111-WP OmniStream AVoIP Encoder Wall Plate Feature:
- 4K/60 4:4:4 encode with VCx codec - artifact-free image quality and ultra-low latency (<1 frame).
- HDR support: HDR10, HLG, and Dolby Vision at 60 Hz.
- US two-gang wall plate form factor - interchangeable black and white plates and faceplates included.
- Dual encoding engines - simultaneous 4K/60 4:4:4 (Encoder 1) and 1080p (Encoder 2) streams.
- HDCP 2.2 compliant; AES-128 encrypted stream delivery.
- PoE (IEEE 802.3af) powered - no local AC required; optional 48V external supply.
- IEEE 802.1x network authentication; HTTPS, SSH, Telnet, WebSocket/TLS management.
- AES67-compatible audio; simultaneous OmniStream and AES67 streaming.
- Thumbnail preview of encoded streams (320x180px, 2-second update) for source monitoring.
- Half-width rack enclosure with front-to-rear temperature-controlled airflow.
- NDAA Section 889 and TAA compliant.
Why not buy this Atlona HW-OMNI-E4111-WP OmniStream AVoIP Encoder Wall Plate from HDTV Supply today?
Atlona HW-OMNI-E4111-WP OmniStream AVoIP Encoder Wall Plate Specifications:
- Video
- Signal: HDMI
- Copy Protection: HDCP 2.2
- UHD/HD/SD Resolutions: 4K/60/50/30/25/24 Hz; 1080p; 1080i; 720p; 576p/i; 480p/i
- VESA Resolutions: 2560×1600, 1920×1200, 1920×1080 (and others) @ 60 Hz
- Color Space: YUV, RGB
- Encoding Density: Dual encoding engine with independent scalers
- Compression Format: VCx
- Video Quality Mode: User-selectable: PC Application or Video mode
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDR Formats: HDR10, HLG, Dolby® Vision™
- Max Bit Rate: Configurable up to 900 Mbps (shared between both engines)
- Scaler — Encoder 1: Up and down, 3840×2160 max
- Scaler — Encoder 2: Up and down, 1920×1080 max
- Latency: <0.5 frame (e.g. < 8ms @ 1080p/60); <1.5 frames in Fast Switching mode
- Audio
- Pass-Through Formats: LPCM 2.0/5.1/7.1; Dolby® Digital, TrueHD, Atmos®; DTS®, DTS-HD
- Down-Mixing: Multichannel LPCM to 2-channel LPCM
- Sample Rate: 32 kHz – 192 kHz
- Bit Depth: Up to 24-bit
- AES67: Supported; simultaneous OmniStream and AES67 streaming; up to LPCM 7.1
- Network & Protocols
- Video Streaming: RTP
- Audio Streaming: RTP (up to 7.1 ch); AES67
- Addressing: DHCP, Static
- Encryption: AES-128
- QoS: RFC 2475
- Discovery: Multicast DNS, LLDP, SAP
- Management: HTTPS, SSH, Telnet, WebSocket with TLS
- Authentication: IEEE 802.1x: PEAP/MSCHAPv2 or EAP-TLS
- IP Multicast: IGMPv2 and IGMPv3
- Connections
- HDMI Input: 1 × Type A, 19-pin, female, locking
- Ethernet: 1 × RJ45, 10/100/1000 Mbps
- Power
- PoE: IEEE 802.3af (only power source — no external supply option)
- Consumption: Up to 12 W (40.9 BTU/h)
- Mechanical
- Dimensions (H × W × D): 4.19" × 3.46" × 1.72" (106.5mm × 88mm × 43.65mm)
- Weight: 0.46 lbs (0.21 kg)
- Included Accessories: Black and white wall plates and faceplates
- Form Factor: US 2-gang wall plate
- Environmental
- Operating Temperature: 14°F to 122°F (-10°C to +50°C)
- Storage Temperature: -14°F to 140°F (-10°C to +60°C)
- Humidity: 20% to 95% RH, non-condensing
- Regulatory
- Certifications: CE, FCC, CB, RoHS
- NDAA Section 889: Compliant
- TAA: Compliant
Why not buy this Atlona HW-OMNI-E4111-WP OmniStream AVoIP Encoder Wall Plate from HDTV Supply today?
