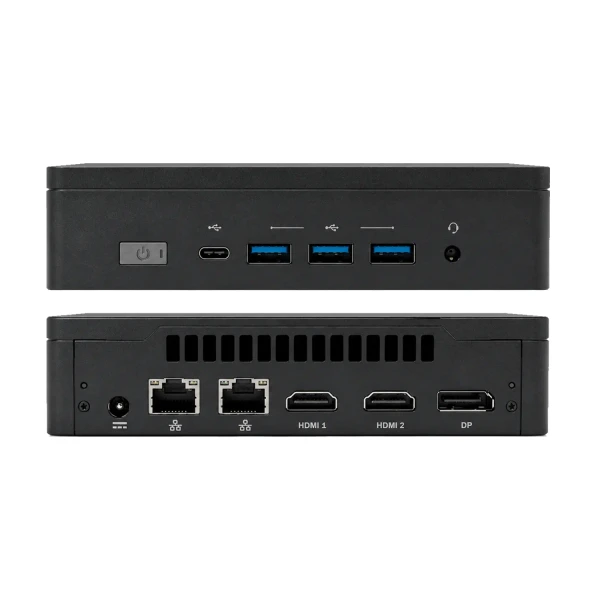

This Atlona AT-VGW-HW-T1 Velocity Gateway for 5+ Rooms is an Atlona Velocity server gateway for multiple rooms of AV system control, room scheduling and device management.
It features a compact enclosure that easily installs into a rack.
With a simple network connection and web browser to access the hardware gateway, an integrator, tech manager, or technician can configure, deploy, and modify control systems, room scheduling touch panels, and AV devices quickly, with no programming necessary.
The Velocity VGW-HW-T1 server gateway supports industry-standard, secure data communications, and feature dual Gigabit Ethernet ports for isolating an AV device LAN from a facility or corporate network.
An innovative, network-based system architecture allows full redundancy and failover with two gateways in operation, maximizing AV system reliability while preventing downtime in mission-critical applications.
Atlona AT-VGW-HW-T1 Velocity Gateway for 5+ Rooms Feature:
- Velocity hardware gateway for AV control, room scheduling, and device management
- Supports 5 rooms of AV control, 10 rooms of scheduling, and up to 500 IP devices
- Up to 5 additional rooms may be added via optional AT-VRL-SW licenses if excess resources are available
- Fast streamlined configuration with an intuitive, browser-based setup and options for pre-configured or custom touch panel user interfaces
- Configurations can easily be duplicated across devices, rooms, and sites
- Create role-based accounts for integrator, client, and AV/IT staff members, each with clearly defined access privileges
- Supports Velocity touch panels for user control as well as BYOD mobile devices at no extra cost
- IP-based device control over the Ethernet network reduces components and simplifies cabling
- Room scheduling server works with a variety of calendar applications including Google Workspace™, Office 365™, Microsoft Exchange®, and Astra Schedule
- Dual Gigabit Ethernet ports for isolating a dedicated AV LAN from the facility or corporate network
- Supports industry-standard, secure data communications through HTTP/2, HTTPS, SSH, SFTP, and WebSockets with TLS and AES-128 encryption
- Control system redundancy with automatic failover, available via primary and backup VGW-HW gateways
- Includes Velocity Device Manager for configuring and managing Atlona devices on the network
- Optional Velocity Premier Services - Remote Gateway (AT-VPS-RG), for remote configuration, management, and control over the Internet
- Atlona’s optional line of VCC IP command converters provide compatibility for devices that require control via RS-232 (AT-VCC-RS232-KIT), IR (AT-VCC-IR3-KIT), or relays / sensors (AT-VCC-RELAY-KIT)
- Rack-mountable 1U, half rack width enclosure
- Includes mounting plates and screws, Long rack ear, Short rack ear, and external universal power supply
Why not buy this Atlona AT-VGW-HW-T1 Velocity Gateway for 5+ Rooms from HDTV Supply today?
Atlona AT-VGW-HW-T1 Velocity Gateway for 5+ Rooms Specifications:
- IP
- NIC: Two Network Interface Controllers (NIC) – supports segregated AV and facility LANs
- Ports: 2 x RJ45 ports, one to each NIC
- Standards and Protocols: DHCP, HTTP, HTTPS, SFTP, SMTP, SNMP, SSH, TCP, UDP, IEEE 802.1x
- Ethernet Speed: 10/100/1000 Mbps
- Addressing: DHCP, static
- Environmental (Fahrenheit)
- Operating: 32 to 122°F
- Storage: -4 to 140°F
- Humidity (RH): 20% to 60%, non-condensing
- Power
- Consumption: 90W
- BTU/h: 307
- Supply: Input: AC100~240V 50/60Hz, Output: DC 19V / 4.74A
- Dimensions (H x W x D) (Inches)
- Unit: 1.69 x 8.56 x 4.65
- Power Supply: 1.25 x 1.88 x 4.25
- Weight (Pounds)
- Device: 1.85
- Compliance
- TAA: No
- Certification
- Device: CE, FCC, RoHS, ICES B, UKCA, China RoHS, C-Tick/RCM
- Supply: KC, UL, ETL, RCM, CE, FCC, TUV Safety, CCC, EAC, BSMI, PSE
