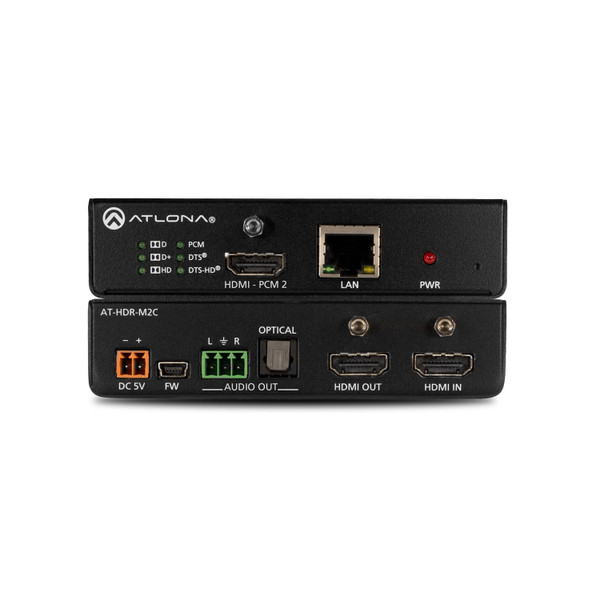

This Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. Part of the comprehensive family of Atlona 4K HDR integration products, it features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as unbalanced analog and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant.
It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through Velocity™ Device Manager, the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.
The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays.
Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter Feature:
- HDMI audio de-embedding and multi-channel audio downmixing
- De-embeds HDMI audio with or without connection to a display or other destination
- Provides integration of HDMI audio sources into whole-house and other audio systems
- Downmixes multi-channel PCM, Dolby, and DTS formats to stereo audio
- Extracts, decodes, downmixes, and converts digital multi-channel bitstreams to two-channel signals
- Supports PCM, Dolby® Digital, Dolby Digital Plus™, Dolby TrueHD, DTS® Digital Surround™, and DTS-HD Master Audio™
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling and HDR support
- Ideal for 4K/UHD and HDR-capable sources and displays
- Compatible with 4K HDR10 and Dolby Vision® @ 60 Hz
- Supports HLG (Hybrid Log-Gamma) for 60p HDR broadcast services
- HDCP 2.2 compliant
- Adheres to latest specification for High-bandwidth Digital Content Protection
- Allows protected content stream to pass between devices
- Flexible audio outputs
- Delivers downmixed audio to HDMI, TOSLINK digital audio, and analog audio outputs
- Provides options for integration with displays and audio systems
- Passes through the HDMI input with no downmixing
- Volume and tone adjustments
- Adjustable output volume, bass, and treble via web GUI or Velocity Device Manager
- Eliminates the need for an external DSP for gain and tone control
- EDID management
- Manages EDID communications with the source through a display’s EDID or internally stored EDID
- Ensures desired audio formats and video resolutions are provided to the AV system
- IP control
- Ready for integration with Atlona Velocity™ and third-party control systems
- Provides control of audio volume, bass, treble, and EDID management
- Intuitive GUI-based configuration using integrated web server
- Menu-based configuration of network settings, audio, and EDID management
- Enables fast configuration and troubleshooting from a mobile device or PC
- Centralized management with Velocity Device Manager
- Network-based configuration and management of Atlona IP-controllable products and systems
- Supports configuration and firmware updates across facilities, buildings, enterprises, or residences
- Available as part of Velocity control systems or as free virtual machine software download
- Field-updatable firmware
- Firmware updates supported via web GUI or Velocity Device Manager
- USB port available for firmware updates
- Front panel LEDs
- LED indicators provide power status and audio format identification
- Supports setup and troubleshooting
- Low-profile enclosure
- 1 inch (25 mm) high design
- Suitable for rack installation and confined spaces
- Keeps devices out-of-sight in public spaces
- Included accessories
- User guide
- Surface mounting brackets
- External universal power supply
- Captive screw connectors
Why not buy this Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter from HDTV Supply today?
Atlona AT-HDR-M2C 4K HDR Multi-Channel Audio Converter Specifications:
- Video
- Signal Type: HDMI
- HDCP: 1.4
- Pixel Clock: 300MHz
- UHD / HD / SD
- 4096×2160@60/50/30/25/24Hz
- 3840×2160@60/50/30/25/24Hz
- 2048x1080p
- 1920x1080p@60/59.94/50/30/29.97/25/24/23.98Hz
- 1920x1080i@60/59.94/50Hz
- 1280x720p@60/59.94/50Hz
- 720x576p
- 720x576i
- 640x480p
- 640x480i
- VESA
- 1920×1200
- 1680×1050
- 1600×1200
- 1440×900
- 1400×1050
- 1366×768
- 1360×768
- 1280×1024
- 1280×800
- 1152×768
- 1024×768
- 800×600
- 640×480
- Color
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio
- Analog: PCM 2Ch (De-embedded)
- Optical Output: PCM 2Ch (De-embedded)
- HDMI Output: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital Plus™, Dolby TrueHD, DTS-HD Master Audio™
- HDMI – PCM 2: PCM 2Ch
- Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
- Bit Rate: up to 24-bit
- THD+N: < 0.05% @ 1 kHz at maximum level
- SNR: 110.009dB
- Frequency Range: 20Hz to 20kHz
- Bass: +12dB to -15dB @ 20Hz – 20kHz
- Treble: +15dB to -15dB @ 20Hz – 20kHz
- Resolution / HDMI Cable Length
- HDMI @ 60 Hz: 4K / UHD – 6 feet (2 meters); 1080p – 30 feet (10 meters)
- HDMI UHD @ 24 Hz: 4K / UHD – 16 feet (5 meters); 1080p – 50 feet (15 meters)
- Signal
- Bandwidth: 18 Gbps
- CEC: Not Supported
- HDCP: 2.2-compliant
- Temperature
- Operating: 0°C to 50°C / 32°F to 122°F
- Storage: -20°C to 60°C / -4°F to 140°F
- Humidity: 20 to 90% non-condensing
- Power
- Consumption: 6.6W
- BTU/h: 22.5
- Supply: Input: AC 100~240 VAC 50/60Hz
- Output: DC 5V 4A
- Dimensions
- Unit: 1.02 x 4.29 x 5.00 inches / 26 x 109 x 127 millimeters
- Unit with feet/ears: 1.02 x 4.29 x 5.39 inches / 26 x 109 x 137 millimeters
- Power Supply: 1.2 x 2 x 3.2 inches / 30.4 x 50.8 x 81.2 millimeters
- Weight
- Unit: 0.36 kilograms / 0.8 pounds
- Certification
- Device: CE, FCC
- Power Supply: CE, FCC, cULus, RoHS, CCC, RCM
