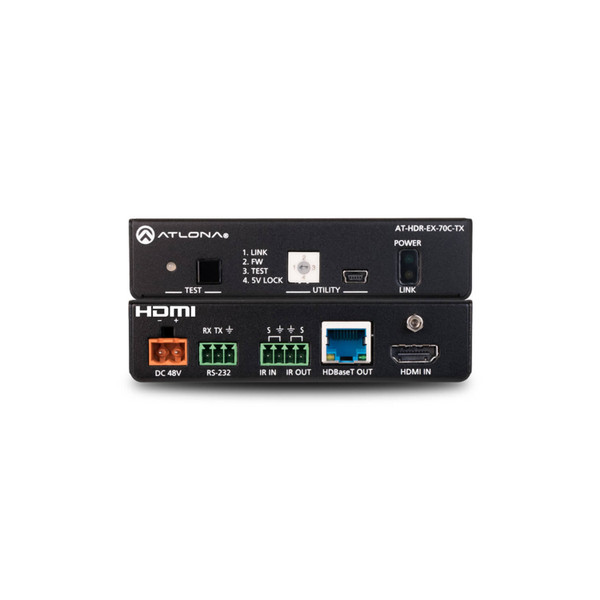

This Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control is a HDBaseT transmitter for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft (40 m) or 1080p up to 230 ft (70 m) over Category 6/6A cable.
The HDR-EX-70C-TX is ideal for use with the AT-HDR-EX-70C-RX receiver for transmitting 4K HDR in point-to-point applications. It can also be used with the AT-UHD-CLSO-824 and AT-UHD-SW-5000ED for transmitting 4K/UHD @ 60 Hz 4:2:0 signals to the switchers from a remote source.
Housed in a compact enclosure, it can be conveniently mounted in furniture, a lectern, or an equipment rack.
Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control Feature:
- HDBaseT transmitter for use with the AT-HDR-EX-70C-RX receiver.
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling.
- Supports HDR10, HLG, and Dolby® Vision HDR formats.
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT.
- HDBaseT output transmits AV, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A.
- Extends bidirectional RS-232 and IR control signals over HDBaseT.
- Provides remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-70C-RX.
- Compliant with HDCP 2.2 for passing protected content between devices.
- Multi-channel audio pass-through.
- HDBaseT link status testing allows verification of cable, termination, and link quality for more reliable installations.
- Front panel Power and Link status LEDs.
- Front panel USB port for firmware updates.
- Rear panel connections simplify wire management and save installation time.
- Compact enclosure can be mounted in furniture, a lectern, or an equipment rack.
- Compatible with AT-UHD-CLSO-824 and AT-UHD-SW-5000ED switchers for transmission of 4K/UHD @ 60 Hz 4:2:0 signals.
- Included accessories: power supply, surface mount hardware, and captive screw connectors.
Why not buy this Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control from HDTV Supply today?
Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control Specifications:
- Video
- Signal:
- Input – HDMI
- Output – HDBaseT
- Copy Protection: HDCP 2.2
- Pixel Clock: 600 MHz
- UHD/HD/SD:
- 4096×2160 @ 24/25/30/50/60Hz
- 3840×2160 @ 24/25/30/50/60Hz
- 1920x1080p @ 23.98/24/25/29.97/30/50/59.9/60Hz
- 1920x1080i @ 25/29.97/30Hz
- 720p @ 50/59.94/60Hz
- 576p @ 50Hz
- 576i @ 25Hz
- 480p @ 59.96/60Hz
- 480i @ 30Hz
- VESA (All resolutions are 60Hz):
- 2560×2048
- 2560×1600
- 2048×1536
- 1920×1200
- 1680×1050
- 1600×1200
- 1440×900
- 1400×1050
- 1280×1024
- 1280×800
- 1366×768
- 1360×768
- 1152×864
- 1024×768
- 800×600
- 640×480
- VESA 21:9(1):
- 2560×1080 @ 30 Hz 4:4:4
- 2560×1080 @ 60 Hz 4:4:4
- 3440×1440 @ 30 Hz 4:4:4
- 3440×1440 @ 50 Hz 4:4:4
- 3840×1600 @ 30 Hz 4:4:4
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDR: Up to 4K HDR10 @ 60 Hz, 4K Hybrid-Log Gamma (HLG) @ 60 Hz, and 4K Dolby® Vision @ 60 Hz(2)
- Signal:
- Audio
- HDMI / HDBaseT
- Pass-Through Formats:
- PCM 2.0
- LPCM 5.1
- LPCM 7.1
- Dolby® Digital
- Dolby Digital Plus
- Dolby TrueHD
- Dolby Atmos®
- DTS® Digital Surround
- DTS-HD Master Audio
- DTS:X®
- Bit Depth: Up to 24 bits
- Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Resolution / Distance
- 4K/UHD Feet | 4K/UHD Meters | 1080p Feet | 1080p Meters
- HDMI IN/OUT: 15 | 5 | 30 | 10
- CAT5e: 115 | 35 | 200 | 60
- CAT6/6a/7: 130 | 40 | 230 | 70
- Control
- RS-232: Pass through, up to 115200 baud
- IR: Pass through, 30kHz to 60kHz
- Buttons and Indicators
- Buttons:
- TEST – 1 x momentary, tact-type
- Indicators:
- POWER – 1 x LED, green
- LINK – 1 x LED, yellow
- TEST – 1 x LED, multi-colored
- Connectors
- HDMI IN: 1 x Type A, 19-pin female
- HDBaseT OUT: 1 x RJ45, female
- FW – Firmware: 1 x Micro-A USB
- PWR: 1 x 2-pin 48V captive screw connector
- RS-232: 1 x 3-pin captive screw connector
- IR: 1 x 4-pin captive screw connector
- Temperature
- Operating: 32 to 122°F (0 to 50°C)
- Storage: -4 to 140°F (-20 to 60°C)
- Humidity (RH): 20% to 90%, non-condensing
- Power
- Consumption: 6.07 W
- BTU/h: 20.7
- Input: 100 – 240 V AC, 50/60 Hz
- Supply: 48 V DC, 0.83 A
- Dimensions (H x W x D)
- Device: 1.02 x 4.29 x 5 in (26 x 109 x 127 mm)
- Power Supply (AT-PS-48083-C): 1.42 x 1.81 x 4.41 in (36 x 46 x 112 mm)
- Weight
- Device: 0.85 lb (0.39 kg)
- Certification
- Device: CE, FCC
- Power Supply: CE, FCC, cULus, RoHS, CCC, RCM
- Compliance
- NDAA-899: Yes
- TAA: Yes
Why not buy this Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control from HDTV Supply today?
Atlona AT-HDR-EX-70C-TX User Manual
Atlona AT-HDR-EX-70C-TX Datasheet
Why not buy this Atlona AT-HDR-EX-70C-TX 4K HDR HDBaseT Transmitter With Control from HDTV Supply today?
What maximum cable distances does the AT-HDR-EX-70C-TX support for 4K HDR and 1080p over Cat6/6A?
A: Over Category 6/6A cable the transmitter supports up to 130 ft (40 m) for 4K HDR and up to 230 ft (70 m) for 1080p.
Which HDR formats and 4K modes does this transmitter support?
A: It supports HDR10, Hybrid-Log Gamma (HLG), and Dolby Vision, including up to 4K HDR @ 60 Hz where the system supports the required Dolby Vision low-latency mode per the footnote.
Is HDCP-protected content supported through the unit?
A: Yes; the transmitter is compliant with HDCP 2.2 for passing protected content between devices.
What chroma subsampling and color depth are supported when extending 4K video?
A: The unit supports 4:4:4, 4:2:2, and 4:2:0 chroma subsampling and color depths of 8‑, 10‑, and 12‑bit.
How does the HDBaseT cable test and diagnostics work and are there any compatibility limits?
A: The transmitter provides a front-panel TEST button and a Utility mode that runs link and pair-quality tests, but the TEST function only works when paired with the AT-HDR-EX-70C-RX receiver.
What control signals are passed over the HDBaseT link and what are their limits?
A: The transmitter extends bidirectional RS‑232 (pass-through up to 115200 baud) and IR (pass-through, 30 kHz–60 kHz) over HDBaseT.
Will the AT-HDR-EX-70C-TX provide power to a compatible receiver over HDBaseT?
A: Yes; the transmitter can provide remote power over HDBaseT to compatible receivers such as the AT-HDR-EX-70C-RX.
If I want a consistent HDMI handshake when devices are flaky, is there a mode to lock 5V and HPD signals?
A: Yes; the Utility dial includes a 5V LOCK mode that sets the +5V and HPD signals high on both transmitter and receiver to keep source/display connections consistent.
