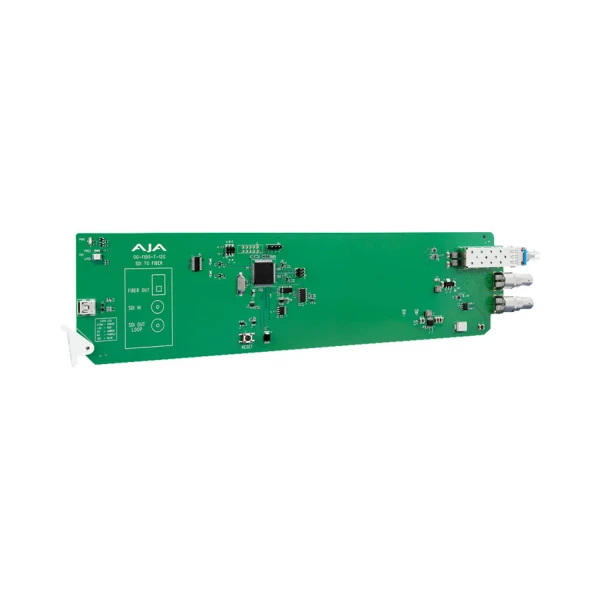

This AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter is a state of the art, openGear compatible 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable.
The 12G-SDI input is reclocked with best in class input jitter tolerance. A reclocked looping 12G-SDI output is also provided.
The OG-FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows, macOS, and Linux, offering remote control and monitoring over a PC or local network.
AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter Features:
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Inputs: 1x 12G-SDI BNC with SDI Loop out
- Outputs: 1x 12G-SDI BNC; 1x Single Mode ST Connector
- Monitor via openGear DashBoard software
- Support for HDR - High Dynamic Range video
- Supports pass-through of SDI metadata, including HDR
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
- Nominal Wavelength; Tx: 1310 nm (typ)
- Power: 3 watts Max
- Hot-swappable
- Appropriate Fiber SFP included
- Rear I/O card included
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Why not buy this AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter from HDTV Supply today?
AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter Specifications:
- Video Formats: 270 Mbps - 12 Gbps, format agnostic
- Video Input Digital
- 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
- Video Output Digital
- 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082
- 1-channel 12G-SDI Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082
- Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max)
- Optical Power: -5 dBm (Min), 2 dBm (Max)
- Extinction Ratio: 3.5 (Min)
- Reclocking:
- 270 Mbps
- 1.483 Gbps
- 1.485 Gbps
- 2.967 Gbps
- 2.970 Gbps
- 5.934 Gbps
- 5.940 Gbps
- 11.868 Gbps
- 11.880 Gbps
- Auto Select
- All other rates are passed through and not reclocked
- User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
- Size:
- openGear standard form factor, front slot and rear card
- Two slots required for each card
- Weight: 0.5 lb (0.3 kg)
- Power: openGear frame compatible, 3.0 watts max per card
- Environment
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
