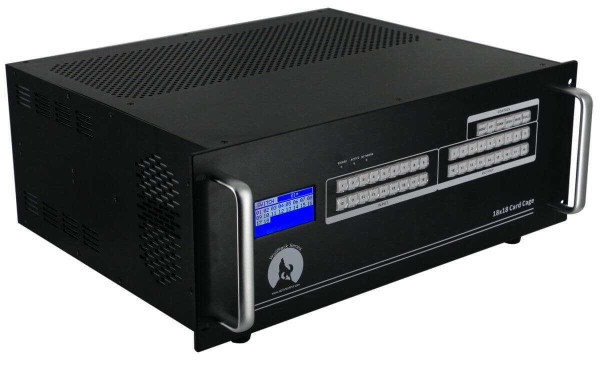

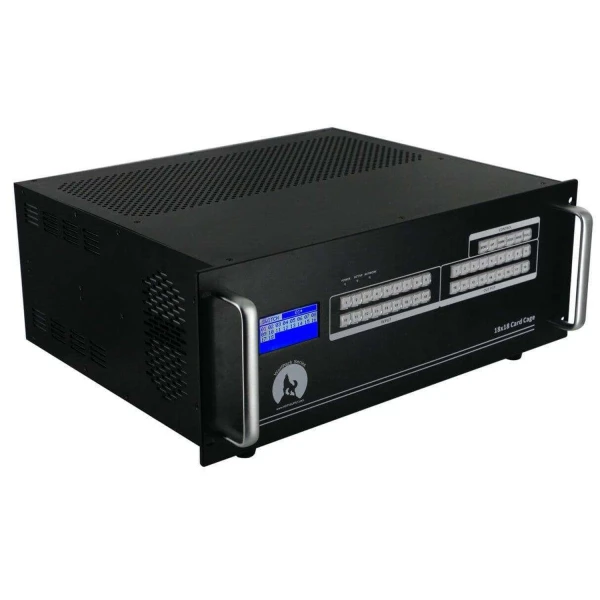

HDTV Supplys WolfPack 4K/30 6x6 HDMI Matrix Switcher
is a pre-configured integrated HDMI video and HDMI audio modular HDMI matrix switcher. The chassis backplane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs or any combination. The core of the 6x6 HDMI Matrix Switcher consists of an 18x18 Modular Matrix chassis and its highly configurable backplane that supports 18 - HDMI input cards and 18 - HDMI output cards. The 6x6 HDMI Matrix Switcher is also 4K at 30 Hz compliant with a 4:2:0 colorspace.
You can control the 6x6 HDMI Matrix Switcher via Front Buttons or optional 7" Touch Screen, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App.
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.
Reasons that sets our WolfPack™ HDMI Modular Matrix Switchers apart from others:
- 4K/30 for the best picture
- 40 - Preset scenes that can be Saved and Recalled
- Optionally uses the best HDBaseT HDMI to CATx extenders, not cheap H.264 with fuzzy compressed video
- Closed Caption (CC) Pass-through
- Fast switching speed
- No latency
- Control via an iPad, Android, Web Browser (WEB GUI), RS232 & Front Buttons or optional 7" Touch Screen
- 2-Power Supplys w/automatic switch-over if a problem occurs
- 2-Year WolfPackCare™ Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
WolfPack 4K 6x6 HDMI Matrix Switcher Configuration:
- 1 - 18-card in and 18 card out 4K card cage chassis
- 6 - 1-port 4K HDMI input cards = 6-HDMI inputs
- 6 - 1-port 4K HDMI output cards = 6-HDMI outputs
- 12 - Spare input slots for adding 12-more inputs
- 12 - Spare output slots for adding 12-more outputs
The WolfPack 4K 6x6 HDMI Matrix Switcher manages HDMI input signals for the inputs and outputs. This 4K 6x6 HDMI Matrix Switcher support long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 6x6 HDMI Matrix Router also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
4K 6x6 HDMI Matrix Switcher Feature:
- Chassis size: 18 input and 18 outputs cards
- Input Cards Supported:
- 6 - 4K/30 (4:2:0) female HDMI single port cards = 6 - HDMI inputs
- Output Cards:
- 6 - 4K/30 (4:2:0) female HDMI single port cards = 6 - HDMI outputs
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 1.4 high speed cable
- Input HDMI cable distance: Up to ~50 feet with an AWG24 HDMI 1.4 high speed cable
- Flexible card type design supporting 18 input cards and 18 output cards
- HDCP 1.4 and HDMI 1.4 compliant
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for PC control
- Supports fast switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions that can be chosen and used
- Uses a dual control system
- Control via Web / RS232 and Front Buttons or optional 7" Touch Screen control (no remote control)
The heart of the HDMI inputs is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.Free Android and iOS App:
The IOS App
for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system
to install it directly.
For the Android App
click the following link and download it. Go to Android App for control of this HDMI matrix switch
The 4K 6x6 HDMI Matrix Switchers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
Why not buy this 4K 6x6 HDMI Matrix Switcher today?
