This 4K 60 Hz LHDT Extender to 110 feet with HDCP 2.3, EDID, Audio & IR is AEL version 4K HD extender which is using the advanced LHDT Technology.
It can transmit the 4K HD signal, audio embedded/de-embedded, bi-directional IR and RS232 signal over single STP Cat5e/6/7 cable up to a long distance and only needs to power on one side with the POE function.
It also can can work with other LHDT Technology equipment, such as Sony HDBaseT projector. For the 1080P60Hz resolution, it can transmit to a distance of 70m/220ft(100m/330ft), for 4K60Hz it can up to 35m/110ft(70m/220ft). This extender kit can support the EDID management on the transmitter, compliant with 4K HDMI 2.0 and HDCP2.2.
It can be popularly used in media conferencing room, school, government, cinema and other applications.
NOTE: The LHDT extender supports HDCP 2.3 and when it has a 4K 60 Hz 4:4:4 input the output is 1080p at 60 Hz. When the LHDT extender has a 4K 60 Hz 4:2:0 input the output is 4K 60 Hz 4:2:0.
4K 60 Hz LHDT Extender to 110 feet with HDCP 2.3, EDID, Audio & IR Features:
- Uses the LHDT technology extension over single CAT5e/6/7 cable
- Extend 4K/60(4:2:0) video & IR & RS232 Control
- Transmission distance up to 70/100m 220/330ft(1080P60) or 35/70m 110/220ft(4K60)
- 4K HD2.0 and HDCP2.3
- RS232 and IR signal transmission, POC function
- EDID management and 3.5mm audio embedded on the transmitter
- Support DIP switch scaling and 3.5mm audio de-embedded on the receiver
Why not buy this 4K 60 Hz LHDT Extender to 110 feet with HDCP 2.3, EDID, Audio & IR today?
4K 60 Hz LHDT Extender to 110 feet with HDCP 2.3, EDID, Audio & IR Specifications:
|
Name |
Transmitter |
Receiver |
|
Description |
4K HD 70/100m LHDT Transmitter |

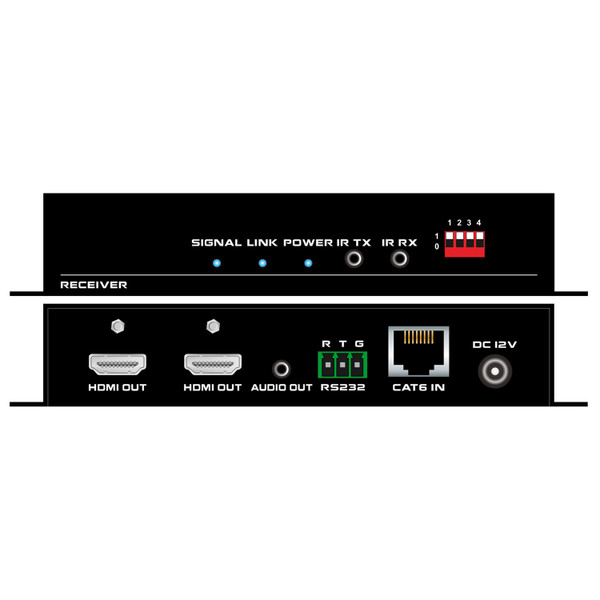

4K HD 70/100m LHDT Receiver |
|
Input Port |
1x4K HD, 1xRS232, 1xR-TX, 1xR-RX |
1xLHDT |
|
Output Port |
1xLHDT, 1x Loop out |
2x4K HD, 1xRS232, 1xR-TX, 1xR-RX |
|
Standard Protocol |
Support 4K HD2.0 and compatible with HDCP2.3 |
|
|
Resolution |
|
|
|
Bandwidth |
10.2Gbps |
|
|
Distance |
1080p60 distances to 220/330 feet, 4K60(4:2:0) distances to 110/220 feet |
|
|
Dimension |
5.98x4x1(Inch)(Tx/ Rx) |
|
|
Weight |
0.35 lbs |
|
|
Power |
AC: 100-240V 50/60Hz DC: 12V 1.5A |
|
|
Consumption |
≤ 10W |
|
|
Work Temp |
32°F ~122°F |
|
|
Storage Temp |
﹣ 04°F ~131°F |
|
Why not buy this 4K 60 Hz LHDT Extender to 110 feet with HDCP 2.3, EDID, Audio & IR today?
