24x64 HDMI Matrix Switch w/VideoWall, Scaling, Separate Audio, WEB GUI & Apps
24x64 HDMI Matrix Switch

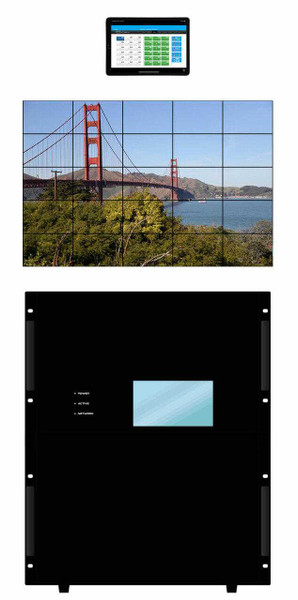

HDTV Supplys WolfPack™ 24x64 HDMI Matrix Switch is an integrated HDMI video and HDMI audio modular HDMI matrix switcher. The chassis backplane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs or any combination with multiple technologies.
The core of the WolfPack 24x64 HDMI Matrix Switch consists of an 80x80 Modular Matrix chassis and it's highly configurable backplane that supports 80 - HDMI inputs and 80 - HDMI outputs. It is also 1080p/60 compliant. You can control the switch via its IOS or Android app, a 10 inch Touch Screen from the front panel, a WEB GUI control or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above. The matrix also has Control4 & Elan drivers.
By having 4-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
Internal Video Wall Processor: The internal Video Wall processor allows you to create dozens of custom video wall layouts via our easy to use WEB GUI.
Separate Embedded Audio In and De-embedded Audio Out: The matrix allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the input cards 3.5mm audio connector and then de-embedding the audio on the output cards 3.5mm audio.
Optional Universal Input and Output cards. The matrix can also supplied with universal adapters for each input & output that converts the DVI connector to HDMI with audio, VGA, composite video & component video.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each card has a 8-pin DIP switch to select multiple resolution settings to conform to your source devices and the destination devices.
Seamless Switching Speed of 100ms (0.1 sec): These Modular Matrix Switchers allow switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The Modular Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly & instantly switch (~100ms) between inputs & outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
The WolfPack Modular HDMI Matrix Routers manage many type of HDMI signals including HDBaseT CATx cabling. These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
The heart of the WolfPack 24x64 HDMI Matrix Switch is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment is working.
Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.
For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.
EDID Explained: The WolfPack 24x64 HDMI Matrix Switchers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
