4K 20x52 HDMI Matrix Switcher

WolfPack

$10,500.00
Part Number:
MM20x52
UPC:
728370335958
Availability:
Usually ships in 1-2 weeks
1:

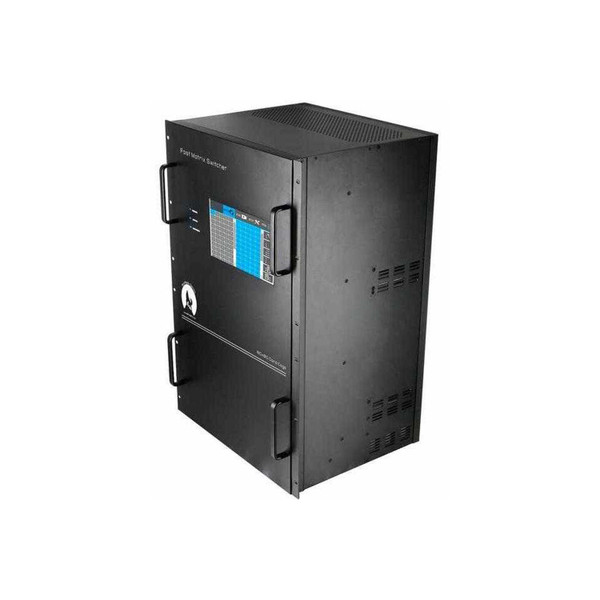

4K 20x52 HDMI Matrix Switcher
2:
WolfPack 4K/30 20x52 HDMI Matrix Switcher
3:
20-4K HDMI Ins & 52-4K HDMI Outs
4:
WEB GUI, RS232, Elan, Control4 & Apps Control
5:
56x56 (16U) Chassis Size with spare slots
6:
40-Programmable Preset Scenes
7:
10 Color Touch Screen Control & Free Tablet"
8:
Need Help Configuring? Call 833-965-3722
9:
Optional Sport Bar Software/Hardware Combo
WolfPack HDMI Switchers HDTV Supplys WolfPack™ 20x52 HDMI Matrix Switcher is an integrated HDMI video and HDMI audio modular HDMI matrix switcher. The chassis backplane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs or any combination with 4K/30 HDMI in and 4K/30 out cards.

The core of the WolfPack 20x52 HDMI Matrix Switcher consists of an 56x56 Modular Matrix chassis (16U) and it's highly configurable backplane that supports 20 - HDMI inputs and 52 - HDMI outputs. It is also 4K/30 compliant. You can control the switch via its IOS or Android app, a 10" Color Touch Screen from the front panel, a WEB GUI control, LAN or the 2-RS-232 serial ports. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above. The matrix also has optional Control4 & Elan drivers.

By having 4-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.

Reasons that sets our WolfPack™ HDMI Modular Matrix Switchers apart from others:

  1. Supports 4K/30 (4X better than 1080p)
  2. 4K 4-Port Input & Output cards are HDMI 1.4, DVI 1.1 & HDCP 1.4 compliant
  3. 40 - Preset scenes that can be Saved and Recalled
  4. Control via an iPad, Android, Web Browser (WEB GUI), LAN, Dual RS232 & 10" Color Touchscreen
  5. Optional Control4 & Elan drivers
  6. Free 7" Tablet
  7. Fast Switching
  8. 2-Power Supplys w/automatic switch-over if a problem occurs
  9. 2-Year Advance Replace Warranty
  10. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
  11. Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio

WolfPack™ WolfPack 20x52 HDMI Matrix Switch Configuration:

  • 1 - 4K/30 56-card in and 4K/30 56 card out card cage (16U)
  • 5 - 4K 4-port input cards = 20-4K HDMI inputs
  • 13 - 4K 4-port HDMI output cards = 52-4K HDMI outputs

These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between different modes or copied from the attached displays.

WolfPack 20x52 HDMI Matrix Switcher Feature:

  • 56 input and 56 outputs Card Cage Chassis (16U)
  • 4K/30 HDMI Compliant (4X better than 1080p)
  • HDCP 1.4 compliant
  • Input HDMI cable distance: ~20 feet AWG24 4K HDMI 2.0 high speed cables
  • Output HDMI cable distance: ~30 feet AWG24 4K HDMI 2.0 high speed cables
  • Flexible card type design supporting 56 HDMI inputs and 56 HDMI outputs
  • Advanced EDID management for rapid integration of sources and displays
  • 10" Color Front-panel Touchscreen for local switching
  • IP controlled via built-in web server and LAN
  • RS-232 Serial interface for remote control via an automation control system
  • Supports resolution exchanges with several resolutions can be chosen and used
  • Hot-pluggable
  • Uses a dual control system
  • Control via Web / RS232 and Touchscreen & more (no remote control)
  • Rack-mountable

The heart of the WolfPack 20x52 HDMI Matrix Switcher is the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment is working.

Why not buy this WolfPack 20x52 HDMI Matrix Switcher today?

20x52 HDMI Matrix HDBaseT Switcher Specs:

  • Chassis Input: 20 - HDMI Inputs
  • Chassis Output: 60 - HDMI Outputs
  • Input/ output impedance: 75 ohms
  • Gain: 0 dB
  • Maximum delay: 5nS (+/- 1nS)
  • Maximum pixel clock: 165 MHz
  • Control: Dual RS-232 control with 9-pin female D connectors
  • Pin Configurations: 2 = TX, 3 = RX, 5 = GND
  • Modular Configuration: Up to 80 inputs & 80 outputs
  • Input cable distance: ~20 feet AWG22 HDMI 1.4 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI and Display Port: up to 4K/30
  • Control: TCP/IP, Dual RS232 and front color screen
  • Operating Temperature: -10鈩 to 50鈩
  • Storage Temperature: -25鈩 to 55鈩

Why not buy this 20x52 HDMI Video Matrix Switcher today?

Frequently
Reasons To Buy an HDTV Supply WolfPack Product

Why not buy this WolfPack 20x52 HDMI Matrix Switcher today?

Free Android and iOS App: The IOS App for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system to install it directly.

For the Android App click the following link and download it. Go to Android App for control of this HDMI matrix switch.

Here is the RS232 User Manual if you want to write your own drivers.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not buy this WolfPack 20x52 HDMI Matrix Switcher today?

These modular HDMI matrix switchers can usually be integrated with many third party control systems using the RS232 port on the back of the matrix.

For experienced AV hardware and software professionals who want to write their own drivers for 3rd party control systems from:

  • AMX™
  • Control4™ (Optional)
  • Creston™
  • RTI™
  • DTVGameControl™
  • Elan g!™ (Optional)
  • Media Switcher™
  • OnControls™
  • Savant™
  • SimpleControl™
  • SwitchItUp™
  • SAVI Control™
  • URC Control™
...we have created a simple and very easy to use RS232 script to write your own drivers.

EXAMPLE: If you want to switch input 8 to output 1, 8, 16, the RS232 command would be x1&8&16. and notice the command has a period (.) at the end of the string. The matrix even replies "OK" when the right command is received and shows "ERR" when receiving a wrong command. Here is the RS232 User Manual if you want to write your own drivers.

How to use the info:

END USER: If you are an end user and want to have a whole-house control system from any of the above 3rd party control houses but your budget can't support the price you were quoted, do the following:

  1. Call us for a quote
  2. Once you get our quote call a 3rd party control reseller or installer in your area and tell them "Here is the hardware I want to use, please give me a quote on writing the software and installing all of the hardware at my location." You usually can save $1,000s on larger systems.

CAVEAT: We are not certified by any of the above 3rd party control systems companies nor have the necessary hardware to verify, troubleshoot and support the 3rd party writing of the code. We do warranty, though, that the RS232 script in the above RS232 Users Manual has and will work to control the matrix directly.

Also, CLICK HERE for our DirecTV™ & HDMI Matrix Control Software for Bars & Restaurants

Why not buy this 20x52 HDMI Video Matrix Switcher today?

Q: What are the HDCP options?
A:
You can choose either to open or close the HDCP on the output card. A receiver that cannot support HDCP can also display the sources with HDCP.
  1. Mix-n-Match combinations:
  2. Non-HDCP source to a HDCP compliant TV
  3. HDCP source to a non-HDCP compliant TV
Q: What is you test procedure?
A:
Our testing procedure is:
  1. Assembling: Production line self-testing (Basic Functions)
  2. Initial Testing: Includes every card, control software and front panel front buttons
  3. 24 Hours Aging: Gao Sheng Standard Aging Room
  4. Final testing: All Functions
  5. QC final Inspection: Sticker, serial number, etc
  6. Packing: Pack and ship
Q: How do the 2-power supplies work with the matrix?
A:
For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up

Q: How do the 2-power supplies work with the matrix?
A:
For the 2 power supply system on the card cage matrix, it's a redundant system. We can have two power supply system on at the same time (if one's down, it can hop to another, it guarantees the matrix won't shut down). It also can operate with just one power supply on and the other one is for back-up

Q: What are the dimensions of the chassis?
A:
It is 80x80: 16U - 482x390x711mm - 18.97x15.35x27.99 inches (L/W/H)

Q: Do you have any tips in the unlikely event the unit fails?
A:
Turn it OFF and then disconnect the matrix from the AC power and all cables. Pull out each board from the rear and push back in. Plug all cables back in and turn it on.

Why not buy this 20x52 HDMI Video Matrix Switcher today?
