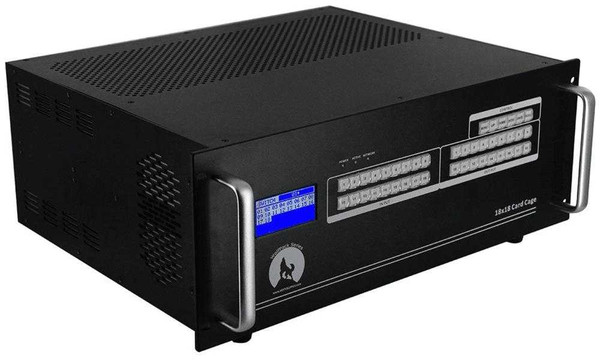

Fast 16x7 HDMI Matrix Switch w/Apps, WEB GUI, Video Wall, Separate Audio & Scaling
16x7 HDMI Matrix Switch w/Separate Audio
Part # MM16x7VW
Usually ships in 3-4 business days
Today's Price: $3,475.00
Ask Our WolfPack Experts
HDTV Supplys WolfPack™ Modular 16x7 HDMI Matrix Switcher Chassis with Video Wall Processor is an integrated HDMI video and HDMI audio modular HDMI matrix routers. The chassis back plane allows various technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination with multiple technologies.
The core of the 16x7 HDMI Matrix Switcher Chassis with Video Wall Processor consist of a 18x18 Modular Matrix chassis and its highly configurable backplane that supports up to 18 input cards and up to 18 output cards. It is also 1080p 4:4:4 compliant. You can control the switch via its IOS or Android app, 2-button fast switch from the front buttons, a WEB GUI control or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its iOS and Android App as well as above.
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix doesn't have to be sent to us for a repair.
The WolfPack 16x7 HDMI Matrix Switcher Chassis with Video Wall Processor manages many type of HDMI signals. These Modular HDMI Matrix Routers support long haul transmission, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our Modular HDMI Matrix Routers also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
The heart of the 16x7 HDMI Matrix Switcher Chassis with Video Wall Processor are the WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.
EDID Explained: The Modular HDMI Matrix Routers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with predefined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.
This WolfPack HDMI Matrix Switcher allows switching between inputs with a clean video cut and frame-to-frame switching with no glitches. The WolfPacks Modular HDMI Matrix Switcher advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms or 0.1 second) between HDMI inputs and outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
Separate Embedded Audio In and De-embedded Audio Out: The Seamless Matrix Switcher allows you to display video with separate audio coming from another audio source as it supports embedding the audio on the HDMI input cards 3.5mm audio connector and then de-embedding the audio on the HDMI output cards 3.5mm audio.
Hardware Scaling via DIP Switches on both in and out cards: The 8-pin DIP switch on the cards are for the manual scaling up/down. Each HDMI card has a 8-pin DIP switch to select multiple resolution settings to conform to your HDMI source devices and the HDMI destination devices.
100ms Seamless HDMI Switching: This WolfPack™ 16x7 HDMI Matrix Switch with Video Wall delivers 100ms instantaneous video switching with full 1080p/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input, the display outputs and scales the inputs for the best output resolution. It sets the output clock timing and uses a frame buffer to retain the input signal information for the fastest output.
The WolfPack Seamless 16x7 HDMI Matrix Switch with Video Wall allows switching between inputs with a clean video cut & frame-to-frame switching without any glitches. The HDMI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch (~100ms or 0.1 second) between HDMI inputs & outputs. Most non-seamless HDMI matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
We Need AMX Drivers
We Need Extron Drivers
We Need Savant Drivers
Sports Bar DirecTV™ Control System
Controlling WolfPack Matrix Systems
Options for Modular Matrix Systems
Tablet for WolfPack HDMI Matrix Systems
Accessories for Modular Matrix Systems
This video shows you the operation of HDTV Supply's WolfPack HDMI Matrix System with a built-in Video Wall Processor. The demo shows a 9x9 modular chassis with HDMI and HDBaseT cards but applies for our larger 18x18 and 36x36 modular chassis. The HDBaseT HDMI over CATx extender outputs shown are an option and the demo would be the same with female HDMI outputs.
