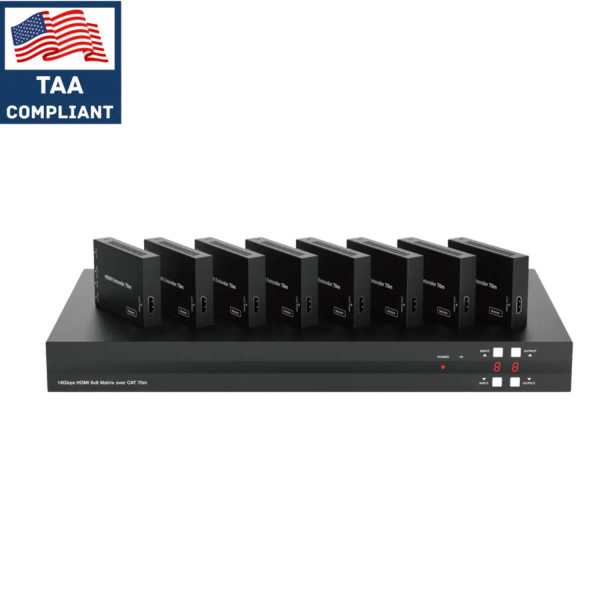

This Zenty ZT-494 4K 60Hz 8x8 HDMI Matrix Extender 230ft with IR Matrix - TAA-compliant connects up to 8 HDMI sources to 16 displays, offering eight HDMI outputs, each mirrored with a simultaneous CAT cable output. It supports high-resolution video up to 4K@60Hz (4:4:4) and 1080p Full HD, along with advanced digital audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. Ideal for multi-room AV distribution, HDMI signals can be extended up to 230ft (70m) via CAT receivers connected to the mirrored outputs. The matrix also supports one-way IR signal routing and offers flexible control options through front panel buttons, IR remote, RS-232, LAN, and an intuitive Web GUI.
Zenty ZT-494 4K 60Hz 8x8 HDMI Matrix Extender 230ft with IR Matrix - TAA-compliant Features:
- HDMI 2.0b and HDCP 2.2/1.x compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
- 8 HDMI inputs, 8 HDMI & CAT mirrored outputs
- HDMI ports support 18Gbps lossless compressed video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
- CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Advanced EDID management and CEC control are supported
- 12V POC on all CAT ports
- Support one-way IR matrix function
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
Why not buy this Zenty ZT-494 4K 60Hz 8x8 HDMI Matrix Extender 230ft with IR Matrix - TAA-compliant from HDTV Supply today?
Zenty ZT-494 4K 60Hz 8x8 HDMI Matrix Extender 230ft with IR Matrix - TAA-compliant Specification:
- Technical
- HDCP Compliance HDCP 2.2/1.x
- Video Bandwidth 18Gbps
- Video Resolution Up to 4K2K@50/60Hz (4:4:4)
- Color Space RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0
- Color Depth
- 8-bit, 10-bit, 12-bit (1080p@60Hz)
- 8-bit (4K2K@60Hz YUV4:4:4)
- 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0）
- HDMI Audio Formats
- LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
- Dolby Digital Plus (DD+), DTS-ES, DTS HD Master,
- DTS HD-HRA, DTS-X
- ESD Protection Human-body Model:
- ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
- CAT Receiver
- Mechanical
- Housing Metal Enclosure
- Color Black
- Dimensions Matrix: 440mm (W) × 250mm (D) × 44.5mm (H)
- Receiver: 61mm (W) x 88mm (D) x 18mm (H)
- Weight Matrix: 3.2kg, Receiver: 155g
- Power Supply
- Input: AC 100 - 240V 50/60Hz
- Output: DC 12V/5A
- (US/EU standards, CE/FCC/UL certified)
- Power Consumption 50W (Max)
- Connection
- Matrix
- - 2 / 22 -
- HDMI Compliance HDMI 2.0b
- HDR HDR10, HDR10+, Dolby Vision, HLG
- Inputs
- 1x IR IN [3.5mm Stereo Mini-jack]
- 1x CAT port [RJ45]
- 8 x HDMI Type A [19-pin female]
- Outputs
- 1x HDMI Type A [19-pin female]
- 8 x HDMI Type A [19-pin female]
- 8 x CAT port [RJ45]
- Control
- 1x SERVICE [Micro USB, Update port]
- Controls
- 1 x TCP/IP [RJ45]
- 1 x RS-232 [3-pin phoenix connector]
- 8 x IR OUT [3.5mm Stereo Mini-jack]
- 1×IR EXT [3.5mm Stereo Mini-jack]
- Transmission Distance 230ft / 70m (via a single CAT6 cable)
- Operating Temperature
- 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature
- -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity 20~90% RH (non-condensing)
- 4K60 -
- Feet / Meters
- 4K30 -
- Feet / Meters
- HDMI IN / OUT 16ft / 5M 32ft / 10M
- The use of “Premium High Speed HDMI” cable is highly recommended.
