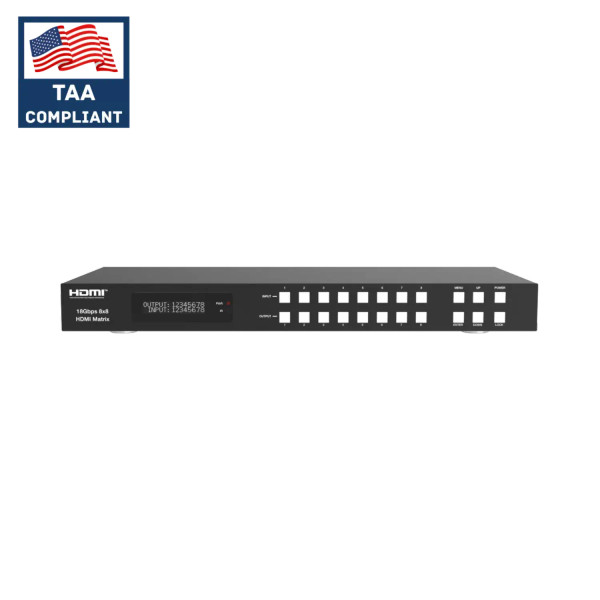

This Zenty ZT-492 4K 60Hz 8x8 HDMI Matrix with ARC Function - TAA-compliant allows seamless routing of ultra-high-definition video (up to 4K@60Hz, YUV 4:4:4) and multi-channel digital audio from 8 HDMI sources to 8 HDMI displays. Each HDMI output supports independent downscaling from 4K to 1080p for flexible compatibility with various displays.
Audio can be de-embedded from the HDMI outputs to both analog and coaxial outputs. When ARC (Audio Return Channel) is enabled, audio from connected HDMI display devices can also be extracted to the coaxial output.
Control options include front panel buttons, IR remote, RS-232, LAN, and a user-friendly Web GUI for convenient management.
Zenty ZT-492 4K 60Hz 8x8 HDMI Matrix with ARC Function - TAA-compliant Features:
- HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
- Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Support 18Gbps video bandwidth
- Dolby Vision, HDR10+ and HLG are supported.
- Support 4K->1080P Down Scaler for each output port
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Audio de-embedded is supported via analog and coax ports
- ARC, CEC and smart EDID management are supported
- 1U rack mounted design with front panel OLED display
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
