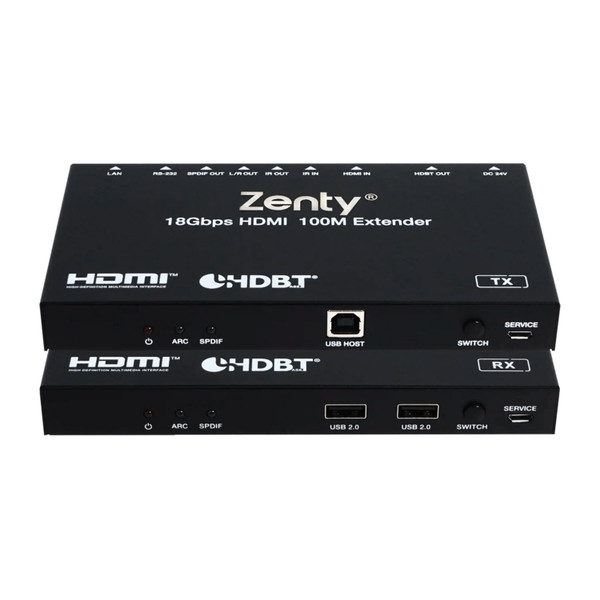

Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB

Zenty

Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB
$1,040.00

25% Discount. Apply Code 25percentOff at Checkout!

Part Number:
ZT-424
Condition:
New
Availability:
In Stock
1:
Supports Upto 4K@60Hz Resolution
2:
Features USB KVM Function
3:
HDMI-ARC & SPDIF Optical Outputs
4:
Bi-Directional IR Function
5:
Free USA Shipping
6:
International Shipping w/Wire Transfer
7:
Hassle-free Warranty
8:
5-Year Zenty Warranty
9:
Free Returns within 60 Days
10:
Lifetime Technical Support
11:
Save 5% with Wire Transfer or Check

This Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB enables users to extend a 4K@60Hz HDMI signal up to 70m (230ft) and a 1080P signal up to 100m (328ft) using a single Cat6a/7 Ethernet cable. It supports advanced video features like HDR, HDR10+, and Dolby Vision, delivering an enhanced viewing experience. Additionally, the KVM functionality allows control of multiple computers with a single USB keyboard and mouse.

For audio, you can utilize either the HDMI-ARC feature or the SPDIF Optical ports to easily route sound from your display to an external sound system. Keep in mind that for HDMI-ARC to work, both your display and sound system must support the feature.

The ZT-4KEX-AEU also features bi-directional IR control, allowing you to manage the source device from the display location or vice versa. With Power over Cable (PoC), you only need one power adapter for either the transmitter or the receiver, reducing clutter and simplifying your setup. Its compact design and straightforward installation make it a perfect addition to your system.

Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB Features:

  • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
  • Supports 18Gbps video bandwidth
  • Video resolution is up to 4k2k@60Hz YUV 4:4:4
  • The maximum transmission distance is 328ft / 100m via a single CAT6a/7 cable
  • Supports ARC (Audio Return Channel) function
  • With bi-directional IR, RS-232 and CEC pass-through
  • Supports USB KVM function
  • HDR, HDR10+, Dolby Vision and HLG function supported
  • Supports PoC (Power over Cable) function
  • Compact design for easy and flexible installation

Why not buy this Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB from HDTV Supply today?

Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB Specification:

  • Technical:
    • HDCP Compliant: HDCP 2.2 / 1.4
    • Video Bandwidth: 18Gbps
    • Video Resolution:
      • 4K2K 50/60Hz 4:4:4
      • 4K2K 50/60Hz 4:2:2
      • 4K2K 50/60Hz 4:2:0
      • 4K2K 30Hz 4:4:4
      • 1080p, 1080i, 720p, 720i, 480p, 480i
      • All PC resolutions including 1920 x 1200
    • Color Depth: 8 / 10 / 12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2 / 4:2:0) 8-bit (4K60Hz 4:4:4)
    • Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
    • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
    • L/R Audio Formats: PCM 2.0
    • SPDIF Audio Formats: LPCM2.0, Dolby Digital, Dolby Digital Plus, DTS
    • ESD Protection: Human body model—±8kV (Air-gap discharge) & ±4kV (Contact discharge)
  • Connection:
    • Transmitter:
      • Inputs: 1 × HDMI Type A [19-pin female], 1 × IR IN [3.5mm Stereo Mini-jack]
      • Outputs: 1 × HDBT OUT [RJ45, 8-pin female], 1 × SPDIF OUT [S/PDIF], 1 × L/R OUT [3.5mm Stereo Mini-jack], 1 × LAN [RJ45]
      • Control: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [Phoenix jack], 1 × SERVICE [Mini-USB, Update port], 1 × USB HOST [USB Type B]
    • Receiver:
      • Inputs: 1 × HDBT IN [RJ45, 8-pin female], 1 × SPDIF IN
      • Outputs: 1 × HDMI Type A [19-pin Female]
      • Control: 1 × IR IN [3.5mm Stereo Mini-jack], 1 × IR OUT [3.5mm Stereo Mini-jack], 1 × RS-232 [Phoenix jack], 1 × SERVICE [Mini-USB, Update port], 2 × USB 2.0 [USB Type A]
  • Mechanical:
    • Housing: Metal Enclosure
    • Silkscreen Color: Black
    • Dimensions (W × D × H): Transmitter / Receiver: 165mm × 88mm × 18mm
    • Weight: Transmitter: 170g, Receiver: 165g
  • Power:
    • Input: AC 100-240V 50/60Hz
    • Output: DC 24V / 1A (Locking connector)
    • Power Consumption: 13W (Max)
  • Environment:
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20% ~ 90% RH (non-condensing)
  • Distance:
    • 4K60: 296ft / 90m
    • 4K30: 328ft / 100m
    • 1080P60: 16ft / 5m, 32ft / 10m, 50ft / 15m

Why not buy this Zenty ZT-424 4K 60Hz (70m/230ft.) HDMI KVM Extender w/ ARC, Ethernet, USB from HDTV Supply today?

Zenty ZT-424 User Manual
