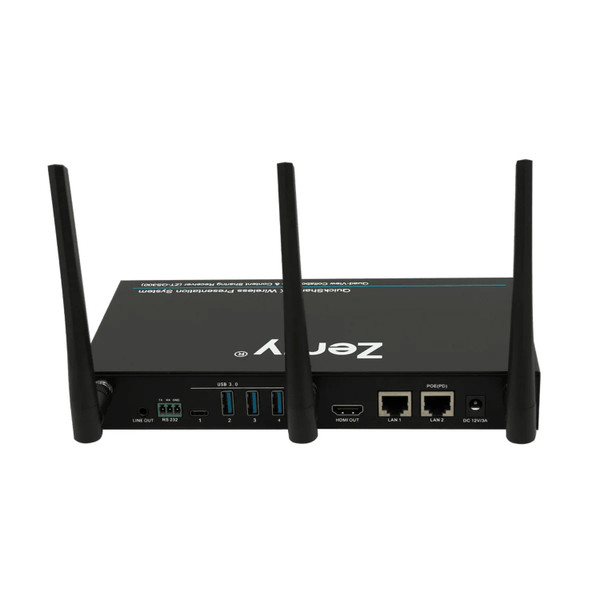

This Zenty ZT-327 QuickShare Wireless Presentation System Receiver - QS300 solution wirelessly connects the room display to be shared with remote meeting participants to provide a better collaborative experience between in-room and remote participants. This “bring your own meeting (BYOM)” solution allows users to screen share and video conference using a web conferencing application (Zoom/Teams/WebEx).
QS300 has built-in Wi-Fi module, support for multiple access, including Airplay, Miracast, HDMI dongle, Type C dongle. Users could easily bring their own devices like Mac/Windows laptop/Apple and Android mobile devices to share their contents onto main display wirelessly. It supports USB Camera, USB microphone over WI-FI sharing, by connecting external USB devices to base unit and transmits via Wi-Fi, you can easily configure your meeting room setup to make video conference more efficient. A typical QS300 system contains one Base Unit QS300 receiver and optional HDMI and USB-C transmitter dongles.
Zenty ZT-327 QuickShare Wireless Presentation System Receiver - QS300 Features:
- Pure wireless presentation experience, bring your own device function.
- Wireless connection between your laptop and room USB peripherals like camera, mic, and speakers for easy video conferencing.
- Fully compatible with mainstream VC platforms like teams, zoom, Webex, etc.
- Wireless content input up to 1080P resolution and HDMI 2.0 output.
- Supports native wireless mirroring protocols like Airplay, Miracast, Chromecast.
- Plug-n-play HDMI/Type-C dongles for wireless presentation
- Android, MAC and Windows APP for wireless presentation
- Supports 4 split screen view
- Supports wireless touch back on interactive whiteboard/touch screen
- Best-in-class data security with dual network and high standard encryption
- PoE supported, saving PSU when connecting with PoE ethernet switch
- Supports moderator mode with preview function
- Supports whiteboard and annotation
Why not buy this Zenty ZT-327 QuickShare Wireless Presentation System Receiver - QS300 from HDTV Supply today?
Zenty ZT-327 QuickShare Wireless Presentation System Receiver - QS300 Specification:
- HDMI Output: 1 x HDMI 19-pin female connector
- Video Output Resolution:
- 3840x2160 @ 60Hz
- 3840x2160 @ 30Hz
- 1920x1080 @ 60Hz
- Format Compliance: HDMI 1.4 / HDMI 2.0
- Video Capacity:
- 1080P @ <60Hz Airplay for iOS devices
- 1080P @ <60Hz "Zenty QuickShare" app
- 1080P @ <60Hz for all show-me button
- HDCP: HDCP 1.4 / HDCP 2.2
- Analog Audio Output: 1x 3.5mm PC audio female connector
- LAN Port:
- RJ45 x2: 1000Mbps x1, 100Mbps x1
- USB Interface:
- USB 3.0 x3
- USB 2.0 x1
- Type-C x2
- Audio Input: AirPlay, Miracast, Windows/MAC, WMH, USB/BT, Speakerphone
- Control Connectors: 3.5mm Phoenix terminal / RS232 interface
- Number of Windows Simultaneously on Screen: ≥4+14 (4 main windows + 14 thumbnail window)
- Number of Simultaneous Connections: ≥16
- Data Rate in Wireless: Up to 1200Mbps
- Video Playback Frame Rate: 20-60 FPS
- Latency: <100ms, Min 20ms
- Wireless Transmission Protocol: WIFI IEEE 802.11 a/g/n/ac
- Frequency Band: 2.4 GHz & 5 GHz
- WiFi Antenna: MIMO 2x2
- Dimensions:
- Without Antenna: 220mm x 120mm x 41mm
- With Antenna: 220mm x 120mm x 145mm
- Weight: 1.0kg
- Temperature: -4° ~ +140° F (-20° ~ +60° C)
- Humidity (Storage / Operating): 20%-90% (non-condensing)
- DC Power: 12V / PoE
- PoE Standard: IEEE802.3af
- Power Consumption: 10W (Max)
