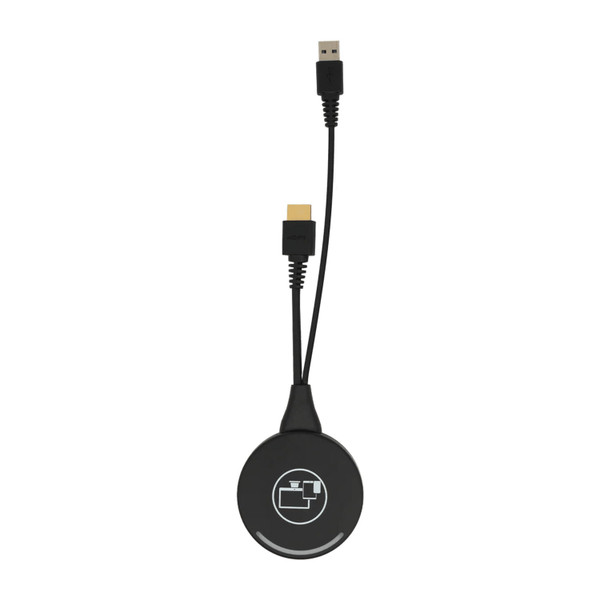

This Zenty ZT-322 QuickShare Wireless Presentation System HDMI Dongle is compatible with the Quickshare Wireless Presentation System QS-200 & QS-300 receivers. Offering plug & play feature, you can use this dongle to share your screen via Android, MacOS, or Windows app for wireless presentation
Zenty ZT-322 QuickShare Wireless Presentation System HDMI Dongle Features:
- Pure wireless presentation experience with bring your own device
- Wireless content input up to 1080P. HDMI 2.0 output
- Supports native wireless mirroring protocols like Airplay, Miracast, Chromecast
- Plug-n-play HDMI/Type-C/U disk dongles for wireless presentation
- Android, MAC and Windows APP for wireless presentation
- Supports 4 split screen view
- Supports wireless touch back on interactive whiteboard/touch screen
- Best-in-class data security with dual network and high standard encryption
- PoE supported, saving PSU when connecting with PoE ethernet switch
- Supports moderator mode with preview function
- Supports whiteboard and annotation
- Customizable home screen page
- Central management platform available
Why not buy this Zenty ZT-322 QuickShare Wireless Presentation System HDMI Dongle from HDTV Supply today?
Zenty ZT-322 QuickShare Wireless Presentation System HDMI Dongle Specification:
- HDMI Output: 1 x HDMI 19-pin female connector
- Video Output Resolution: 3840x2160@60Hz / 3840x2160@30Hz / 1920x1080@60Hz
- Format Compliance: HDMI 1.4 / HDMI 2.0
- Video Capacity: 1080P @ <60Hz AirPlay for iOS devices, 1080P @ <60Hz “Zenty QuickShare” app, 1080P @ <60Hz for all Show-Me buttons
- HDCP: HDCP 1.4 / HDCP 2.2
- Analog Audio Output: 1 x 3.5mm PC audio female connector
- LAN Port: RJ45 x2 (1000Mbps x1, 100Mbps x1)
- USB Interface: USB 3.0 x1, USB 2.0 x1, Type-C x1
- Audio Input: AirPlay, Windows/MAC, WMH
- Control Connectors: 3.5mm Phoenix terminal / RS232 interface
- Number of Windows Simultaneously on Screen: ≥4+14 (4 main windows + 14 thumbnail windows)
- Number of Simultaneous Connections: ≥16
- Data Rate in Wireless: Up to 1200Mbps
- Video Playback Frame Rate: 20–60 FPS
- Latency: <100ms (Minimum 20ms)
- Wireless Transmission Protocol: WiFi IEEE 802.11 a/g/n/ac
- Frequency Band: 2.4 GHz & 5 GHz
- WiFi Antenna: MIMO 2x2
- Dimensions (W x D x H): Without Antenna: 6.49” x 3.74” x 0.96”; With Antenna: 6.49” x 4.92” x 0.96”
- Weight: 0.4 lbs
- Temperature: -4° ~ +140° F (-20° ~ +60° C)
- Humidity (Storage / Operating): 20%–90% (non-condensing)
- DC Power: 12V / PoE
- PoE Standard: IEEE 802.3af
- Power Consumption: 10W (Max)
