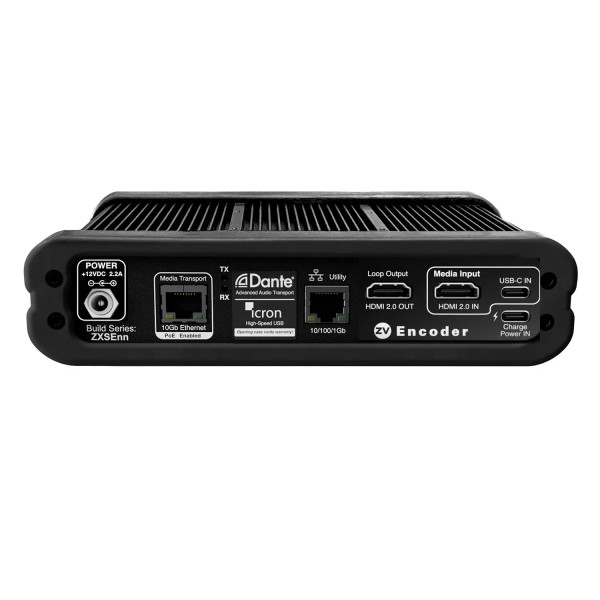

This ZeeVee Z4KC2XS-EAU/Z4KC2XS-EAU-AA ZyPer4K-XSE Copper Encoder with Dante & Icron is an HDMI 2.0 Encoder that is part of the ZyPer4K product line.
It supports IP streaming over 10Gbit copper PoE+ up to 4KP60 4:4:4 resolution with embedded Dante audio support and HDCP 2.3 encryption at zero−frame latency.
Configurable Icron USB allows support between any USB enabled ZyPer4K device. Video compatible with any ZyPer4K Decoder.
AC power supply is included but other cables are not.
ZeeVee Z4KC2XS-EAU/Z4KC2XS-EAU-AA ZyPer4K-XSE Copper Encoder with Dante & Icron Features:
- Uncompressed 4K
- Multiview
- Video Wall
- HDMI 2.0
- HDCP 2.3
- AES Encryption
Why not buy this ZeeVee Z4KC2XS-EAU/Z4KC2XS-EAU-AA ZyPer4K-XSE Copper Encoder with Dante & Icron from HDTV Supply today?
ZeeVee Z4KC2XS-EAU/Z4KC2XS-EAU-AA ZyPer4K-XSE Copper Encoder with Dante & Icron Specifications:
- Video Input:
- HDMI 2.0 with HDCP pass–through and USB–C with DP Alt Mode 1.3 Support
- Video Output:
- HDMI 2.0 (loop–out of active video input)
- USB-C Charging Input:
- Input USB–C power to support charging on USB–C Input port to 60W
- Audio (Digital):
- Encoded audio formats and linear PCM up to 8 channels
- Audio (Analog):
- Balanced Stereo (Input/Output)
- USB:
- USB 2.0 (USB — C connector)
- Note: Full USB 2.0 Support via Icron chipset
- Ethernet:
- 10 Gb for Video/Audio/Control with 1 Gb Utility
- Formats:
- Supports all major VESA resolutions and variations including full HDMI 2.0 support
- VGA: 640x480 (4:3)
- SXGA: 1280x1024 (5:4)
- 1080p/i: 1920x1080 (16:9)
- SVGA: 800x600 (4:3)
- WXGA: 1366x768 (16:9)
- QXGA: 2048x1536 (4:3)
- XGA: 1024x768 (4:3)
- SXGA+: 1440x1080 (4:3)
- Ultra HD: 3840x2160 (16:9)
- HDTV: 1280x720 (16:9)
- UXGA: 1600x1200 (4:3)
- 4K: 4096x2160 (17:9)
- Custom resolutions are supported at pixel clock rates up to 600 MHz
- Video Other:
- Color depth: 24 bit, 30 bit, 36 bit, 48 bit
- Video Wall and Multiview:
- Video Wall up to 15x15
- Multiview with up to 19 sources
- Signal Transmission Distance:
- Cat6a: 100m
- Copy Protection/Security:
- HDCP 2.3
- AES–128 Encryption
- 802.1X compatible
- Power Input (locking connector):
- 12V DC
- Power:
- Approximately 13 watts
- Temperature:
- Operating temperature: 32°F to 104°F (0°C to +40°C)
- Storage temperature: –4°F to +176°F (–20°C to +80°C)
- Humidity:
- Operating/Storage: 20% to 90% (Non–Condensing)
- Accessories:
- Z4KPWRCTR12: ZyPer 12V Power Center for use with up to 8 ZyPer Encoder/Decoders (all models). 1 RU. Includes rack ears, 8 3–foot locking 12V DC power cables, AC power cord
- Z4KRACKXSE: ZyPer4K–XSE Rack Mount Kit. Holds up to 8 ZyPer4K–XSE Encoders/Decoders in standard 6RU space. Includes rack assembly and 8 carrier units
- Z4KVESABRK: ZyPer4K VESA Bracket is a custom wall/desk/display mount bracket for ZyPer4K. Supports standard VESA parameters for mounting directly to rear of a display. 100x100, 100x200 and 200x200 VESA hole mounts are supported
- Product Dimensions:
- 19.50cm x 13.70cm x 4.82cm (7.68" x 5.39" x 1.90") W, D, H
- Product Weight:
- 1.0kg (2.2lbs) approx.
- Shipping Dimensions:
- 36.60cm x 17.40cm x 8.70cm (14.41" x 6.85" x 3.43") W, D, H
- Shipping Weight:
- 1.8kg (3.9lbs) approx.
