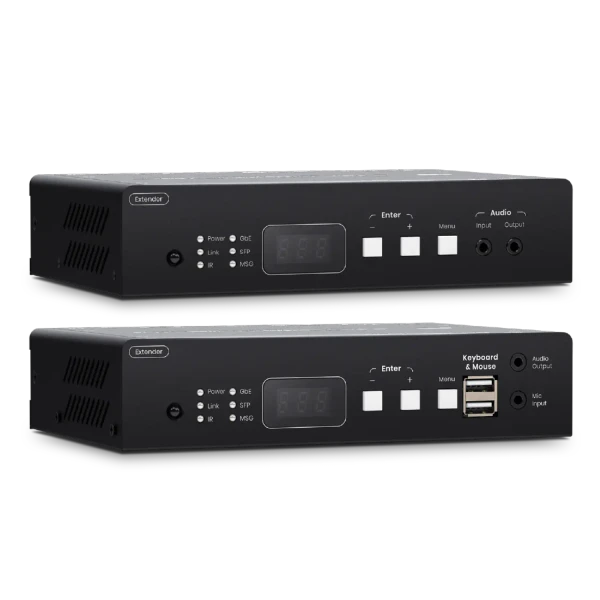

This WolfPack 4K 60 Hz HDMI KVM & USB, RS232, IR, Audio over PoE Encoder/Decoder Set is a highly flexible and scalable solution designed to adapt to a wide range of professional KVM and AV infrastructure requirements.
It features an integrated 1G Ethernet switch and allows you to configure the system with the exact number of Encoders and Decoders needed for your installation.
Available in 1080P (HKM02B), 4K@30Hz (HKM02B-4K), and 4K@60Hz (HKM02B-4K6G) versions, the system provides flexible resolution options for different project requirements.
It supports both CAT5e/CAT6 and fiber-optic transmission, allowing easy integration with existing network infrastructure.
The integrated Mouse Roaming feature enables operators to control multiple PCs seamlessly by moving the mouse cursor across connected monitor borders.
This makes the system especially useful for environments where multiple computers and displays need to be managed from a centralized workstation.
4K@60Hz Video Support: Delivers high-quality 4K video at 60Hz for demanding professional applications.
Scalable KVM Architecture: Configure the system with the required number of Encoders and Decoders based on project needs.
Multiple Resolution Options: Available in 1080P, 4K@30Hz, and 4K@60Hz models.
Integrated 1G Ethernet Switch: Provides reliable Gigabit network connectivity for the KVM system.
Dual Transmission Media: Supports both CAT5e/CAT6 and fiber-optic cabling.
Mouse Roaming: Move the mouse seamlessly between monitors to control multiple connected PCs.
Flexible Infrastructure Integration: Designed to adapt to different network layouts and installation environments.
Ideal for Mission-Critical Applications: Suitable for response and control centers, security operations, command centers, and large-scale monitoring systems.
WolfPack 4K 60 Hz HDMI KVM & USB, RS232, IR, Audio over PoE Encoder/Decoder Set Features:
- Resolution up to 4K 60 Hz.
- Signal extension up to 160m over CAT5e (or greater), 20km over fiber optic cable.
- Works with 1G Ethernet switches for HDMI® extension, distribution, switching, and matrix.
- Built-in loop out, an extra local HDMI® display at the Encoder side.
- Built-in 4 USB ports for remote control.
- Supports up to 8 x 16 video wall.
- Supports video scaler, 4K 60 Hz to 1080p/ 1080p to 4K 60 Hz.
- Supports HDMI® audio embedding and extraction function.
- Supports USB, full-duplex RS232, bi-directional IR, analog audio transmission.
- Supports RS232 signal distribution.
- Managed via Windows-based software, Android/iOS APP, Web GUI, IR remote, panel buttons, Telnet API, RS232 console.
Why not buy this WolfPack 4K 60 Hz HDMI KVM & USB, RS232, IR, Audio over PoE Encoder/Decoder Set from HDTV Supply today?
WolfPack 4K 60 Hz HDMI KVM & USB, RS232, IR, Audio over PoE Encoder/Decoder Set Specifications:
- Compliance
- Standard: HDMI 2.0, HDCP 2.2
- Max. Video Resolution: 4K 60 Hz
- Max. Transmission Distance:
- Point-to-Point: 160m (524.9ft) over CAT5e
- Point-to-Point: 20km (12.4mi) over fiber optic
- Through Ethernet Switch: 100m (328.1ft) over CAT5e
- Through Ethernet Switch: 20km (12.4mi) over fiber optic each side
- Dynamic Range Standard: SDR, HDR, HDR10, HDR10+, Dolby Vision
- Audio Format: PCM 2CH, 5.1CH, 7.1CH, Dolby True HD, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos (AC4), DTS, DTS-HD Master Audio, DTS:X
- Analog Audio:
- Impedance: 500Ω
- Signal-to-Noise Ratio (SNR): 114dB (A-weighted)
- Dynamic Range: 114dB
- THD+N: -94dB
- RS232 Baud Rate: 115200 bps
- IR Support: 20-60 Khz, ±45°, 5m (16.4ft)
- Ports & Interfaces
- Video Input:
- 1 x HDMI Type-A
- 1 x RJ45
- Video Output:
- 1 x RJ45
- 1 x HDMI Type-A
- Video Loop-out: 1 x HDMI Type-A
- Video Input:
- Power
- Power Supply:
- Transmitter: 12V 1.5A
- Receiver: 12V 1.5A
- Power Consumption:
- Transmitter: 5.5W
- Receiver: 4.1W
- Power Saving:
- Transmitter: 1.9W
- Receiver: 2.05W
- Power Supply:
- Ambient Temperature
- Operation: 0 to 55°C (32 to 131°F)
- Storage: -40 to 80°C (-40 to 176°F)
- Humidity: Up to 95%
- Operating Altitude: 2000m (6562ft)
- Physical Characteristic
- Dimension: 4.88 x 7.44 x 1.65 Inch
- Weight:
- Transmitter: 1.85lbs
- Receiver: 1.85lbs
Why not buy this WolfPack 4K 60 Hz HDMI KVM & USB, RS232, IR, Audio over PoE Encoder/Decoder Set from HDTV Supply today?
What is the WolfPack 4K 60 Hz HDMI KVM USB, RS232, IR, Audio over PoE Encoder/Decoder Set?
A: The WolfPack 4K 60 Hz HDMI KVM encoder and decoder set is a professional AV-over-IP solution for extending and distributing 4K HDMI video together with KVM, USB, audio, RS232, IR, and PoE capabilities.
It is designed for installations where computers or AV sources need to be located away from displays and operator workstations. The combination of video, control, USB, and audio extension provides a complete remote-access solution.
What video resolution does the WolfPack KVM encoder/decoder support?
A: The system supports HDMI video up to 4K at 60Hz in compatible configurations, providing detailed UHD video for professional AV and computer applications.
4K60 support is useful for high-resolution presentations, control-room workstations, digital signage, education, conferencing, and other applications where smooth, detailed video is required.
How does KVM functionality work?
A: KVM functionality allows a remote operator to use a keyboard and mouse to control a computer connected to the encoder.
The computer can therefore remain in a rack, equipment room, or other centralized location while the user operates it from the decoder endpoint.
Does the system support USB extension?
A: Yes, the system supports USB connectivity for KVM operation and compatible peripheral devices.
USB extension allows supported keyboard, mouse, and other USB devices to communicate with the remotely located computer through the KVM link.
Does it support RS232?
A: Yes, RS232 is supported for compatible serial control and communication applications.
This allows supported displays, projectors, source equipment, or other serial-controlled devices to be controlled remotely without installing a separate long-distance RS232 connection.
Can IR signals be extended?
A: Yes, the system supports IR signal extension for compatible infrared-controlled equipment.
IR extension is useful when the source or display is installed in a different location from the operator and still needs remote-control functionality.
Can the system transmit audio?
A: Yes, audio can be transported as part of the AV signal path together with the video.
This makes the system suitable for multimedia presentations, conferencing, control-room monitoring, and other applications where remote users need both picture and sound.
What is the benefit of PoE?
A: PoE allows compatible network infrastructure to provide power to the endpoint, helping reduce the need for separate power connections.
This can simplify installation in locations where electrical outlets are inconvenient or where a clean, consolidated cabling installation is preferred.
What network infrastructure is used?
A: The encoder and decoder are designed for Ethernet-based AV-over-IP distribution using compatible network infrastructure.
Network capacity, switch configuration, cable quality, multicast behavior, and endpoint requirements should be evaluated when deploying the system in a larger AV network.
Where can this WolfPack KVM system be used?
A: It is suitable for control rooms, conference rooms, classrooms, corporate AV, digital signage, training facilities, broadcast environments, and professional computer workstations.
Its combination of 4K video, KVM, USB, audio, RS232, IR, and PoE makes it particularly useful where centralized equipment and remote operation are required.
