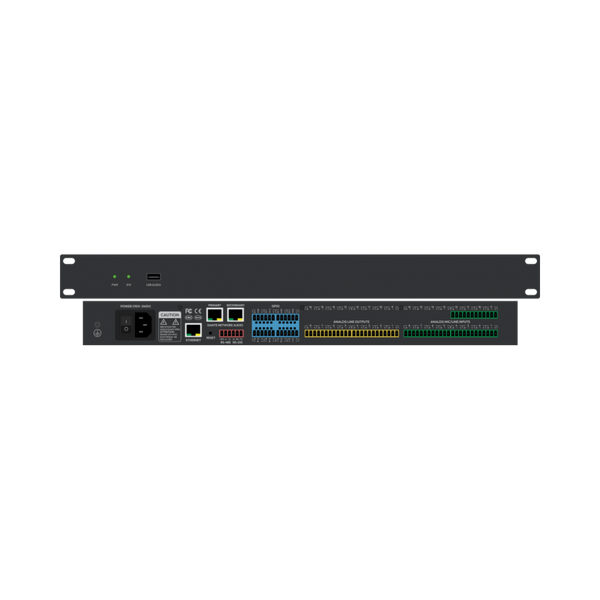

This HDTV Supply WolfPack 12x8 Digital Audio Processor (8x8Dante) is a powerful digital audio signal processing platform based on a 64-bit floating-point DSP engine.
This product series offers a comprehensive range of digital processing tools for audio system design, configuration, and optimization.
The DSP Controller software fully controls and manages the entire DSP series and all its processing functions, including AFC, AEC, ANS, ANC, AM, AGC, Ducker, PEQ, GEQ, delay, and crossover.
The intuitive graphical interface is a key component of the DSP Controller software, providing quick and convenient viewing of all signal channels in a single window.
Within this user-friendly environment, audio system designers or installers can clearly view and adjust all input levels, audio DSP processing parameters, mix relationships, and output levels.
WolfPack 12x8 Digital Audio Processor (8x8Dante) Feature:
- Processor: ADI SHARC 21489 @ 450 MHz SIMD;
- DSP processing power: 400 MIPS, 1.6 GFLOPS;
- 17-level adjustable input sensitivity, up to 48dB;
- Phantom power: +48V/Max 10mA;
- Configurable processing software, each channel can freely change the processing module according to needs;
- Supports 8 devices to operate simultaneously online;
- Up to 4 channels of independent AEC, maximum echo tail time: 512ms, convergence rate: 60dB/s, Echo cancellation amplitude: 60dB;
- AFC (feedback suppression) of independent channels, using a notch algorithm, with a transmission gain improvement of 10dB;
- Adaptive Noise Suppression (ANS), without relying on a large noise feature database, built-in noise cancellation technology, which improves the signal-to-noise ratio of sound collection by 15dB;
- Automatic Gain Control (AGC), automatically controls the signal waveform and tone within the appropriate range, automatic gain control: -6dB to +18dB, automatic equalization control: -12dB to +12dB;
- Ducker, Noise Gain Compensator (ANC), gain sharing automatic mixing (AM), threshold automatic mixing (Gate Mixer);
- 12-band British parametric equalization, providing 5 filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass
- provides a customizable user interface for end users, supporting the management of up to 30 devices through a single interface. It also features
- a built-in USB sound card that supports music playback, recording, and soft video conferencing (e.g., Zoom, Tencent Meeting, DingTalk, etc.).
- It also has a central control function that allows for overall control of the system's power supply, signal switching, environmental control, audio, and more, enabling one-click activation of all system functions.
Why not buy this WolfPack 12x8 Digital Audio Processor (8x8Dante) today?
WolfPack 12x8 Digital Audio Processor (8x8Dante) Specifications:
|
Processor |
ADI SHARC 21489 |
|
Data bit |
48K/24bit |
|
Input Gain |
0/3/6/9/12/15/18/21/24/27/30 33/36/39/42/45/48 dBu |
|
Phantom powe |
+48V/10mA max |
|
Frequency (20~20kHz) |
±0.3dB |
|
Maximum voltage level |
+18dBu |
|
THD+N |
<-94dB @4dBu |
|
Input Dynamic range |
110dB |
|
Output Dynamic range |
112dB |
|
Channel isolation@1kHz |
108dB |
|
Input impedance (balanced) |
5.4KΩ |
|
Output impedance (balanced) |
600Ω |
|
Latency |
<3ms |
|
Power |
AC117~220V,50Hz/60Hz |
|
Dimension(mm) |
482 x 260 x 45mm |
|
Weight(lbs) |
9 |
Why not buy this WolfPack 12x8 Digital Audio Processor (8x8Dante) today?
WolfPack 12x8 Digital Audio Processor User Manual
Why not buy this WolfPack 12x8 Digital Audio Processor (8x8Dante) today?
WolfPack 12x8 Digital Audio Processor (8x8 Dante) FAQ:
What is the WolfPack 12x8 Digital Audio Processor with 8x8 Dante?
A: The WolfPack 12x8 Digital Audio Processor is a professional DSP designed for audio processing, mixing, and routing. It features 12 analog inputs, 8 analog outputs, and 8x8 Dante audio networking for flexible system integration.
What is Dante audio networking?
A: Dante is a digital audio networking technology that transmits high-quality, low-latency audio over standard Ethernet networks, simplifying audio distribution and system expansion.
How many analog inputs and outputs does this processor provide?
A: It offers 12 analog inputs and 8 analog outputs, making it suitable for a wide range of commercial and professional audio applications.
Does this processor support DSP functions?
A: Yes, it includes advanced DSP features such as equalization, mixing, crossover, delay, compression, and audio routing for optimized sound performance.
What applications is this digital audio processor suitable for?
A: It is ideal for conference rooms, auditoriums, houses of worship, educational facilities, hospitality venues, and other professional AV installations.
Can it integrate with existing Dante audio systems?
A: Yes, the built-in 8x8 Dante interface allows seamless integration with compatible Dante-enabled audio devices.
Is the processor suitable for centralized audio management?
A: Yes, it provides centralized control of audio processing, routing, and distribution for complex AV environments.
Is installation and configuration straightforward?
A: Yes, it is designed for easy integration into professional audio systems and can be configured using compatible DSP management software.
Can this processor be used for multi-zone audio distribution?
A: Yes, its flexible routing and DSP capabilities make it suitable for multi-zone and multi-room audio applications.
