This Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter is a compact transmitter allows you to extend UHD 4K60 4:4:4 video up to 130' away via Cat 6 cable, making it easy to extend your presentations to a remote display.
It is compatible with separately available Boardroom Buddy receivers, and you can mix and match the output via HDMI or USB.

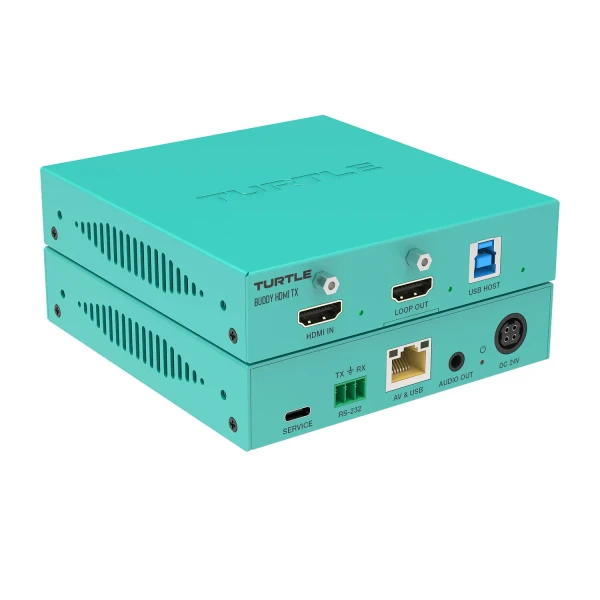

This unit features an HDMI input, a USB-B host port for your computer, and an HDMI loop output for local monitoring near the source.
A power supply is included, but the unit also supports power-over-cable from the other end.
A 3.5mm audio port provides monitoring of the embedded audio, a 3-pin terminal block allows you to control the unit via RS-232, and it also supports EDID management.
TAA Compliant: Turtle AV products, sold by HDTV Supply, and sold in the USA are TAA compliant, meeting U.S. government standards for procurement.
This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter Features:
- Extend 4K60 4:4:4 uncompressed video up to 130' over a single Cat 6a cable
- Power over cable (PoC) for only one connector to a receiver
- Works with separately available Boardroom Buddy USB or HDMI receivers
- RS-232 support for seamless integration with existing control systems and existing infrastructure
- Locking power and USB connectors
Why not buy this Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter from HDTV Supply today?
Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter Specifications:
- Interfaces
- Transmission I/O: 1x HDMI Female (2.0b) Input
1x USB-B Female (2.0) Input
1x HDMI Female (2.0b) Loop-Out
1x RJ45 Female Output
1x USB-C Female (3.1/3.2 Gen 1) Output
1x 1/8" / 3.5 mm TRS Female (Analog Audio) Output
1x USB-C Female (Firmware) Input
1x Block 3-Pin Female (RS-232) Input/Output - Embedded Audio: HDMI
RJ45 - Power I/O: 1x DIN 4-Pin (24 VDC at 2 A) Input
- Transmission I/O: 1x HDMI Female (2.0b) Input
- Standards
- HDR Support: Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
- Reclocking: No
- HDCP Support: Yes: Version 2.3
- EDID Support: Yes (Unspecified Control Method)
- Transmission
- Max Transmission Distance: UHD 4K at 60 Hz:
131.2' / 40 m (via Cat 6a) - Video Format: RJ45/USB (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):
5120 x 2160p: 50/60 fps
5120 x 1440p: 50/60 fps
4096 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i: 50/59.94/60 fps
1280 x 720p: 50/59.94/60 fps
1600 x 1200p: 60 fps
1440 x 1050p: 60 fps
1440 x 900p: 60 fps
1360 x 768p: 60 fps
1280 x 1024p: 60 fps
1024 x 768p: 60 fps
800 x 600p: 60 fps
640 x 480p: 60 fps - Supported Audio System: DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Atmos/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
- Supported Sample Rates: Up to 192 kHz (LPCM)
- Supported Cable Types: Cat 6a
- Video Bandwidth: 18 Gb/s
- Max Transmission Distance: UHD 4K at 60 Hz:
- Power
- PoE Support: Yes: PoE Proprietary
- General
- Certifications: CE, FCC, UL
- Operating Conditions: 32 to 104°F / 0 to 40°C at 20 to 80% Humidity
- Storage Conditions: -4 to 140°F / -20 to 60°C at 10 to 90% Humidity
- Dimensions: 4.6 x 4.4 x 1" / 118 x 111 x 25.5 mm
- Weight: 13.5 oz / 383 g
Why not buy this Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter from HDTV Supply today?
What is the Turtle AV TAV-BBHDMI-TX Boardroom Buddy HDMI Transmitter?
A: The Turtle AV TAV-BBHDMI-TX is a Boardroom Buddy HDMI transmitter designed to extend uncompressed 4K60 4:4:4 video over a single CAT6a cable.
What video resolution does the Boardroom Buddy support?
A: It supports uncompressed 4K60 4:4:4 video and can also accept USB-C video sources up to 5K depending on the configuration.
What is the maximum transmission distance?
A: It can extend 4K60 4:4:4 video and USB over a single CAT6a cable up to 40 meters or 130 feet.
Does the Boardroom Buddy support USB 3.2?
A: Yes, it supports USB 3.2 Gen 1 with data rates up to 2.5Gbps.
Does it provide laptop charging?
A: The USB-C version supports up to 100W Power Delivery for compatible laptops.
Does it support power over cable?
A: Yes, Boardroom Buddy uses Power over Cable to power the remote unit through the same CAT6a connection.
Is RS-232 control supported?
A: Yes, RS-232 is provided for integration with compatible control systems.
