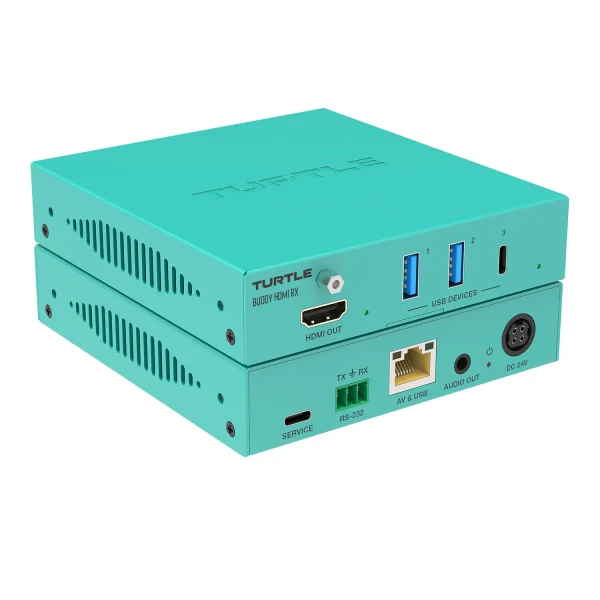

This Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver is a compact receiver allows you to extend UHD 4K60 4:4:4 video up to 130' away via Cat 6 cable, making it easy to view your presentations on a remote display.
It is compatible with separately available Boardroom Buddy transmitters, and you can mix and match the input via HDMI or USB.
This unit features an RJ45 input and an HDMI output to a remote display, and there are USB-A and USB-C device ports for extending USB signals.
A power supply is included, but the unit also supports power-over-cable from the other end.
A 3.5mm audio port provides output of embedded audio, a 3-pin terminal block allows you to control the unit via RS-232, and it also supports EDID management.
TAA Compliant: Turtle AV products, sold by HDTV Supply, and sold in the USA are TAA compliant, meeting U.S. government standards for procurement.
This ensures they can be confidently used in federal contracts, adhering to strict ethical sourcing and manufacturing regulations.
Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver Features:
- Extend 4K60 4:4:4 uncompressed HDMI video up to 130' over a single Cat 6a cable
- Power over cable (PoC) for only one connector to a transmitter
- Works with separately available Boardroom Buddy USB or HDMI transmitters
- RS-232 support for seamless integration with existing control systems and existing infrastructure
- Locking power and USB connectors
Why not buy this Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver from HDTV Supply today?
Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver Specifications:
- Interfaces
- Transmission I/O: 1x RJ45 Female Input
1x USB-C Female (Data) Input
1x USB-C Female (3.1/3.2 Gen 1) Output
1x HDMI Female (2.0b) Output
2x USB-A Female (2.0) Output
1x 1/8" / 3.5 mm TRS Female (Analog Audio) Output
1x USB-C Female (Firmware) Input
1x Block 3-Pin Female (RS-232) Input/Output - Embedded Audio: HDMI
RJ45 - Power I/O: 1x DIN 4-Pin (24 VDC at 2 A) Input
- Transmission I/O: 1x RJ45 Female Input
- Standards
- HDR Support: Yes: HDR10/HDR10+/Dolby Vision/Hybrid Log Gamma
- Reclocking: No
- HDCP Support: Yes: Version 2.3
- EDID Support: Yes (Unspecified Control Method)
- Transmission
- Max Transmission Distance: UHD 4K at 60 Hz:
131.2' / 40 m (via Cat 6a) - Video Format: RJ45/USB (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC):
5120 x 2160p: 50/60 fps
5120 x 1440p: 50/60 fps
4096 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
3840 x 2160p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1920 x 1080i: 50/59.94/60 fps
1280 x 720p: 50/59.94/60 fps
1600 x 1200p: 60 fps
1440 x 1050p: 60 fps
1440 x 900p: 60 fps
1360 x 768p: 60 fps
1280 x 1024p: 60 fps
1024 x 768p: 60 fps
800 x 600p: 60 fps
640 x 480p: 60 fps - Supported Audio System: DTS/DTS 96/24/DTS Express/DTS-HD High Resolution/DTS-HD Master Audio/Dolby Atmos/Dolby Digital/Dolby Digital EX/Dolby Digital Plus/Dolby TrueHD
- Supported Sample Rates: Up to 192 kHz (LPCM)
- Supported Cable Types: Cat 6a
- Video Bandwidth: 18 Gb/s
- Max Transmission Distance: UHD 4K at 60 Hz:
- Power
- PoE Support: Yes: PoE Proprietary
- General
- Certifications: CE, FCC, UL
- Operating Conditions: 32 to 104°F / 0 to 40°C at 20 to 80% Humidity
- Storage Conditions: -4 to 140°F / -20 to 60°C at 10 to 90% Humidity
- Dimensions: 4.6 x 4.4 x 1" / 118 x 111 x 25.5 mm
- Weight: 13.5 oz / 383 g
Why not buy this Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver from HDTV Supply today?
What is the Turtle AV TAV-BBHDMI-RX Boardroom Buddy HDMI Receiver?
A: The Turtle AV TAV-BBHDMI-RX is the receiver unit for the Boardroom Buddy HDMI extension system, receiving extended video and USB signals over a CAT6a connection.
What video resolution can the receiver handle?
A: It supports uncompressed 4K60 4:4:4 video and is part of a system capable of supporting higher USB-C video resolutions depending on the connected equipment.
What is the maximum transmission distance?
A: The Boardroom Buddy system can extend 4K60 4:4:4 video and USB up to 40 meters or 130 feet over a single CAT6a cable.
Does the receiver support USB 3.2?
A: Yes, the system supports USB 3.2 Gen 1 with data rates up to 2.5Gbps.
Can the system charge a laptop?
A: The USB-C Boardroom Buddy configuration supports up to 100W Power Delivery for compatible laptops.
Does the receiver use Power over Cable?
A: Yes, the Boardroom Buddy system uses Power over Cable to simplify installation between the transmitter and receiver.
Does it support RS-232?
A: Yes, RS-232 connectivity is provided for compatible control system integration.
