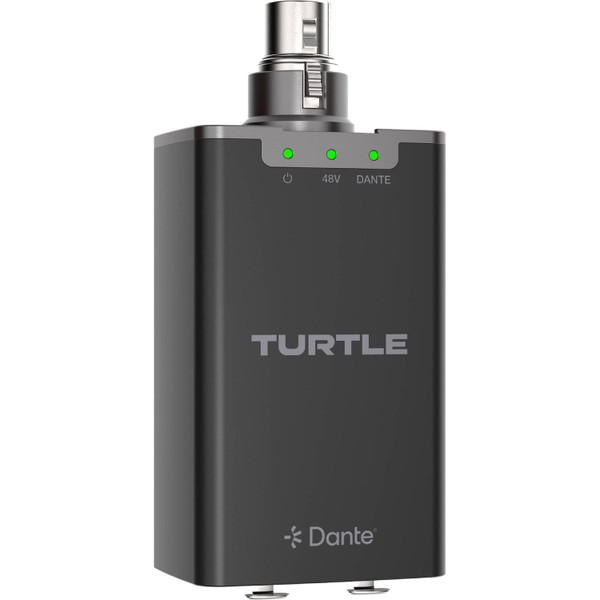

This Turtle AV JEF Dante Enabled Mic Preamp is a Dante-enabled microphone preamp that converts microphones directly to the network with low-noise preamps, onboard DSP, and full network and power redundancy.
Designed for boardrooms, stadiums, and broadcast environments, it integrates seamlessly into Dante or AES67 workflows while reducing reliance on external DSP.
Remote gain control, onboard processing, and flexible network connectivity simplify system design and streamline operation from any mix position.
Networked Audio with Redundancy: JEF features primary and secondary Dante network connections for automatic failover and uninterrupted audio transport.
Dual PoE support provides power redundancy when connected to separate PoE sources, and locking etherCON connectors ensure secure, reliable connections in permanent or live installations.
The unit connects microphones directly to the Dante network, delivering phantom power, low-noise conversion, and remote gain control for field, sideline, podium, or gooseneck microphones.
Onboard DSP and Remote Control: Advanced audio processing is handled directly within the unit, including an 8-band parametric EQ, compressor, expander, and five filters with high-pass and low-pass options.
Gain and sensitivity controls help optimize the input stage for any microphone, ensuring consistent, professional results.
Configuration and control are available through an intuitive WebUI or via open API for integration with third-party control systems.
Durable Design for Professional Installations: Housed in aircraft-grade aluminum, the JEF is built for long-term deployment in demanding AV and broadcast environments.
It is TAA compliant for U.S. government procurement.
Turtle AV JEF Dante Enabled Mic Preamp Features:
- Mic Preamp with 48V Phantom Power
- Primary and Secondary Dante Networks
- Dual PoE
- Locking etherCON connectors
- 8 Band Parametric EQ
- Dante and AES67
- Aircraft Grade Aluminium housing
- Compressor & Expander
- 5 filters including high pass and low pass
- WebUI and API control
- TAA compliant
Why not buy this Turtle AV JEF Dante Enabled Mic Preamp from HDTV Supply today?
Turtle AV JEF Dante Enabled Mic Preamp Specifications:
- Technical
- Input: 1-channel balanced XLR analog audio
- Output: Dante 2CH digital audio
- Control Method: Dante Controller
- Network Bandwidth: 100M
- Audio Latency: Configurable Dante device latency; supports 2, 3, 4, 5 or 10ms configurable using Dante Controller
- Audio Formats:
- MIC IN: balanced XLR analog audio input, max input level +24dBu
- Dante OUT: digital audio output, PCM 2CH 44.1kHz to 96kHz, 16/24-bit
- XLR Analog Audio In:
- Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
- Line Input Level (maximum): +24dBu (12.28Vrms) @ balanced audio; +18dBu (6.15Vrms) @ unbalanced audio
- Frequency Response: 20Hz to 20kHz (-/+0.5dB)
- Dynamic Range: >110dB @ 0dBu, 1kHz, A-weighted
- Audio S/N Ratio: >105dB @ 0dBu, 1kHz, A-weighted
- Audio THD+N: <0.01% @ +4dBu, 1kHz
- Audio Output Sync Delay: <1ms
- Transmission Distance: 328ft / 100m via CAT6/6A/7 cable
- ESD Protection: IEC 61000-4-2: +/-8kV air-gap discharge and +/-4kV contact discharge
- Connections
- Input Port: 1x XLR IN, XLR female plug
- Output Ports:
- 1x DANTE PRIMARY, RJ45 locking connector, PoE/PD, Class 0 IEEE 802.3at; Dante/AES67 digital audio in/out, PCM 2CH 44.1kHz to 96kHz, 16/24-bit, Web GUI and TCP/IP
- 1x DANTE SECONDARY, RJ45 locking connector, PoE/PD, Class 0 IEEE 802.3af; Dante/AES67 digital audio in/out, PCM 2CH 44.1kHz to 96kHz, 16/24-bit
- Mechanical
- Housing: Aluminum
- Color: Gray
- Dimensions: 2.36" x 1.77" x 5.71" (60mm x 45mm x 145mm)
- Weight: 0.65lbs (295g)
- Power Supply: PoE
- Power Consumption: 1.55W max
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
- Item Includes:1x Turtle AV JEF Dante Enabled & Network Controlled Mic Preamp
- Warranty: 5 Year Advance Repalcement Warranty
Why not buy this Turtle AV JEF Dante Enabled Mic Preamp from HDTV Supply today?
Why not buy this Turtle AV JEF Dante Enabled Mic Preamp from HDTV Supply today?
What is the Turtle AV JEF Dante Enabled Mic Preamp?
A: The Turtle AV JEF is a Dante-enabled microphone preamp that converts microphone audio directly to a Dante network. It features a low-noise mic preamp, 48V phantom power, onboard DSP, remote control, and network and power redundancy.
Does the Turtle AV JEF support Dante and AES67?
A: Yes, JEF is designed to integrate with Dante and AES67 audio workflows, allowing microphones to connect directly to compatible networked audio systems.
Does the JEF provide 48V phantom power?
A: Yes, the JEF provides regulated 48V phantom power for compatible condenser microphones.
What DSP features are included in the JEF?
A: The onboard DSP includes an 8-band parametric EQ, compressor, expander, gain and sensitivity controls, and five filters including high-pass and low-pass filtering.
Can the Turtle AV JEF be controlled remotely?
A: Yes, microphone gain and audio processing can be controlled remotely through the WebUI or open API.
Does the JEF provide network redundancy?
A: Yes, JEF features primary and secondary Dante network connections with automatic failover for network redundancy.
Does the JEF support power redundancy?
A: Yes, it supports PoE on both network ports, allowing separate PoE sources to provide power redundancy.
Where can the Turtle AV JEF be used?
A: JEF is suitable for boardrooms, podiums, lecterns, stadiums, broadcast environments, field microphones, and other professional AV installations.
