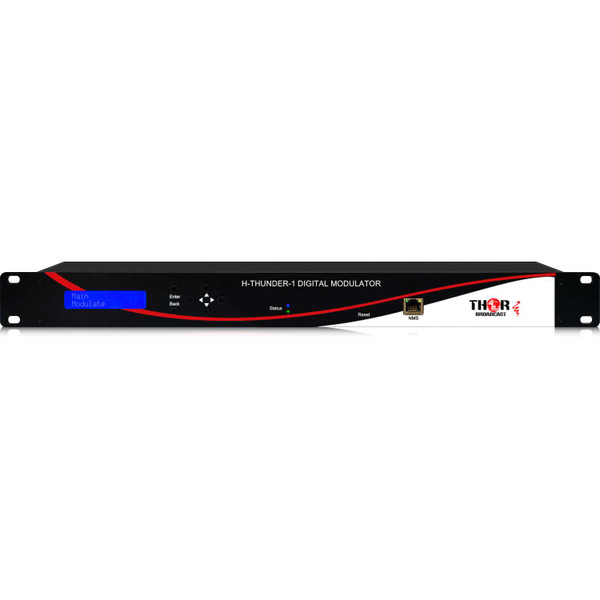

The Thor Broadcast H-THUNDER-1 is a 1-channel HDMI to RF encoder modulator that converts Full HD 1080p HDMI sources into QAM or ATSC RF signals. It supports a wide range of HDMI devices and delivers plug-and-play compatibility with TVs and set-top boxes worldwide.
This cost-effective unit is similar to Thor's H-1, H-2, and H-4 HDMI-QAM-IPLL series, featuring independent RF channel modulation with CATV RF output only and no IPTV support.
Thor Broadcast H-THUNDER-1 Full HD 1080p 1RU 1-Ch HDMI CATV RF QAM/ATSC Modulator Features:
- 1x HDMI Input
- Works with any HDMI source like DVD Players or Cable, Satellite STBs up to 1080p/60 resolution
- MPEG2 Video Encoding
- 1080p/60, 1080i, 720p, 576i, 480i Video Resolution
- Low Latency (50ms - 100ms)
- MPEG Layer 2, AAC, and DD AC3 Audio Encoding
- CC (Closed Caption), EIA 608
- LCN
- DVB-C DIGITAL QAM, ATSC, DVB-T, ISDB-T RF in One Device
- Modulation Dynamic Switching
- Control Via Web-Based NMS with Easy Updates Via Web
- LCD Display and Front Panel Control
Why not buy this Thor Broadcast H-THUNDER-1 Full HD 1080p 1RU 1-Ch HDMI CATV RF QAM/ATSC Modulator from HDTV Supply today?
Thor Broadcast H-THUNDER-1 Full HD 1080p 1RU 1-Ch HDMI CATV RF QAM/ATSC Modulator Specification:
- Video
- Encoding: MPEG2
- Interface: 1x HDMI
- Resolution Input:
- 480i
- 576i
- 720p @ 50
- 720p @ 60
- 1080i/p @ 50
- 1080i/p @ 60
- Output: Max. 1080p @ 30
- Bit Rate: 5Mbps - 19Mbps (Default: 12Mbps (J.83b))
- Audio
- Encoding Section: Audio
- Encoding: MPEG-1 Layer2, AAC, AC3
- Sample Rate: 48kHz
- Modulator Section
- MER: Typ. 35dB
- RF Range: 50MHz - 950MHz, 1kHz step
- Standard: ATSC
- Constellation: 8VSB
- Standard: QAM J.83B
- Constellation: 64QAM, 256QAM
- System
- Management: LCD + Control buttons/Ethernet
- Language: English
- Upgrade: Ethernet
- Power Supply: AC 100V - 240V, 50/60Hz
- Dimensions: 19" x 12.9" x 1.7" (484mm x 135mm x 44mm)
- Weight: 2.2lbs (1000g)
