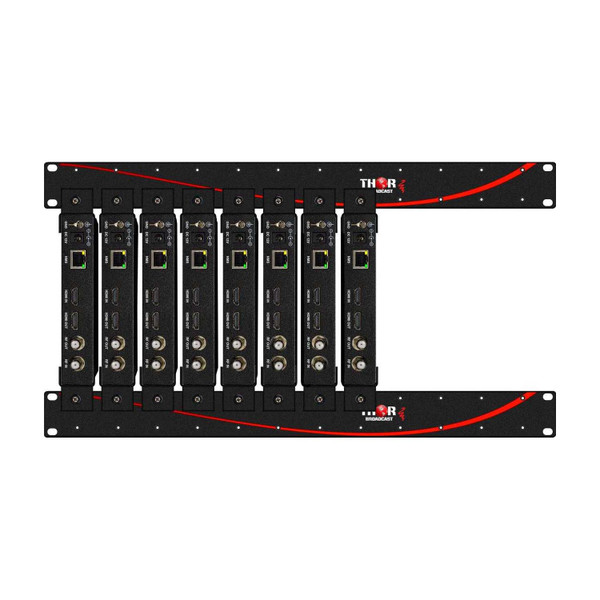

This Thor Broadcast H-Petit-8CH-RM 8-CH Digital CATV & RF Distribution. Eight individual Petits with brackets. This mounting rack-mountable chassis system is expandable from 1-12 channels. Each Petit having its own loop out, RF IN/OUT combiner, Network Management System (NMS) port and programmable front LCD panel. Although you can edit through the front panel, you can also use the Graphical User Interface via a web browser and the NMS port to set more precise settings. You can also use the multiple Petits to broadcast in both ATSC and Cable QAM modulation for your various media needs. This setup is perfect for bars, restaurants or anyone whom would like to setup eight different HDMI media feeds to their location; allowing for much more diversity in content displayed throughout your venue.
Thor Broadcast H-Petit-8CH-RM 8-CH Digital CATV & RF Distribution Features:
- HDMI Input - HDCP compliant ( works with any HDMI device )
- 10/100 Ethernet NMS port for control, setup, and monitoring
- RF output could be set to any CATV format as QAM, ATSC, DVB-T, or ISDB-T
- RF output power is +24dbmv; enough for distributing HDTV video to 100's TV over existing coax cable network
- RF power could be controlled over the network via NMS GUI (Proprietary)
- MPEG2 video encoding
- AC3 Audio encoding
- Video bit rate 19.3Mbps
- Supports any CATV RF agile channels form 57-1000Mhz, channels 2 -145,
- Supports output resolutions up to 1080p
- Easy to set up via NMS.
- Small size and lightweight
- Includes wall-mount type rack ears
- Install multiple units onto your TV system
Why not buy this Thor Broadcast H-Petit-8CH-RM 8-CH Digital CATV & RF Distribution today?
Thor Broadcast H-Petit-8CH-RM 8-CH Digital CATV & RF Distribution Specifications:
|
Encoding Section-Video |
|||||
|
Encoding |
MPEG2 |
||||
|
Interface |
HDMI*1 |
||||
|
Resolution |
Input |
Output |
|||
|
720@60p |
Max. 1080@30p |
||||
|
1080@50i |
|||||
|
1080@60p |
|||||
|
Bit rate |
2.000-24.000 Kbps |
||||
|
Encoding Section-Audio |
|||||
|
Encoding |
MPEG-1 Layer2, MPEG-2 AAC, AC3 |
||||
|
Sample rate |
48KHz |
||||
|
Bit rate |
MPEG1 Layer 2 (128Kbps) |
||||
|
MPEG-2 AAC (VBR) |
|||||
|
AC3 (128kbps) |
|||||
|
System |
|||||
|
Management |
Ethernet |
||||
|
Language |
English |
||||
|
Upgrade |
USB/Ethernet |
||||
|
Menu Configuration |
|||||
|
Basic |
RF range/Key ID/ Service Name/ RF attenuation |
||||
|
Advanced |
Service provider/Network ID/ ONID/ TS ID/ Service |
||||
|
ID/PMT PID/VPID/APID/PCR PID/Network |
|||||
|
Modulator Section |
|
|
MER |
Typ. 35dB |
|
RF range |
50-950MHz, 1KHz step |
|
RF output level |
100 dB ( 70-100 adj ) |
|
Standard |
ISDB-T |
|
Bandwidth |
6M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Guard interval |
1/4, 1/8, 1/16, 1/32 |
|
FFT |
2K, 8K |
|
Standard |
DVB-T |
|
Bandwidth |
6M, 7M, 8M |
|
Constellation |
QPSK, 16QAM, 64QAM |
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
Guard interval |
1/4, 1/8, 1/16, 1/32 |
|
FFT |
2K, 8K |
|
Standard |
DVB-C J.83A |
|
Constellation |
64QAM, 128QAM. 256QAM |
|
Symbol rate |
5.000-9.000Msps adj |
|
Standard |
DTMB |
|
Bandwidth |
8M |
|
Constellation |
GB20600-2006 |
|
Standard |
ATSC |
|
Bandwidth |
6M |
|
Constellation |
8VSB |
|
Standard |
QAM J.83B |
|
Bandwidth |
6M |
|
Constellation |
64QAM, 256QAM |
|
General |
|
|
Power supply |
12V1A |
|
Dimensions |
103*64*24mm |
|
Weight |
300g |
Why not buy this Thor Broadcast H-Petit-8CH-RM 8-CH Digital CATV & RF Distribution today?
Does this unit accept HDMI input and support HDCP-protected sources?
A: Yes — the H-Petit units have an HDMI input and are HDCP compliant, so they accept HDCP-protected HDMI sources.
Can I control and configure each Petit over the network from a web browser?
A: Yes — each Petit provides an Ethernet NMS port and a web-based GUI you can use to set and monitor settings.
What RF modulation formats does the unit support?
A: It supports multiple CATV formats including QAM, ATSC, DVB-T, and ISDB-T.
What maximum video output resolution does the system support?
A: The system supports output resolutions up to 1080p.
Which video and audio encodings are supported?
A: Video is encoded with MPEG-2; audio encoding options include MPEG-1 Layer2, MPEG-2 AAC, and AC3.
Can the device broadcast multiple channels from a single rack-mount chassis?
A: Yes — the rack-mount chassis houses eight individual Petit modules and is expandable from 1 to 12 channels.
What advanced configuration parameters can I edit for transport streams and services?
A: Advanced menu items include Service provider, Network ID, ONID, TS ID, Service ID, PMT PID, VPID, APID, PCR PID and Network settings.
Can I manage basic setup from the front panel if I don’t have network access?
A: Yes — each Petit has a programmable front LCD panel that you can edit directly for basic configuration.
Can a single system output both ATSC and Cable QAM at the same time?
A: The product states you can use multiple Petits to broadcast in both ATSC and Cable QAM modulation for different feeds.
