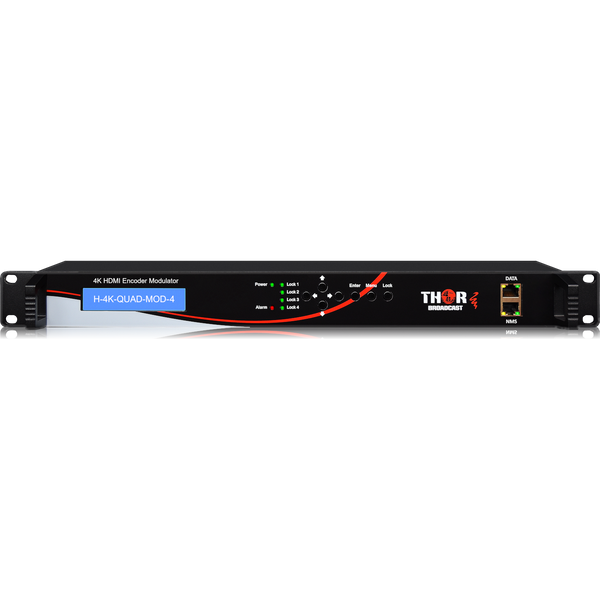

This Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder is a professional broadcast solution designed to convert HDMI video sources into digital RF television channels and IP streams. The system integrates H.265 / H.264 encoding, multiplexing, and RF modulation in a 1RU chassis, enabling efficient distribution of Ultra HD and Full HD video over existing CATV coaxial networks or Ethernet IP infrastructure.
Available in 1-channel, 2-channel, and 4-channel HDMI input models. The 4k unit accepts HDMI inputs from devices such as satellite receivers, cameras, media players, Blu-ray players, and computers. The video is encoded and modulated into ATSC, DVB-C, DVB-T, or ISDB-T RF channels, allowing it to be distributed over standard coax TV networks.
In addition to RF output, the encoded programs can also be streamed over Ethernet as UDP, RTP, or RTSP multicast IP streams, enabling hybrid RF and IPTV distribution across modern network infrastructures.
Using advanced HEVC (H.265) compression, the system supports Ultra HD resolutions up to 3840 × 2160, delivering excellent picture quality while maintaining efficient bandwidth usage. Multiple programs can be multiplexed onto RF carriers, allowing several channels to be distributed across a single coaxial network.
The modulator provides high-quality RF performance with MER greater than 40 dB and a frequency range of 50–960 MHz, ensuring reliable broadcast distribution for professional installations.
For system flexibility, the unit supports optional ASI input and dual ASI outputs, along with SPTS or MPTS IP transport streams depending on the carrier configuration. The optimized encoding architecture ensures very low latency from encoding to decoding.
Configuration and monitoring are simple through the front-panel LCD display and web-based management interface. The device also features a modular drawer-type design, allowing quick replacement or upgrade of encoding modules when needed.
The Thor 4K Encoder Modulator Series is ideal for hotels, campuses, hospitals, cruise ships, digital signage networks, and CATV headend systems, providing a reliable and flexible solution for distributing HDMI video over RF coaxial networks or IP streaming infrastructure.
Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder Features:
- HDMI input with H.265/h.264 video (4K encoding for H.265 only)
- DVB-C / DVB-T / ISDB-T / ATSC RF OUT for order option
- IP output over UDP, RTP/RTSP from the 100/1000M self-adaptive data port
- Support AC3 Pass-through
- Support OSD (logo/QR Code) insertion, logo in PPT form is available
- Support CC (Closed Caption) /Teletext (CC is not available for H.265 at present)
- Excellent modulation quality
- LCN support (Logical Channel Number)
- LCD Screen for easy management
Why not buy this Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder from HDTV Supply today?
Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder Specifications:
| Input | 4 HDMI inputs with the 2/4 input HDMI models having a loop-out 1 ASI in for re-mux | ||||||
| Video | Resolution | 3840*2160_60/50P(H.265 only), 1920*1080_60/59.94/50P, 1280*720_60/59.94/50P, |
|||||
| Encoding | HEVC/ H.265, MPEG 4 AVC/H.264 | ||||||
| Bit-rate | 2Mbps~20Mbps | ||||||
| Rate Control | CBR/VBR | ||||||
| Chroma | Input:4:4:4/4:2:2; output:4:2:0 | ||||||
| GOP Structure | IBBP, IPPP | ||||||
| Audio | Encoding | MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass through | |||||
| Sampling rate | 32KHz,44.1KHz,48KHz | ||||||
| MPEG-1 Layer 2 /LC-AAC Bit-rate | 48Kbps~384Kbps | ||||||
| HE-AAC Bit-rate | 24 Kbps~128 Kbps | ||||||
| HE-AAC V2 Bit-rate | 18 Kbps~56 Kbps | ||||||
| Multiplexing | Maximum PID Remapping | 255 input per channel | |||||
| Function | PID remapping ( automatically or manually) | ||||||
| Accurate PCR adjusting | |||||||
| Generate PSI/ SI table automatically | |||||||
| Modulation | DVB-C | QAM Channel | 4*DVB-C carriers | ||||
| Standard | EN300 429/ITU-T J.83A/B | ||||||
| MER | ≥40db | ||||||
| RF frequency | 50~960MHz, 1KHz step | ||||||
| RF output level | -20~+3dbm, 0.1db step | ||||||
| Symbol Rate | 3.000~9.000Msps adjustable | ||||||
| Constellation | J.83A | J.83B | J.83C | ||||
| 16/32/64/128/256QAM | 64/256QAM | 64/ 256QAM | |||||
| Bandwidth | 8M | 6M | 6M | ||||
| DVB-T | Standard | EN300744 | |||||
| Transmission Mode | 2K,4K, 8K | ||||||
| Bandwidth | 6M, 7M, 8M | ||||||
| Constellation | QPSK, 16QAM, 64QAM | ||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
| MER | ≥42 dB | ||||||
| RF frequency | 50~960MHz, 1KHz step | ||||||
| RF out | 4*DVB-T carriers | ||||||
| RFoutput level | -28~ -3 dBm, 0.1db step | ||||||
| ATSC | Standard | ATSC A/53 | |||||
| Bandwidth | 6M | ||||||
| Constellation | 8VSB | ||||||
| MER | ≥40dB | ||||||
| RF frequency | 50~960MHz, 1KHz step | ||||||
| RF out | 4*ATSC carriers | ||||||
| RF output level | -20~+3dbm(for all carriers), 0.5db stepping | ||||||
| ISDB-T | Standard | ARIB STD-B31 | |||||
| Bandwidth | 6M | ||||||
| Constellation | QPSK, 16QAM, 64QAM | ||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||
| Transmission Mode | 2K, 4K, 8K | ||||||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
| MER | ≥40dB | ||||||
| RF frequency | 50~960MHz, 1KHz step | ||||||
| RF out | 2*ISDBT carriers | ||||||
| RF output level | -20dBm~+3dBm, 0.1dB stepping | ||||||
| Stream output | 2 ASI out (BNC type, same one mirror out TS as one of 4/2 MPTS outputs and 4 SPTS outputs) DVB-C/DVB-T/ATSC: IP (4 MPTS & 4 SPTS) out over UDP, RTP/RTSP ISDBT: IP (2 MPTS & 4 SPTS) out over UDP,RTP/RTSP | ||||||
| System function | Network management(WEB) | ||||||
| English | |||||||
| Ethernet software upgrade | |||||||
| Miscellaneous | Dimension(W×L×H) | 482mm×328mm×44mm | |||||
| Environment | 0~45°C(work) -20~80°C (Storage) | ||||||
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz | ||||||
Why not buy this Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder from HDTV Supply today?
Thor Broadcast H-4K-QUAD-MOD User Manual
Why not buy this Thor Broadcast H-4K-QUAD-MOD 4-Channel 4K HDMI RF CATV Modulator and IPTV Encoder from HDTV Supply today?
What is the Thor Broadcast H-4K-QUAD-MOD used for?
The Thor Broadcast H-4K-QUAD-MOD is a multi-channel 4K HDMI modulator and IPTV encoder that converts up to four HDMI sources into RF (CATV) channels and IPTV streams. It is available from HDTV Supply for professional video distribution systems.
How many HDMI inputs does this modulator support?
This unit supports 4 independent HDMI inputs, allowing users to encode and distribute four different video sources simultaneously over RF and IP networks.
What video resolutions are supported?
The H-4K-QUAD-MOD supports up to 4K UHD video input, along with backward compatibility for Full HD 1080p and lower resolutions.
What output formats are available?
It provides RF output (CATV modulation) and IPTV streaming output, making it suitable for both coaxial cable distribution and network-based video delivery.
Which RF modulation standards are supported?
The unit supports multiple RF standards such as QAM, ATSC, DVB-T, and ISDB-T depending on configuration.
Can this device stream content over IP networks?
Yes. It includes built-in IPTV encoding capabilities, allowing video streams to be distributed over LAN networks.
What are typical applications for this product?
The Thor Broadcast H-4K-QUAD-MOD is ideal for hotels, hospitals, campuses, sports bars, digital signage networks, and cable TV systems where multiple video sources need to be distributed efficiently. HDTV Supply provides this solution for both new deployments and upgrades.
What about warranty and purchasing from HDTV Supply?
When purchased from HDTV Supply, the Thor Broadcast H-4K-QUAD-MOD includes the manufacturer’s standard warranty covering defects in materials and workmanship. Customers also benefit from expert guidance, system design support, and after-sales assistance from HDTV Supply’s technical team.
