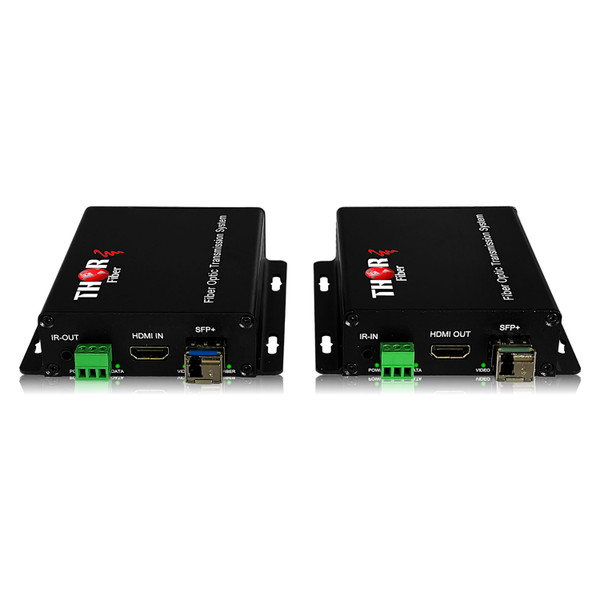

Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit

Thor Broadcast

Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit

DISCONTINUED, PLEASE CONTACT US FOR ITS REPLACEMENT

Part Number:
F-HDMI-4K-TxRx
Condition:
New
1:
Simple-To-Read Input Signal
2:
Supports HDTV Resolutions
3:
Supports RGB & YCBCR4:4:4
4:
Supports HDMI1.4 & HDCP1.4
5:
Free USA Shipping
6:
Authorized Thor Direct Warranty
7:
2-Year Warranty

Out of stock

We are sorry but the Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit is no longer available and has been discontinued by the manufacturer. We've left this page up for reference only.

Please call us at 833-965-3722 immediately for the replacement product.

This Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit is a cutting-edge device designed to extend high-definition video and audio signals over long distances using fiber optic cables. With its advanced technology, it supports a maximum resolution of 40962160 at 30Hz, delivering stunning 4K visual quality for an immersive viewing experience.

This extender utilizes fiber optic cables for signal transmission, which offer several advantages over traditional copper cables. Fiber optic cables provide superior signal integrity, ensuring high-quality transmission without degradation over long distances. They are also immune to electromagnetic interference, making them ideal for installations in environments with high interference.

The HDMI over fiber extender is equipped with IR (Infrared) or RS232 or RS485 control options, allowing you to remotely control the connected HDMI video source. The IR control enables you to use a remote control to manage the source device, while the RS232/RS485 control offers serial communication for more advanced control applications. This flexibility provides convenient and seamless operation, especially when the video source is not easily accessible.

This extender is highly versatile and can be used in various real-life applications. It is suitable for extending HDMI signals between different devices, such as connecting a DVD player to a television, transmitting video from a computer to a projector, or even linking gaming consoles to a monitor. Its compatibility with a wide range of HDMI video source devices makes it a valuable tool in various professional and home entertainment setups.

Setting up the HDMI over fiber extender is straightforward. Simply connect the HDMI video source to the extender unit using a standard HDMI cable, and then connect the extender to the display device using a fiber optic cable. The extender handles the signal transmission, ensuring seamless and reliable video and audio delivery between the source and display devices.

The unit is equipped with a 10Gbps SFP+ and allows for the transparent transmission of 4K video and audio without any compression or encoding between the transmitter and receiver. The transmission is nearly instantaneous, with a delay of approximately 1ms

Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit Features:

  • Simple-to-read input and output signal indicators
  • Supports HDTV resolutions up to 4096*2160@30Hz
  • Supports RGB&YCBCR4:4:4, YUV4:4:4, 4:2:2, 4:2:0
  • Supports DDC, CEC, and HPD signals
  • Compatible with single-mode and multi-mode fibers
    • Multi-mode transmission distance: 1KM
    • Single-mode transmission distance: 10KM
  • Delay of less than 1 ms - Uncompressed transmission.
  • Supports 1 channel bidirectional full-duplex RS232 (half-duplex RS485 optional)
  • Supports international standard HDMI1.4 and HDCP1.4
  • Supports computer display resolution up to 4096*2160@30Hz
  • Transmission distances of up to 10km possible with single-mode fiber using LC Fiber Connectors
  • Easy setup with Plug and Play interfaces
  • IR remote control over separate optical return path
  • Bi-directional RS232 or unidirectional RS485 option (model dependent)

Why not buy this Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit from HDTV Supply today?

Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit Specification:

Video Parameters
Resolutions 720p/1080i/1080p 800*600 , 1920*1200, 4096*2160@30Hz
Interface Supports HDMI Interface with HDCP Function
Audio Parameters HDMI Audio -Embedded
Physical Parameters
Dimensions 10.8 x 8.6 x 2.2 inches.
Power Supply 12VDC @ 1.5A
Working Temperature 0 +50 C
Relative Humidity 0 to 95% non-condensing
Optical Parameters
Optical Fiber

LC/PC simlex SFP+
Optical Wavelength 1310 nm from TX to RX, 1550nm form RX to TX
Rate 10Gbps SFP+
Optical Receiver Sensitivity -14dbm
Output Output Power - 5dbm
Input Optical Modulation <15 μW
Transmission Distance 1m~1000m for multimode optical cable 1m~10km for single mode
Performance Parameters
Optical Fiber Mode Single mode
Quantity of Optical Fibers Simplex - 1 fiber
Optical Connector SFP included with LC

Why not buy this Thor Broadcast F-HDMI-4K-TxRx HDMI Over Single Fiber Extender With Return IR Transmitter/Receiver Kit from HDTV Supply today?

What Is a WolfPack Fixed HDMI Matrix Switcher?

A WolfPack Fixed HDMI Matrix Switcher is a single-chassis device that routes any HDMI source — such as a cable box, satellite receiver, streaming player, or computer — to any TV or display in a building, simultaneously and independently. Unlike an HDMI splitter (which sends one source to many screens) or a simple HDMI switch (which selects one source for one screen), a matrix switcher lets you show a different channel on every TV at the same time. HDTV Supply has sold WolfPack fixed matrix switchers to sports bars, restaurants, hotels, churches, schools, and commercial AV integrators since 2000.

Fixed vs. Modular: Which Do You Need?

WolfPack comes in two families: Fixed and Modular. Fixed matrix switchers have a set number of inputs and outputs built into one box — for example, 4 inputs × 4 outputs (4×4) or 8 inputs × 8 outputs (8×8). They are plug-and-play, rack-mountable, and the right choice when your input/output count won't change. Modular matrix switchers use a chassis with swappable I/O cards, scaling from a few ports up to 80×80 or beyond. If you know exactly how many sources and screens you need today, a fixed unit is typically lower cost and simpler to deploy.

Available Fixed WolfPack Configurations

HDTV Supply offers WolfPack Fixed HDMI Matrix Switchers in the following sizes:

  • 4Ă—2 — 4 sources to 2 displays
  • 4Ă—4 — 4 sources to 4 displays
  • 8Ă—8 — 8 sources to 8 displays
  • 8Ă—9 — 8 sources to 9 displays
  • 16Ă—16 — 16 sources to 16 displays
  • 16Ă—32 via CAT6 — extends signal up to 450 feet over CAT6 cable

Select models include built-in video wall processing, multiview, and picture-in-picture (PIP) — allowing two or more sources to display on a single screen simultaneously.

Control Options for Fixed Matrix Switchers

Every WolfPack Fixed HDMI Matrix Switcher supports multiple control methods so you can integrate it into any environment:

  • Front-panel buttons — manual source switching directly on the unit
  • IR remote control — included with most models
  • RS-232 serial control — for integration with Crestron, Control4, AMX, and similar systems
  • TCP/IP (LAN) control — send hex commands over your network from any device
  • Web GUI — browser-based interface for switching without additional software
  • Free iOS and Android apps — available for select WolfPack models

For RS-232 hex command strings and TCP/IP control protocols, see our WolfPack HEX Code Reference and TCP/IP Control Guide.

Frequently Asked Questions

What is the difference between a fixed HDMI matrix switcher and a modular HDMI matrix switcher?

A fixed HDMI matrix switcher has a set number of HDMI inputs and outputs built into a single unit — for example, 8 inputs and 8 outputs. A modular matrix switcher uses a chassis with interchangeable I/O cards, so you can configure it for many different port counts and expand it later. Fixed units are simpler and more affordable; modular units offer flexibility for larger or changing installations.

Can a WolfPack fixed matrix switcher show different channels on different TVs at the same time?

Yes. A matrix switcher routes any input to any output independently. In an 8×8 configuration, all 8 displays can show 8 completely different sources simultaneously, or multiple displays can share the same source — in any combination you choose.

Can I control a WolfPack fixed matrix switcher from a Crestron or Control4 system?

Yes. WolfPack Fixed HDMI Matrix Switchers support RS-232 and TCP/IP control, which are standard integration protocols supported by Crestron, Control4, AMX, and other third-party control systems. HDTV Supply provides hex command strings and driver documentation to support custom integrations.

What resolution do WolfPack Fixed HDMI Matrix Switchers support?

Resolution support varies by model. WolfPack fixed matrix switchers are available in 1080p (Full HD) and 4K 30Hz configurations. Select 4K models also support HDR and HDCP 2.2. Always check the individual product specification sheet for confirmed resolution, color depth, and HDCP version.

How far can I run HDMI from a WolfPack fixed matrix switcher?

Standard HDMI outputs on fixed matrix switchers support runs up to approximately 25–50 feet depending on cable quality and resolution. The WolfPack 16×32 model transmits over CAT6 cabling for distances up to 450 feet per run. For longer distances with other fixed models, HDMI extenders can be added at each display.

What is the best HDMI matrix switcher for a sports bar?

For sports bars with up to 16 TVs, a WolfPack Fixed 16×16 HDMI Matrix Switcher is a popular choice — it handles 16 independent sources (cable boxes, satellite receivers, streaming devices) and routes any of them to any TV. For larger venues with 20–80+ TVs, HDTV Supply's WolfPack Modular Matrix Switchers or AV Over IP systems are typically the better fit. Call 833-WOLFPACK (833-965-3722) for a free consultation.
