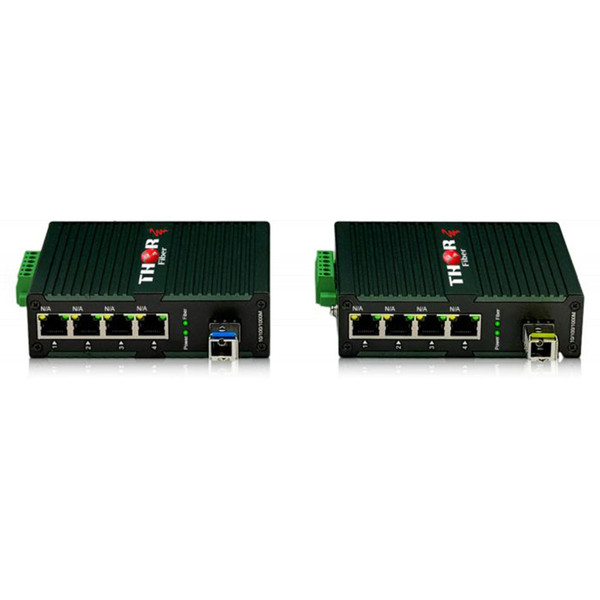

This Thor Broadcast F-GET-4ET-A/B 4-Port 10/100/1000 Mbps Gigabit Ethernet Transceiver over Single Fiber transmits five 10/100/1000 Mbps Ethernet channels over a single-mode fiber using WDM technology—one strand, full-duplex.
It allows you to connect multiple Ethernet devices on each end, such as IP cameras, PCs, network switches, Wi-Fi routers, and IP encoders—supporting up to 4 devices per side, making connectivity simple and efficient.
The unit functions as a transparent, unmanaged switch with plug-and-play operation—no configuration required. It uses LC/PC connectors and supports transmission distances up to 20km.
A complete link requires a matched A/B pair (Side A transmits at 1310nm, Side B at 1550nm).
Ideal for industrial, remote monitoring, and transportation applications.
Thor Broadcast F-GET-4ET-A/B 4-Port 10/100/1000 Mbps Gigabit Ethernet Transceiver over Single Fiber Features:
- Point-to-point bi-directional transmission over a single (simplex) fiber
- Zero-delay automatic forwarding
- Auto Speed negotiation
- Full Duplex
- Transmits 4 ports of 10/100/1000 Mbps Gigabit Ethernet (10BASE-T / 100BASE-TX / 1000BASE-T)
- 4 x RJ45 connectors (auto-negotiated, unmanaged switch)
- Supports single-mode, single-fiber via LC connectors (simplex)
- Transmission distance: 20km standard (40km, 80km, or 120km available depending on model)
- Hot-pluggable modules
- Available in chassis mount, wall-mount, or DIN-rail configurations
- 1500W surge protection and 15kV ESD protection
- External power supply
- Wide operating temperature range: -40°C to +70°C
- Input voltage: 9 ~ 48VDC
- Reverse polarity protection
- Compact form factor
Why not buy this Thor Broadcast F-GET-4ET-A/B 4-Port 10/100/1000 Mbps Gigabit Ethernet Transceiver over Single Fiber from HDTV Supply today?
Thor Broadcast F-GET-4ET-A/B 4-Port 10/100/1000 Mbps Gigabit Ethernet Transceiver over Single Fiber Specification:
| Category | Specification |
|---|---|
| Ethernet Ports | 4 x RJ45 ports (G1–G4) – 10/100/1000 Mbps Auto-Negotiated |
| Standards Supported | IEEE 802.3 – Ethernet base standard IEEE 802.3u – 100BASE-TX IEEE 802.3ab – 1000BASE-T IEEE 802.3x – Full Duplex & Flow Control IEEE 802.3az – Energy Efficient Ethernet (optional) |
| Auto-Negotiation | Supports auto detection of 10/100/1000 Mbps speeds and full/half duplex modes |
| Transport/Application Protocols | Pass-through support for: TCP, UDP, HTTP/HTTPS, FTP/TFTP/SFTP, DHCP, BOOTP, SNMP, NTP, DNS, Modbus TCP, BACnet/IP |
| Optical Interface | LC/PC Connector – Single Fiber (Simplex) |
| Transmission Distance | 20Km standard (40, 80, 120Km available per model variant) |
| Fiber Type | Single-mode, simplex (dual-fiber SFP version available upon request) |
| LED Indicators | PWR, Link/Activity LEDs for each port |
| Interface Protection | 1500W Surge Protection, 15KV ESD Protection |
| Operating Temperature | -30°C to +75°C |
| Humidity | 0–95% RH (non-condensing) |
| RoHS Compliant | Yes |
| Power Supply | 5V DC Input (external power supply included) |
| Power Consumption | ≤ 2.68W |
| AC Power Range (optional) | 85 ~ 220V AC input version available upon request |
| Dimensions | 4” x 5” x 1.25” |
Why not buy this Thor Broadcast F-GET-4ET-A/B 4-Port 10/100/1000 Mbps Gigabit Ethernet Transceiver over Single Fiber from HDTV Supply today?
