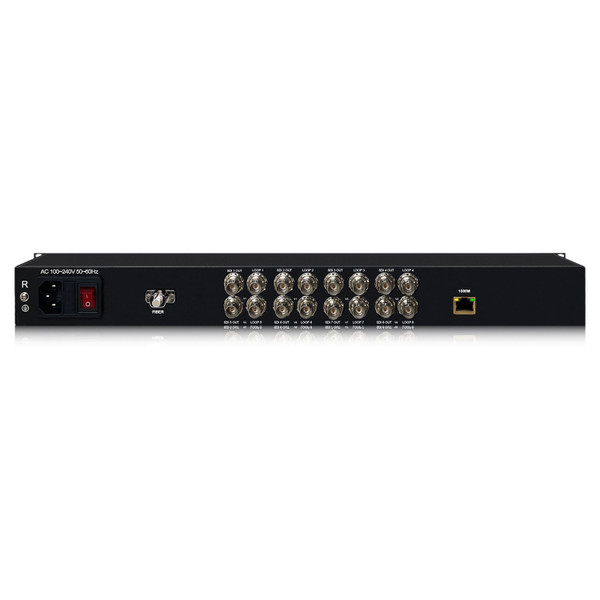

Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit

Thor Broadcast

Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit
Price: $13,194.00
Today's Price: $10,995.00

5% Discount. Apply Code 5percentOff at Checkout!

Part Number:
F-8SDI-3G-GET-TxRx-RM
Condition:
New
Availability:
In Stock
1:
Serial Digital Signal Up to 3.0 Gbps
2:
Available With Internal Optics
3:
Passes SDI Embedded Audio
4:
Input Equalization & Reclocking
5:
Free USA Shipping
6:
Authorized Thor Direct Warranty
7:
2-Year Warranty

This Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit are standard configuration Fiber Optic Transmitter and Receivers for Serial Digital signals up to 3G-SDI running at 3.0 Gbps. This system can be ordered with any standard CWDM optics package, and internal passives are available by request.  This is a 8 Channel system based on a standard 40km platform.  No configuration or management is needed, as the system automatically adjusts to any input signal type regardless of bit rate or protocol.

Easy to read LED indicators for Input Signal Detect and optical link are present for all channels. Units come standard with ST/PC fiber connectors and a 1RU 19" rackmount form factor to keep your rack clean. Simplified easy to use plug and play units mean that anyone can deploy these in no time. Commercial grade intricate parts means these will work for years without hassle, backed by Thor Fiber's 2 year warranty and free tech support means a stress free guarantee.

Thor part number F-xSDI-Tx/Rx designates a fiber optic transmitter or receiver used to transport serialized digital signals up to 3.0 Gbps. Any channel configuration up to 16 channels per fiber can be designated by value "x". Units can be configured to transport any number of SDI channels in either direction up to a total of 16 per fiber. For even higher densities, DWDM systems are available by request.

Thor uses high quality DFB lasers for maximum reliability and distance, with off the shelf models functioning up to 50km when used with single mode fiber. F-SDI systems will transport any digital signal from 1 Mbps to 3.0 Gbps independent of protocol or standard. These systems can be used for anything from 3G-SDI (SMPTE 424M) to multi rate DVB-ASI down to single program at low bit rates.  F-SDI units incorporate industry standard internal CWDM modules for compatibility with similar systems from other manufacturers, such as Python™ systems.

This standardization allows Thor F-SDI equipment to be used in conjunction with other commercial off the shelf transmitters or receivers from other vendors, including Python™ series equipment. All outputs are automatically re clocked to eliminate problems with jitter and to allow for long cable runs out of the receiver. Applications range from live broadcast and Electronic News Gathering to government and scientific research applications. Contact a Thor Sales Representative today for more information on system design and equipment compatibility.

Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit Features:

  • Compatible with any Serial Digital Signal up to 3.0 Gbps
  • Available with internal optics for use with a single optical fiber
  • Standardized channels for both CWDM bands for compatibility with Python™ systems
  • Passes SDI embedded audio and all ancillary data
  • Input equalization and reclocking for SDI video on buffered outputs
  • Available in any custom configuration for Bi-Directional Transport up to 16 total channels
  • Real-time status LED indicators for troubleshooting and monitoring
  • DWDM systems available by request for higher density systems

Why not buy this Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit from HDTV Supply today?

Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit Specification:

Optical Characteristics
Wavelength 1310 nm CWDM Band
1271nm, 1291nm, 1311nm, 1331nm
1351nm, 1371nm, 1411nm, 1431nm
1550 nm CWDM Band
1471nm, 1491nm, 1511nm, 1531nm
1551nm, 1571nm, 1591nm, 1611nm *Other Wavelengths Available By Request
*DWDM up to 160 Ch/Fiber By Request
Fiber Cable Single Mode
Optical Data Rate Up to 4.25 Gbps (Model Specific)
Optical Source DFB Laser Module - CWDM
Optical Budget 25 dB - Standard
35 dB - Long Range
Fiber Connectors ST/PC - Standard

Electrical Characteristics

Input Any Serial Digital Signal up to 3.0 Gbps
Input Level 1.00 V Peak to Peak
I/O Impedance 75 Ohm
Electrical Connectors BNC - 75 Ohm
Mechanical/Environmental
Dimensions (L x W x H) 480mm x 225mm x 88mm
Weight 8-15lb - Depending On Configuration
Temperature Range Operating: -10C to + 55C Storage: -30C to + 70C
Humidity Range 0 to 95%, non-condensing
Power 100 - 240 VAC Auto Switching PSU
10 - 30 Watt Depending On Configuration

Why not buy this Thor Broadcast F-8SDI-3G-GET-TxRx-RM 8-Channel SD/HD/3G-SDI With Gigabit Ethernet Over Fiber Transmitter/Receiver Kit from HDTV Supply today?

Thor Broadcast F-8SDI-3G-GET-TxRx-RM Data Sheet
