Sports Bar HDMI Matrix Switchers up to 8-TVs with WolfPad Custom System

WolfPad

1080p 8x8 HDMI Matrix Switcher w/Video Wall Function over CAT6 to 450 Feet
$2,300.00
Part Number:
8x8-MATRIX-CAT6
UPC:
793132851236
Condition:
New
Availability:
In Stock
1:
8x8 HDMI Matrix to 450'
2:
Free Video Wall Processing
3:
Apps, WEB GUI & Front Control
4:
Configured with 4-Port Cards
5:
CAT6 Extension up to 450 feet
6:
80ms Switching & Latency
7:
Resolution Scaling on Cards
8:
Separate Audio on all Cards
9:
1080p 60 Hz UHD Resolution
10:
Optional Quad-View Card
11:
Optional Wallplates to 450'
12:
Optional TV Control System
13:
HDMI 1.4/2.0 & HDCP 1.4/2.2 Compliancy
14:
HDCP 2.3 & HDMI 2.0 Compliant Input Cards
7:
Ships with the Latest Firmware

WolfPack 1080p 8x8 HDMI Matrix Switcher

The WolfPack 1080p 8x8 Modular HDMI Matrix Switcher provides flexible routing for sports bar TV systems with up to 8 HDMI inputs and 8 outputs. HDMI signals can be extended up to 450 feet over CAT5e/6/7, with PoE support for compatible receivers.

Key Matrix Switcher Features

  • 8 HDMI Inputs and 8 HDMI Outputs
  • HDMI Extension up to 450 Feet over CAT5e/6/7
  • 1080p 60Hz Video Support
  • Built-In Video Wall Processing
  • PoE Support for Compatible Receivers
  • Resolution Scaling and Separate Audio Support
  • Web, Tablet, RS-232 and TCP/IP Control
  • Rack-Mountable Modular Chassis

HDMI Extension with PoE: HDTV Supply's LHDT technology extends HDMI signals up to 450 feet over CAT5e/6/7 while providing PoE support for compatible receivers.

Flexible Control: The matrix can route any input to any output and supports multiple control methods, including front-panel buttons, tablet apps, Web GUI, IR remote, Windows software, RS-232 and TCP/IP.

Internal Video Wall Processing

Internal Video Wall Processing

The WolfPack 1080p 8x8 Matrix Switcher includes built-in video wall processing for compatible multi-display configurations. Video walls can be created using a PC, while sources can be changed using a tablet.

Example 1: Create a 2x2 video wall using 4 TVs with one large picture or multiple individual pictures.

Example 2: Create a 3x3 video wall using 9 TVs with one large picture or multiple individual pictures.

Separate Embedded Audio

Separate Embedded Audio: The matrix supports embedded audio through the input cards and de-embedded audio through the output cards using the available 3.5mm audio connections.

Seamless Switching

Seamless Switching: The WolfPack Modular HDMI Matrix Switcher can be configured for fast video switching, with switching performance as fast as 80ms or 0.08 seconds.

Resolution Scaling

Hardware Resolution Scaling: DIP switches on the input and output cards allow resolution settings to be adjusted to accommodate compatible HDMI source and display devices.

8x8 Matrix Configuration Example

  • 1 - 8-card input and 8-output chassis
  • 2 - 4-port 1080p HDMI input cards for 8 HDMI inputs
  • 2 - 4-port RJ45 Ethernet output cards for 8 CAT6 outputs up to 450 feet
  • 8 - 1080p CAT6-to-HDMI receivers up to 450 feet

The modular card design allows individual cards to be replaced without replacing the complete matrix system. The WolfPack chassis backplane also allows the input and output card configuration to be customized for the system application.

WolfPad Custom Sports Bar Control

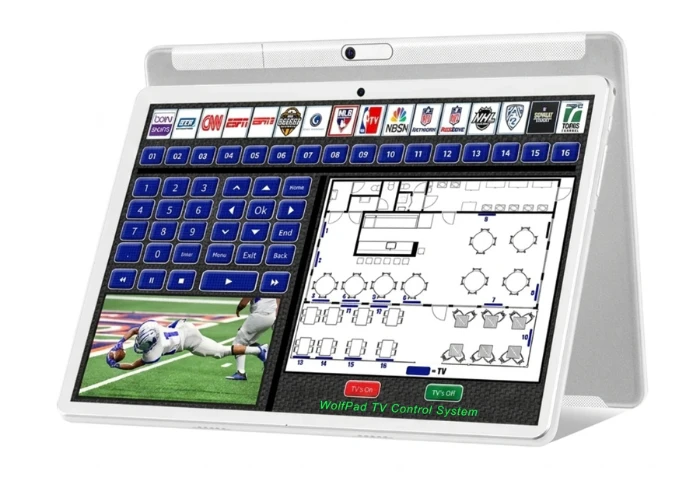

WolfPad Custom Sports Bar Control System

The WolfPad Custom Sports Bar Control System provides tablet-based control of multiple TVs and connected sources. Staff can select TVs from a customized floor plan, change supported channels and sources, and manage the system from one tablet interface.

WolfPad Features

  • Custom Tablet Control for Multiple TVs
  • Customized Floor Plan Showing TV Locations
  • Individual TV and Source Selection
  • Sports Channel and Source Favorites
  • Control of Compatible Source Devices

Designed for Sports Bars: The WolfPad system provides an easy-to-use tablet interface for managing multiple TVs throughout a sports bar. The customized floor plan helps staff quickly identify and select individual TVs and control connected sources.

Sports Bar Matrix + WolfPad System

This configuration combines the WolfPack 1080p 8x8 HDMI Matrix Switcher with a WolfPad Custom Sports Bar Control System to provide centralized video distribution and simplified TV control for sports bar environments with up to 8 TVs.
