Sports Bar 4K 14x18 HDMI Matrix Switch over CAT6 w/iPad DirecTV Control

WolfPack

$8,900.00
Part Number:
MM14x18CAT-ALL
UPC:
728370344042
Availability:
In Stock - Ships in 3 to 4 Days
1:
CAT6 at 1080p to 220' & 4K to 110'
2:
Switch Any In To Any TV on an iPad
3:
iPad Shows Real Time DirecTV TV channels
4:
Change the DirecTV TV channels on iPad
5:
Your Floor plan is shown on an iPad
6:
See the DirecTV TV Guide on an iPad
7:
Uses Any Tablet with WIFI
ADD OPTIONS:
HDTV Supplys WolfPack™ 4K Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control is a preconfigured HDMI modular HDMI matrix switcher especially designed for sports bar and restaurant installations. It uses your iPad, not expensive touch pads or touchscreens or other devices. The matrix also supports multiple iPads, not just one, for other users to control use. Just point the tablet's browser to the server's address and the control system is available. The Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control is simple and easy to use because its based on your floor plan and your iPad. It is easy to see what's playing on all of your TV's when used with DirecTV receivers combination with multiple technologies. They optionally support 4K/60, 4:4:4, 18GBPS & HDMI 2.0.

This Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control can do the following with your iPad using only one iPad screen:

  • Send any of 14-DirecTV™ receivers to 18-TVs, in any combination
  • Change any of the 14-DirecTV™ TV channels
  • See a Video Window of what DirecTV™ is playing on your iPad
  • Put a single game on multiple TVs with one finger tap
  • Floor Plan Based
  • Optionally use cable boxes or other sources (*)
  • Optionally turn ON all your 18-TVs in the morning at once (*)
  • Optionally turn OFF all your 18-TVs at night at once (*)

(*) Included is the ability to use DirecTV receivers and many Ethernet controlled TVs where we have software available to control. All Cable boxes and most older TVs require Infrared or RS232 hardware that is additional. Please contact us to tell us what TVs that you may be using so we can give you an accurate quote. We recommend LG and Sony TVs due to their consistent IP control codes throughout the years.

We think it's the best because it allows your iPad to become the complete remote control for all of your TVs and it also allows the user to see what is playing on the selected DirecTV receivers in real time, prior to changing the channel. The Sports Bar 14x18 HDMI Matrix Switcher over CAT6 with DirecTV Control manages HDMI input signals for the inputs and female RJ45 Ethernet outputs for CAT6 cabling. By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair. It also has a back up power supply to keep you up at all times.

This Sports Bar 14x18 HDMI Matrix Switcher over CAT6 with DirecTV Control supports 1080p to 220 feet & 4K to 110 feet, maintains power reliability in the event of failure and offer the a great solution for any sports bar, night club or restaurant. Our 4K Sports Bar 14x18 HDMI Matrix Switcher over CAT6 with DirecTV Control also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio systems, in your sports bar, night club or restaurant.

Reasons that sets our WolfPack™ Sports Bar HDMI Modular Matrix Switchers apart from others:

  1. Uses your iPad as you don't need to buy an expensive Touchscreen
  2. 7-inch color front panel display for local switching
  3. 4K/30 for the best picture
  4. Preset scenes that can be Saved and Recalled
  5. HDBaseT HDMI to CAT6 extenders
  6. Additional control via an iPad App, Android App, Web Browser (WEB GUI), RS232 & Front Buttons
  7. 2-Power Supplys w/automatic switch-over if a problem occurs
  8. 2-Year WolfPack Warranty
  9. Free Lifetime Telephone, CHAT, TEXT and Email Tech Support

Sports Bar 14x18 HDMI Matrix Switcher over CAT6 with DirecTV Control Features:

  • Chassis size: 18 input and 18 outputs cards
  • Input Cards Supported:
    • 14 - 4K female HDMI single port cards = 14 - HDMI inputs
  • Output Cards:
    • 18 - RJ45 Ethernet connector cards to 1080p to 220 feet & 4K to 110 feet = 18 - HDMI outputs
    • 18 - CAT6 POC Receivers to 1080p to 220 feet & 4K to 110 feet = 18 - HDMI Receivers used that each TV
  • Input HDMI cable distance: ~25 feet AWG24 HDMI 2.0 high speed cables
  • Flexible card type design supporting 18 input cards and 18 output cards
  • Front-panel 7-inch color display for local switching
  • Rack-mountable
The base hardware unit of this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control can be seen at Build Your Own 4K HDMI Matrix Switch.

Why not buy this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control today?

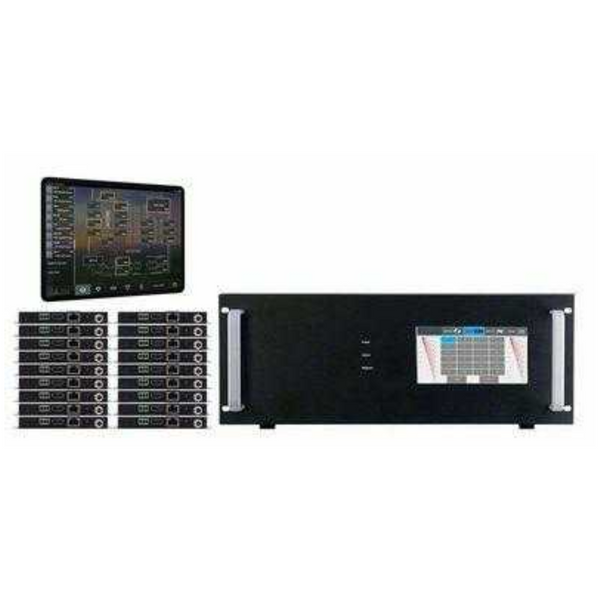

Sports Bar 4K 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control Shipping Contents:

  • 1 - 18x18 Chassis with 7" Color Touch Screen
  • 14 - Female HDMI Input Cards
  • 18 - HDBaseT (CAT6) Output Cards with POC to 1080p to 220' & 4K to 110'
  • 18 - HDBaseT (CAT6) HDMI Receivers with POC to 1080p to 220' & 4K to 110'
  • 1 - Dual 7-inch 1080p Color Monitors (Deduct in OPTIONS if you do not want)
  • 2 - HDMI Output cards w/2-HDMI outputs for the 1080p Dual 7-inch Color Monitors
  • 2 - 3-foot HDMI cables for the Dual 7-inch 1080p Color Monitors
  • 1 - Appropriate size POE Ethernet switch for the number of DirecTV receivers you have (Shipped from Allonis)
  • 1 - DirecTV Control package (Shipped from Allonis)
  • 1 - Floor Plan Layout (Created by Allonis)

The core of the 4K/30 Modular HDMI Matrix Switcher Chassis consist of an 18x18 Modular Matrix chassis and its highly configurable.

NOTE: The system configuration has 2 - dedicated HDMI cards with 2-outputs on each, for the Dual 7-inch Color Monitors. Think of them as 2 - 1x2 HDMI splitters with the each monitor getting one output and the other HDMI output showing the same picture as the TV that is going to.

Allonis is our partner company that supplies the DirecTV Control package, and other optional products., so contact: the below for more information:

David Li
Allonis, Inc
4078 Waterland Drive
Metamora, MI 48455
Primary: 586-504-8502
Secondary: 810-797-2218
info@allonis.com
support@allonis.com

He will be your contact for creating their DirecTV system as well as supporting afterwards, along with us. If you want something above our offering on this product page, please get a quote directly from Allonis and pay them directly. If you need our help on anything, call 833-WOLFPACK (833-965-3722).

MORE SPECS:

HDTV Supplys implementation of the HDBaseT technology and this product adds virtually zero latency to the HDMI audio and video signal, less than 7 microseconds (0.000007 sec) over 220 feet of CATx cable. At 100 feet you are talking about 3 microseconds (0.000003 sec). This means for example, in a church or auditorium, the speakers lips are always in synch with the video image on all the TVs and projectors 100's of feet away.

Includes a Back Up Power Supply: In the unlikely event the main power supply becomes inoperable, the built in redundant power supply will seamlessly take over the matrices power needs.

4K 14x18 HDMI Matrix Switcher w/Dual Monitors over HDBaseT CAT6 Extenders Specification:

  • Modular Configuration Chassis: 18 inputs/18 outputs
  • Input cable distance: ~12 feet with AWG24 HDMI 1.4 high speed cable
  • Supported Input & Outputs Signals:
    • HDMI: up to 4K at 30 Hz 4:2:0
    • CATx: HDBaseT technology with 220 feet extenders at 1080p
  • Power Supply: 100 to 240VAC, 50-60Hz
  • Power Consumption: 50W 70W
  • Operating Temperature: -10℃ to 50℃
  • Storage Temperature: -25℃ to 55℃
  • Dimensions of the 18x18 chassis: 8U - 482 x 390 x 355mm or 18.97" wide x 15.35" deep x 13.98" inches high

Why not buy this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control today?

Frequently
Reasons To Buy an HDTV Supply WolfPack Product

Why not buy this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control today?

Control

HDTV SUPPLY'S BELOW WOLFPACK™ CONTROLLER DOES IT ALL!

Why not buy this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control today?

Control Drivers

DirecTV Controller

Apps

This software & hardware system combo was developed in conjunction with Allonis LLC, our authorized partner of HDTV Supply, Inc. Allonis' myServer is the engine that is at the heart of the Smart Sports Bar system to switch the Matrix Ins & Outs and change the DirecTV™ channels...all with with an iPad or Android tablet using the DVRpod controller. It is a hardware and software modular system that lets you start out small and then grows as your needs grow. myServer coupled with HDTV Supply's WolfPack HDMI matrix systems & this DVRpod controller provides an easy way to control and operate your system to use in your Sports Bar.

Working together, HDTV Supply and Allonis allows our WolfPack™ HDMI Modular Matrix systems to integrate Audio / Video into one easy to use package. From one touch of a tablet you are ready to serve your customers, and with another ready to go home for the night. You will no longer need to keep track of many handheld remote controls. With the versatility of the Allonis' "myServer" system and the DVRpod controller one can easily integrate the package with our WolfPack™ HDMI Modular Matrix systems.

These WolfPack™ Modular Matrix Switchers can be used in Sports Bars, Restaurants, Casinos, Gentleman's Clubs, Bowling Alleys, Fitness Centers, Malls, Places of Worship, Data Centers, Gaming Rooms, Nail Salons, County Clubs, Factories, Conference Rooms, Schools, Home Theaters or many other installations requiring HDMI matrix switching.

Why not buy this Sports Bar 14x18 HDMI Matrix Switch over CAT6 with DirecTV Control today?

Q: I see you have free iPad and Android app, why does this cost?
A:
This is a completely different control method and the free apps cannot be used as this is a dedicated system. It not only switches any input to any TV in any combination (with any tablet) it also allows changing the DirecTV channels with the same tablet. The free apps can't do that.

Q: Which DirecTV models do you recommend?
A:
We aren't aware of any DTV DVRs that we have not had good luck with. But all DTV models need to have external control turned on in the DTV menu, and they need to be on the network. Any DVR we need the IP address. Any client device we need the MAC address for the unit (printed on a label on the bottom).

Q: There is no reoccurring cost, correct?
A:
Correct, no recurring cost. The price includes one year of software update availability. Our labor to install the update is at the $125/hr rate. Most of the time, no updates are needed if nothing changes in the system.

Q: Your cost to design a floor plan is $125/hour, correct?
A:
Correct. Most jobs require 4 - 5 hours to create the graphics.

Q: Can I turn all the TVs OFF & ON at once?
A:
For turning the TVs on / off depends on the TV and if we have an IP or serial driver for it. If the TV requires Infrared, then we have the IR hardware that will also be required that is not part of the $base system price. You should NOT use IR if possible as it is less reliable when in place. IR is unavoidable to control cable TV boxes. LG and Sony IP controllable TVs are the most reliable for control. Samsung is a mess. Cheaper TVs typically only are controllable via IR.

Q: Can the DVRpod controller that is provided be used for anything else?
A:
Yes, extremely flexible. And the myServer6 software is also extremely flexible. Easier if you have an idea of function for us to advise if that hardware / our software will today do the task, or if we can mod our software to do the task. We have done a LOT of very custom capabilities. We are a Solar system controller that will launch shortly, an RV automation controller, a jewelry kiosk merchandising system, and many other use cases.

Q: Are there rack mounts for it?
A:
Yes, we have DIN rail rack mounts. Many of our dealers are interested in that as they expand the system into our audio products.

Q: Do cables come with the DVRpod controller?
A:
A power supply, a USB-C power cable are included. Optional is a mini-HDMI to HDMI adapter cable. Optional is any Ethernet cables. Optional is a standard USB wireless keyboard (Logitech). But the optional pieces are not required, other than Ethernet cable to connect to the existing computer LAN (where the DTV receivers and the matrix are also connected).

Q: What is the DVRpod warranty?
A:
The DVRpod controller is 12 months. Our software is updated and available during that 12 months. Labor to update is not included. Most of the time, there is no need to update.

Q: If new DVRpod firmware comes out, is it free?
A:
The DVRpod controller firmware is free. The labor to install, test, configure a given firmware load is not. If the system works Day1, there is no need to update firmware Day 2 if nothing else has changed. For example, we are now using USB 3.0 as a boot drive instead of the SD Micro card. That requires a firmware update that we have spent weeks on. But the systems that are running SD Micro boot don't need to change. USB is faster and can be more reliable if the system is not on a UPS.

Q: We are only using a few functions to start with, is the firmware already there for all of the features that you offer or do they have to pay for upgraded firmware?
A:
Most of the changes you would add are not firmware related but in our myServer6 application. Sometimes features are part of the one year software update. But again, the labor to update and add the new feature into an existing system is a custom hourly rate programming charge.

Q: Are upgrades sent by a new SD card?
A:
No, typically the myServer6 updates are handled with our Software Updater that is built into myServer6. Requires the DVRpod controller to be on the Internet.

Q: If a user wants us to create the floor plan how does he pay for it, when it's done and he's happy or up front, or ?
A:
Users will contact Allonis or us and provide a pdf or CAD file with the layout of all devices to control. Best would be for you to send that doc to us so we can advise approx. how many hours. Once we do the work for you, we expect payment. Each system has TeamViewer on it. We would need the active Teamviewer ID for the myServer6 controller. With that, we can upload the floor plan and make any contracted programming changes or updates for the order.

Q: Have you ever had any issues with an Apple or Android tablet firmware upgrade impacting your system?
A:
No. We use the Apple Safari or the Android Google Chrome browser. No software needs to be installed on the tablet specific to myServer6. That's one of the real keys to the system. I see you give tablets to customers....that should be completely usable as is. If the device is significantly different size or LXW ratio, then a new user interface would be created (like for a Phone device) that optimizes the user experience for that device. We don't just "squash" or "stretch" the one user interface which is a not so good user experience like what many systems do.

Q: What minimum size tablet do you recommend a new user to purchase?
A:
Any Tablet should work fine but the bigger the better. The current interface will not be good on a phone sized device (and vertical orientation).
