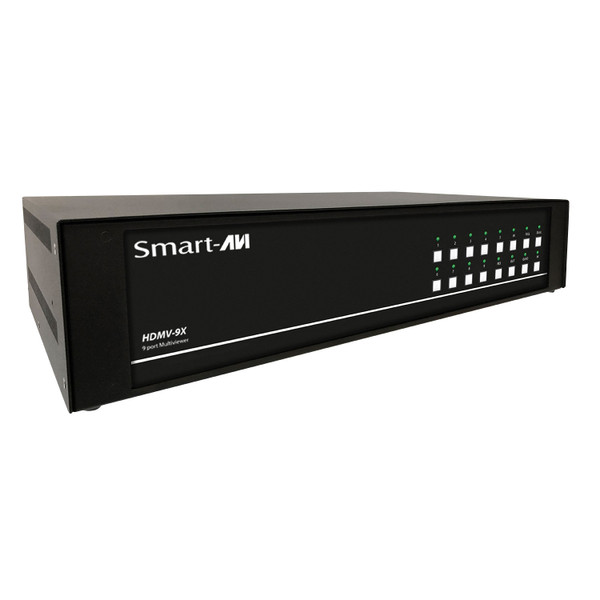

Smart-AVI SM-HDMV-9X-PLUS-S 9-Port Multiviewer HDMI KVM Switch

Smart-AVI

$4,599.00
Part Number:
Smart-AVI-SM-HDMV-9X-PLUS-S
UPC:
813280019620
Condition:
New
Availability:
In Stock
1:
Single Monitor Multiviewer
2:
9-Port Full HD
3:
Corporate or Educational Presentations
4:
Call Centers for Technical Support
5:
HDCP & HDMI 1.4 Compliant
6:
Free USA Shipping
7:
1-Year Smart-AVI Warranty
8:
Ships with the Latest Firmware
9:
International Shipping - Call

This Smart-AVI SM-HDMV-9x-PLUS-S 9-Port Multiviewer HDMI KVM Switch can be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras and computers.

It is the perfect solution in situations where a user needs to monitor up to nine separate sources at the same time.

Smart-AVI SM-HDMV-9x-PLUS-S 9-Port Multiviewer HDMI KVM Switch Feature:

  • Corporate or Educational Presentations
  • Financial (Remote Servers/User Control)
  • Call Centers for Technical Support
  • Industrial (Long-Range Workstation Isolation)
  • Airport Installations (Air Traffic Control/Passenger Information)
  • Medical (Remote Operation Away from Sensitive/Magnetic Equipment)
  • Recording (for Large Studios where Editing/Mixing Stations are Compact and/or Require Complete Silence) APPLICATIONS
  • View up to nine sources on a single monitor
  • On-Screen Display (OSD) makes setup and switching easy
  • Display each computer with crisp high-resolution video
  • Supports 1080p HDMI output (1920 x 1080)
  • Supports DVI-D with an HDMI to DVI-D adaptor
  • Delivers uncompressed digital video with zero signal loss
  • HDCP and HDMI 1.4 compliant
  • Supports EDID for total control of compliant displays
  • Change views with front panel switching and RS-232, with optional Ethernet control
  • Quad-mode splits the screen to show four sources on one screen
  • Dual-mode splits the screen to show two sources on one screen
  • Full-mode displays one source on the entire screen
  • 9-mode displays one all nine inputs on one screen

Why not buy this Smart-AVI SM-HDMV-9x-PLUS-S 9-Port Multiviewer HDMI KVM Switch from HDTV Supply today?

Smart-AVI SM-HDMV-9x-PLUS-S 9-Port Multiviewer HDMI KVM Switch Specifications:

Video
Video Bandwidth Single-link 340MHz [10.2Gbps]
Resolution HDTV 480i, 480p, 720i, 720p, 1080i, 1080p
PC Resolution 800 x 600 up to 1920 x 1080
Input Video Signal 1.2 volts
Input DDC Signal 5 volts
Single Link Range 1080p
Format HDMI 1.4
DVI Compliance Single-link DVI-D 2.0 (with adaptor)
HDCP Compliance 1.0/2.0
Input Interface (9) HDMI
Output Interface HDMI
Control
Front Panel Tact Switches
Display 4×40 LCD
RS-232 DB9 (female)
Power
Requirements Internal 100-240 VAC
Power Supply Approvals UL, CE, CSA, CEC, RoHS
Mechanical
Width 17.5 in.
Height 12 in.
Depth 12 in.
Weight 22 lbs.

Why not buy this Smart-AVI SM-HDMV-9x-PLUS-S 9-Port Multiviewer HDMI KVM Switch from HDTV Supply today?

Smart-AVI SM-HDMV-9x-PLUS-S Brochure

Smart-AVI SM-HDMV-9x-PLUS-S User Manual
