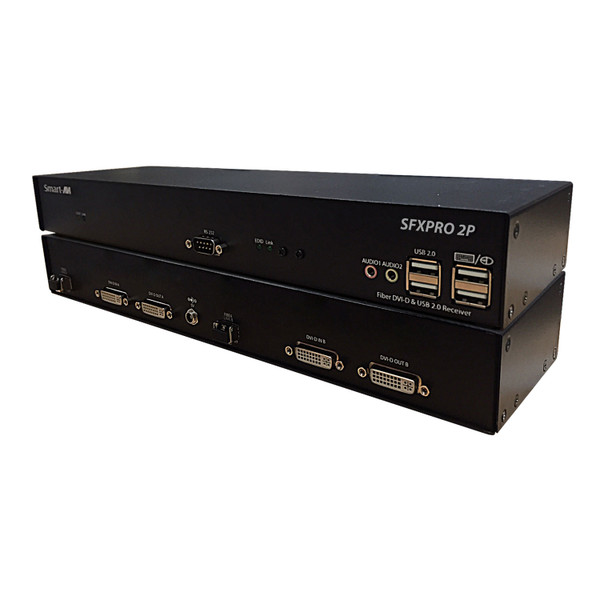

This Smart-AVI SFXPRO-2P-RX-S 2-Port DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Receiver (1500') is a perfect solution for extending two DVI-D and USB 2.0 signals from a computer in a remote location up to 1,500 feet away.
It supports high-resolution DVI-D video and all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.
The SFXPRO-2P is immune to electromagnetic interference, making it ideal for use in situations where there is considerable interference.
Smart-AVI SFXPRO-2P-RX-S 2-Port DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Receiver (1500') Feature:
- Top signal quality at maximum extension over multimode fiber (1,500 ft) plug type LC
- DVI-D Video Resolutions up to 1920 x 1200 WUXGA at 60 Hz
- DDC Learning; Supports USB 1.1 (12 Mbps) and USB 2.0 (480 Mbps) data rates
- Supports all USB device types transparently (no emulation from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, game controllers and more Integrated Four-Port Hub in the receiver
- Compatible with all operating system; Extends Stereo Audio
- Extends RS-232
- Plug and play
Why not buy this Smart-AVI SFXPRO-2P-RX-S 2-Port DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Receiver (1500') from HDTV Supply today?
Smart-AVI SFXPRO-2P-RX-S 2-Port DVI-D, Stereo Audio, USB 2.0/1.1, RS-232 Multimode Fiber Receiver (1500') Specifications:
| VIDEO | ||
|---|---|---|
| Format | DVI-D Single Line | |
| Maximum pixel clock | 165 MHz | |
| Input interface (TX) | (2) DVI-D 29-pin female | |
| Output interface (RX) | (2) DVI-D 29-pin female | |
| Resolution | Up to 1920 x 1200 @ 60 Hz | |
| DDC | 5 volts p-p (TTL) | |
| Input equalization | Automatic | |
| Input cable length | Up to 20 ft | |
| Output cable length | Up to 20 ft | |
| RS-232 | ||
| Input interface (TX) | (1) DB9 (Female) | |
| Output interface (RX) | (1) DB9 (Female) | |
| Speed | Up to 115 Kbps | |
| USB | ||
| Signal type | EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) | |
| Input interface (TX) | (1) USB type B (female) | |
| Output interface (RX) | (4) USB type A (female | |
| AUDIO | ||
| Signal type | Stereo audio | |
| Bandwidth | 15 MHz, 0 dB | |
| Impedance | 10 kOhm | |
| Connector | 3.5 mm stereo mini female | |
| OPTICAL | ||
| Fiber type | Duplex, multi mode | |
| Connector type | Duplex LC | |
| Wavelength | 1310 nm/1550 nm (dual wavelength) | |
| Data rate | 2×2.5 Gbps (2.5 Gbps per single wavelength) | |
| Transmission power | -5 dB min | |
| Receiver sensitivity | -21 dB max | |
| Distance | 500 m max | |
| OTHER | ||
| Power Supply | Internal 100-240 VAC | |
| Dimensions | 17” W x 1.7” H x 7” D | |
| Weight | 8 lbs | |
| Operating temperature | 32-131 °F (0-55 °C) | |
| Storage temperature | -4-185 °F (-20-85 °C) | |
| Humidity | Up to 95% (non-condensing) | |
