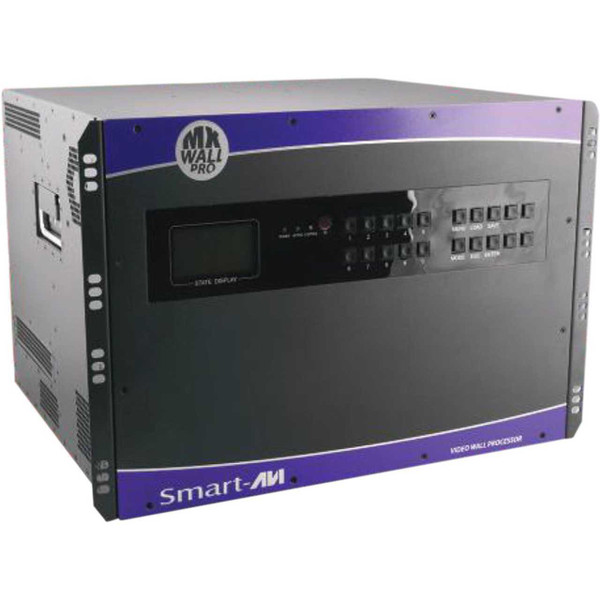

This Smart-AVI MXWallPRO-6464-S 64x64 HDMI Matrix Switcher with Integrated Video Wall is an all-in-one, hardware-based, real-time matrix routing and video wall solution with an integrated scaler.
It supports up to 1080p input signals and automatically scales the signal to 1080p60 whether for matrix or video wall functionality.
The MXWall-Pro 56x56 includes 16 input and 16 output card, each featuring four HDMI 1.4 connectors.
It allows you to route one input to any or all outputs at the same time in a matrix configuration. In a video wall setup, it lets you display from a single input to all inputs in various video wall layouts, including in a one-to-one arrangement.
For example, you can display one input source on all your output screens as one image, or two input sources as two images split across your output screens, or each input on one output screen.
An included (free download), user-friendly Windows software allows you to easily assign your matrix or video wall setups, and the MXWall-Pro can then be left to operate up to 24/7 without interruption.
The software also lets you upload your logo as well as make various adjustments to display settings such as aspect ratio.
If you'd like to make further adjustments to your matrix or video wall arrangement, you can do so in the software or in a free Android app that can be used after the initial setup in the main software.
Although software is used, the MXWall-Pro is a fully hardware-based device, so switching and output all happen in real time.
Connect devices such as a computer, game console, or video camera. The MXWall-Pro is designed for display and signage applications in airports, malls, outdoor locations, security stations, entertainment venues, and many other settings.
It's plug-and-play ready and is HDCP compliant. Complementary hardware is available sold separately from Smart-AVI that provides an integrated media player and allows you to save content on-board.
Smart-AVI MXWallPRO-6464-S 64x64 HDMI Matrix Switcher with Integrated Video Wall Feature:
- Complete hardware solution
- Plug-and-play ready
- Expandable HDMI inputs and DVI outputs (up to 32×32)
- 1080p (1920×1080 @ 60Hz) Output Resolution
- Flexible video wall display configurations
- Reliable 24/7 Uninterrupted Use
- Easy control and access
- HDCP and HDMI 1.4 compliant
- User-Friendly MXWall Manager Software
- Hardware-based, real-time, plug-and-play ready HDMI video wall and matrix solution
- Automatic Scaling to 1080p60
- 24/7 uninterrupted use
- HDMI 1.4 connections
- 2 RU height
- User-friendly MXWall Manager Windows setup software
- Android app for post-setup adjustments
- RS-232 and TCP/IP control
Why not buy this Smart-AVI MXWallPRO-6464-S 64x64 HDMI Matrix Switcher with Integrated Video Wall from HDTV Supply today?
Smart-AVI MXWallPRO-6464-S 64x64 HDMI Matrix Switcher with Integrated Video Wall Specifications:
| VIDEO | |
|---|---|
| Video Amplifier Bandwidth | 3.2G |
| Input Video Signal | Video (TMDS) 0.5~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 1.4 and HDCP |
| Pixel Rates | Clock frequency beyond 165Mpix/second |
| Format | 4:4:4 and 4:2:2 data input formats |
| Resolution | 480p, 720p, 1080i, 1080p |
| Input Card Format | HDMI, DVI |
| Output Card Format | HDMI, DVI |
| Input Slots | Up to 8 cards (4 inputs each) |
| Output Slots | Up to 8 cards (4 outputs each) |
| Video Type | RGB/YCBCR : 24/30/36-bits,YCBCR: 8/10/12/16/20/24-bits |
| CONTROLS | |
| Front | State Display with push buttons |
| RS-232 | 9600bps, Software flow DB9 Female |
| TCP/IP | Webserver, Telnet |
| OTHER | |
| Working Temperature | 0°C~+55°C |
| Storage Humidity | 10%~90% |
| Weight | 30 lbs |
| Dimensions | 17.125 in (W) x 12 in (H) x 12 in (D) |
| Power Supply | 50/60Hz, 100~230 VAC |
| Consumption | 300W |
Why not buy this Smart-AVI MXWallPRO-6464-S 64x64 HDMI Matrix Switcher with Integrated Video Wall from HDTV Supply today?
Smart-AVI MXWallPRO-6464-S Brochure
