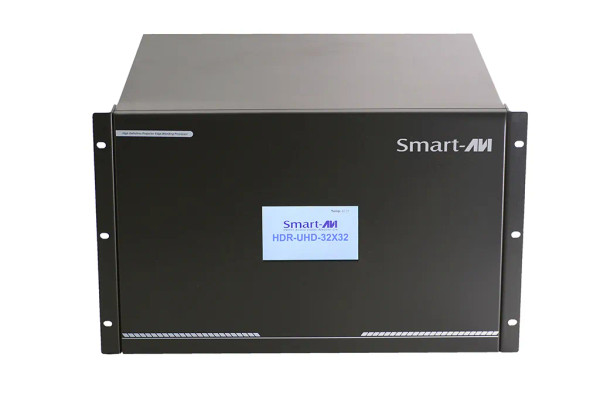

This Smart-AVI HDR-UHD-32x32-S 32×32 Ultra HD (4k/60Hz) Seamless Matrix is a matrix switch with up to 32 full UHD inputs and 32 outputs, an integrated converter and scaler.
Compact, plug-and-play, and excellent for mid-sized displays between 32 screens with resolutions up to 4K (3840x2160 @ 24 Hz/25 Hz/30 Hz/50 Hz/60 Hz) Full UHD.
The HDR-UHD-32X32 is simple to control, outfitted with easy front-panel buttons and optional RS232 control.
The HDR-UHD-32X32 comes with SmartAVI’s intuitive HDR-UHD Manager software absolutely free! HDR-UHD Manager software lets users manually create and adjust their ideal displays using simple click-anddrag operation: it’s fun and great for users of any technical skill level!
Users can choose from a number of great pre-configured screen modes as well, displaying content in various layouts with the press of a button. The HDR-UHD-32X32 also features TCP/IP web control for LAN-connected units, so users can control the contents of the display from the comfort of a PC workstation.
Its compact design and powerful processing power make the HDR-UHD-32X32 the perfect solution for any installation. Plug-and-play, the HDR-UHD-32X32 is immediately ready for use as soon as it is connected to an AV set-up: no additional drivers or installers required.
Better still, its exceptional hardware makes for stunning displays in environments like retail spaces, educational facilities, conference rooms, command centers, etc
Smart-AVI HDR-UHD-32x32-S 32×32 Ultra HD (4k/60Hz) Seamless Matrix Feature:
- Supports UHD 4K/60Hz, 4K/30Hz and 1080p/60Hz on both inputs and outputs
- HDMI 2.0 input
- Seamless switching
- Control via IP, RS232 and the front panel
- Windows GUI allows unlimited customization
- Can be configured as 2×4, 4×2, 1×8 and more
- Integrated scaler can convert any resolution to UHD
- Complete hardware solution
- Plug-and-play ready
- Unlimited Layouts
Why not buy this Smart-AVI HDR-UHD-32x32-S 32×32 Ultra HD (4k/60Hz) Seamless Matrix from HDTV Supply today?
Smart-AVI HDR-UHD-32x32-S 32×32 Ultra HD (4k/60Hz) Seamless Matrix Specifications:
| VIDEO | |
|---|---|
| Amplifier Bandwidth | 18 Gbps |
| Input Video Signal | Video (TMDS) 0.4~1.0Vpp |
| Input DDC Signal | 5 volts |
| Compliances | HDMI 2.0, HDCP 2.2 |
| Input Resolutions | 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz |
| Output Resolutions | 3840 x 2160 @ 24 Hz / 25 Hz / 30 Hz / 50 Hz / 60 Hz; 1080p @ 60 Hz |
| Video Type | HDMI 2.0 |
| Input Interface | (32) HDMI 19-pin (female) |
| Output Interface | (32) HDMI 19-pin (female) |
| AUDIO | |
| Format | Stereo |
| Input Interface | (32) HDMI2.0 (female) |
| Output Interface | (32) 3.5mm (female) |
| CONTROL | |
| Front Panel | Tacticle Switches |
| RS-232 | DB9 connector, Baud Rate 115200 |
| TCP/IP | RJ-45, UDP telnet |
| OTHER | |
| Working Temperature | 0°C~+40°C |
| Storage Humidity | 20%~90% |
| Weight | 24.45 lbs |
| Dimensions | 17” (W) x 7 1/8” (H) x 15” (D) |
| Power Supply | 50/60Hz, 110-240 VAC |
| Consumption | 100W |
Why not buy this Smart-AVI HDR-UHD-32x32-S 32×32 Ultra HD (4k/60Hz) Seamless Matrix from HDTV Supply today?
Smart-AVI HDR-UHD-32x32-S Brochure
