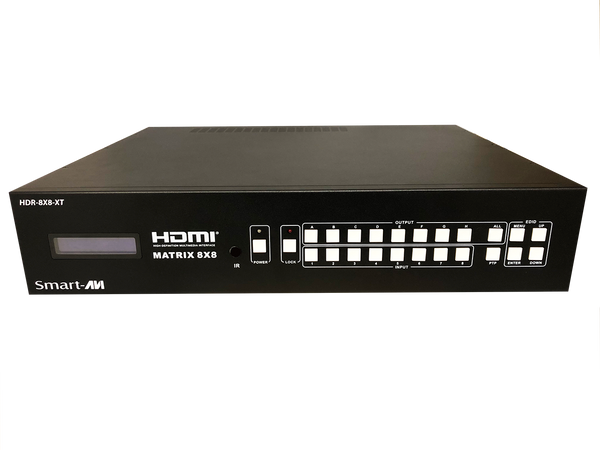

This Smart-AVI HDR-8x8-XT-S 4K 8×8 HDMI Matrix with POE is an 8x8 matrix switch that sends 4K (3840x2160 @30Hz) HDMI signals to output devices up to 328 ft away with CAT5/6 extension.
Ideal for large venues with multiple 4K-ready screens, the HDR-8x8-XT offers unmatched performance and quality over considerable distances.
Arenas, movie theaters, concert venues, nightclubs, event halls, convention centers, and more are all perfect environments for the HDR-8x8-XT.
Controlling the HDR-8x8-XT is both easy and flexible! The matrix features simple front-panel buttons for direct switching and bi-directional IR remote control.
The HDR-8x8-XT can also be controlled using a TCP/IP web console accessible by PC when connected to the matrix over Ethernet.
No matter the application or environment, the HDR8x8-XT is always accessible and in command.
Featuring Power-over-Ethernet support, the HDR-8x8-XT powers connected receiver units (like the HDXPOE) through CAT5e/6 cables, cutting costs and power consumption. It also features EDID learning and HDCP management for easy set-up!
For powerful matrix routing without the hassle of complicated extension, turn to HDR-8x8-XT 4K 8x8 matrix today!
Smart-AVI HDR-8x8-XT-S 4K 8×8 HDMI Matrix with POE Feature:
- Up to 4K (3840×2160 @30Hz) Resolution
- (8) HDMI Input
- (8) HDMI Local Output
- (8) HDMI Output (over CAT5e/6/7)
- Supports Power-over-Ethernet (POE)
- signal extension up to 328 ft
- Ethernet routing: connect output displays to internet via CAT5e/6/7 .
- HDMI 2.0 & HDCP Compliant
- Route RS-232 control to remote monitors
- Supports bi-directional IR remote control
- Supports TCP/IP Web Console control
- EDID learning & management
- Supports HDX-POE receivers: Video & IR extension (sold seperately)
- Supports HDX-POE-PRO receivers: video, IR, RS-232, and Ethernet extension (sold separately)
Why not buy this Smart-AVI HDR-8x8-XT-S 4K 8×8 HDMI Matrix with POE from HDTV Supply today?
Smart-AVI HDR-8x8-XT-S 4K 8×8 HDMI Matrix with POE Specifications:
| VIDEO | |
|---|---|
| Format | HDMI 1.4 |
| Video Bandwidth | 1-.2 Gbps |
| Input | (8) HDMI |
| Output | (8) HDMI, (8) CAT5e/6/7, (8) 3.5mm stereo jack, (8) coaxial audio |
| Input Resolution | Up to 4K (3840×2160 @ 30Hz) |
| Output Resolution | Up to 4K (3840×2160 @ 30Hz) |
| HDMI Connector | Type A 19-pin female |
| RJ-45 Connector | WE/SS 8P8C |
| Audio Connectors | 3.5mm, Coaxial |
| CONTROL | |
| Front Panel | Front panel switching buttons |
| IR | Infrared remote control |
| TCP/IP | via Ethernet-connected computer |
| OTHER | |
| Power Supply | Internal 100-240 VAC/CCPWR06 |
| Max Consumption | 100W |
| Dimensions | 17” W x 14.6” H x 4” D |
| Weight | 14.9 lbs. Unit only |
| Approvals | UL, CE, ROHS Compliant |
| Operating Temp. | 32 to +104°F |
| Storage Temp. | -4 to +140°F |
| Humidity | Up to 90% RH (no condensation) |
