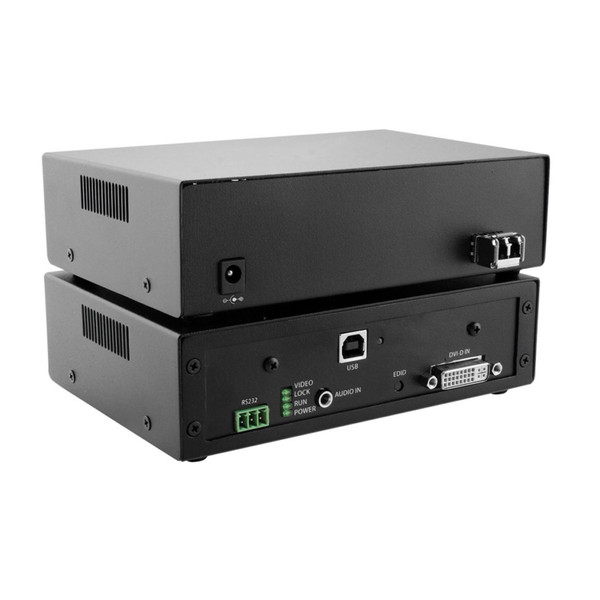

Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter)

Smart-AVI

Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter)
$1,699.15
Part Number:
Smart-AVI-FDX-3000-PRO-TX-S
UPC:
813280025638
Condition:
New
Availability:
In Stock
1:
DVI-D & Stereo Audio
2:
USB 1.1 & RS-232
3:
Multimode Fiber Transmitter
4:
Supports USB 2.0
5:
Supports Stereo Audio
6:
Free USA Shipping
7:
1-Year Smart-AVI Warranty
8:
Ships with the Latest Firmware
9:
International Shipping - Call

This Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter) is a single-mode fiber extender for DVI-D video, stereo audio, RS-232, and USB keyboardmouse signals.

Using its powerful fiber optic technology, the FDX-3000-PRO sends 1080p (1920 x 1080 @ 60 Hz) Full HD audio-video and keyboard-mouse signals up to 10 km (6.2m) away at lightning fast speeds without the risk of interference or interception.

Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter) Feature:

  • Single-mode fiber optic extension up to 10km (6.2m)
  • Multi-mode fiber optic extension up to 425m (1400 feet)
  • Supports DVI-D
  • Supports video resolutions up to 1080p Full HD (1920×1080 @ 60Hz)
  • Supports USB 2.0 (keyboard-mouse only)
  • Supports stereo audio
  • Supports RS-232
  • Supports all computer operating systems
  • Compact, durable chassis

Why not buy this Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter) from HDTV Supply today?

Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter) Specifications:

Video Data
Format DVI-D Female (Single-Link)
Input (1) DVI-D Female (Single-Link)
Output (1) DVI-D Female (Single-Link)
Max. Pixel Clock 165 MHz
Max. Data Rate 6.75 Gbps
Resolution Up to 1080p (1920×1080 @ 60Hz)
Input Cable Length Up to 20 ft.
Output Cable Length Up to 20 ft.
Audio
Input (1) 3.5mm stereo audio jack
Output (1) 3.5mm stereo audio jack
USB:
Signaling USB Keyboard-Mouse Only
Input (1) USB Type-B
Output (2) USB Type A
RS-232:
Signal Direction Unidirectional
Max. Baud Rate 115200bps (self-adaptive)
Data Bits 8
OTHER:
Power Adaptor 12VDC2A
Dimensions 6.25” W x 1.875” H x 5.0” D
Weight 1.45 lbs
Approvals UL, CE, ROHS Compliant
Fiber Interface & Type Fiber 225m;
Multimode 62,5u 450m;
Multimode 50u Fiber-Plug type LC
Transmission Distance Up to 10km (6.2 miles)
Working Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 149 °F (-20 to 65°C)
Working Humidity Up to 85% RH (no condensation)
Storage Humidity Up to 90% RH (no condensation)

Why not buy this Smart-AVI FDX-3000-PRO-TX-S Single-Mode DVI-D, Audio, RS-232, and USB K/M Fiber Extender (Transmitter) from HDTV Supply today?

Smart-AVI FDX-3000-PRO-TX-S Brochure

Smart-AVI FDX-3000-PRO-TX-S User Manual
