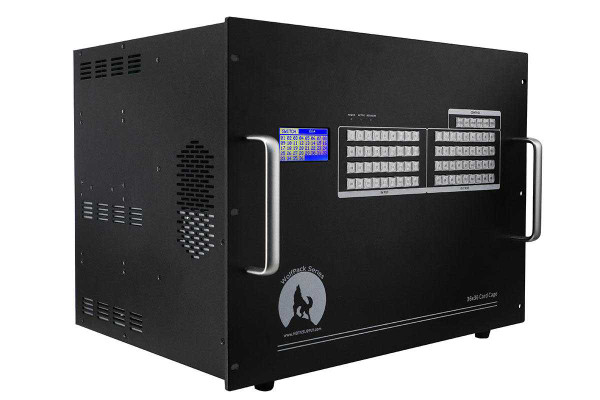

HDTV Supply's WolfPack™ Seamless 36x36 Modular HDMI Matrix Switcher
allows 100ms switching between inputs with a clean video cut (frame-to-frame switching with no glitches). The WolfPack Modular HDMI Matrix Switchers advanced processor allows it to process live signals simultaneously which means it can seamlessly and instantly switch between HDMI inputs and outputs. Most non-seamless matrix switchers require a delay of several seconds before they can switch between devices but with this WolfPack family that wait time is completely eliminated.
HDTV Supply's WolfPack 36x36 HDMI Seamless Matrix Switcher
is a preconfigured integrated HDMI video and HDMI audio modular HDMI matrix router. The Seamless 36x36 chassis back plane allows HDMI technologies to be converted and switched eliminating external converters and it allows any input to be routed to any output, or the same input to be routed to all outputs, or any combination. The core of the Seamless 36x36 HDMI Matrix Switcher consists of an 36x36 Modular Matrix chassis and its highly configurable backplane that supports 36 Seamless input cards and 36 Seamless output cards. Our Seamless switching feature eliminates virtually all of the switching delay, commonly found in most switch and matrix devices.
You can control the Seamless 36x36 HDMI Matrix Router via front buttons, WEB GUI control, or the RS-232 serial port. The matrix does not have IR nor a remote control but can be controlled with its free iOS and Android App.
Reasons that sets our WolfPack™ Seamless HDMI Modular Matrix Switchers apart from others:
100ms Seamless HDMI Switching:
- Instant (100ms = 0.1 sec) 1080p Seamless Switching
- Optionally, uses the best HDBaseT HDMI to CATx extenders, not cheap H.264 with fuzzy compressed video
- Closed Caption (CC) Pass-through
- Control via an iPad, Android, Web Browser, RS232 & Front Buttons
- Free Control4 Drivers
- Up & Down Resolution Scaling via an 8-Pin DIP switch on the card
- 40 - Configuration Scene Saving Settings
- 2-Power Supply's with w/automatic switch-over if a problem occurs
- No latency
- 2-Year WolfPackCare Advance Replace Warranty
- Free Lifetime Telephone, CHAT, TEXT and Email Tech Support
- Other in & out cards available like VGA, DVI, Fiber, SDI, CVBS, YPbPr and Audio
- Embedded audio inputs & De-embedded Audio Outputs
This WolfPack™ Seamless 36x36 HDMI Matrix Switcher delivers 100ms instantaneous video switching with full 1080p/60 video at each port. This high-performance engine processes HDMI signals by executing EDID hops and HDCP handshakes simultaneously at both the source input, the display outputs and scales the inputs for the best output resolution. It sets the output clock timing and uses a frame buffer to retain the input signal information for the fastest output.
WolfPack™ Seamless 36x36 HDMI Matrix Switcher Configuration:
- 1 - 36-card in and 36 card out Seamless card cage
- 36 - 1-port Seamless HDMI input cards = 36-HDMI inputs
- 36 - 1-port Seamless HDMI output cards = 36-HDMI outputs
By having 1-port slide in cards the matrix is very reliable as in the unlikely even there is a loss of signal you just replace the card with a spare you have purchased or order another from us. The complete matrix does not have to be sent to us for a repair.
The WolfPack 36x36 HDMI Seamless Matrix Switcher manages HDMI input signals for the inputs and outputs. This 36x36 HDMI Matrix Seamless Switcher support long haul transmissions, maintains power reliability in the event of failure and offer the best flexible solutions for an AV system deployment. Our 36x36 HDMI Seamless Matrix Router also can support high-resolution HDMI sources routed to HDMI displays, monitors, projectors, or audio receivers, etc. The EDID can be selected between seven different modes or copied from the attached displays.
Seamless 36x36 HDMI Matrix Switcher Features:
- Chassis size: 36 input and 36 outputs cards
- Input Cards Supported:
- 36 - Seamless female HDMI single port cards = 36 - HDMI inputs
- Output Cards:
- 36 - Seamless female HDMI single port cards = 36 - HDMI outputs
- Input HDMI cable distance: Up to ~12 feet with an AWG24 HDMI 2.0 high speed cable
- Output HDMI cable distance: Up to ~50 feet with an AWG24 HDMI 2.0 high speed cable
- Flexible card type design supporting 36 input cards and 36 output cards
- Embedded audio inputs & De-embedded Audio Outputs
- Advanced EDID management for rapid integration of sources and displays
- Front-panel LCD display for status feedback
- Front-panel push buttons for local switching
- IP controlled via built-in web server and LAN
- RS-232 Serial interface for remote control
- Supports seamless switching, no black/ blue/ split screen while switching
- Supports resolution exchanges with several resolutions can be chosen and used
- Uses a dual control system
- Control via Web / RS232 and Front Buttons control (no remote control)
The heart of the HDMI inputs is the Seamless WolfPack chassis backplane which allows customization of the configuration for input and output cards to match every need of the system and application. The matrix support hot-plugs and you can change the cards while the equipment are still working.EDID Explained:
The Seamless 36x36 HDMI Matrix Switchers EDID provides for optimal source-to-screen performance. EDID will optimize the video card output for the capabilities of the end display. The EDID ghost unit enables the copying, emulating, cloning, and "learning" of EDID data from a display. Our EDID Emulator and repeater comes with pre-defined presets, user programmable banks, Sink EDID sniffing bank and more. Our EDID Emulator ensures proper operation, for the best performing HDMI audio and video signal between any source and display Resolves loss of video, intermittent (flashing) video, snow, or color-space (purple or red) issues.Free Android and iOS App:
The IOS App
for this WolfPack card cage matrix is in the Apple Application Store and when you SEARCH the key words "MCS" or "Matrix Control System" you can download and install it to your iPad or iPhone. Also from your iPad or iPhone click the following link...MCS-matrix control system
to install it directly.
For the Android App
click the following link and download it. Go to Android App for control of this HDMI matrix switch
