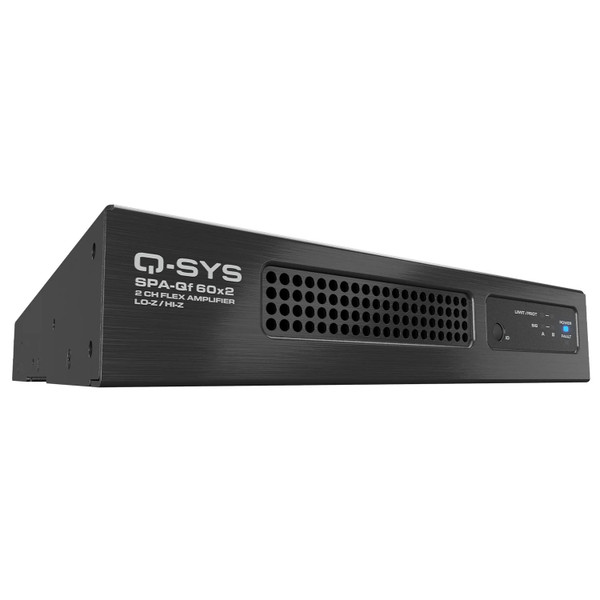

QSC SPA-Qf 60x2 2-Channel Network Amplifier for Q-SYS Platform

QSC

$1,645.00
Part Number:
QSC-SPA-Qf 60x2
Condition:
New
Availability:
3-5 Days
1:
Rightsized Amplification
2:
Bi-Directional GPIO
3:
Compact Design
4:
Convection Cooled
5:
Free USA Insured Shipping
6:
QSC Factory Warranty
7:
Ships with the Latest Firmware
8:
QSC Certified

The QSC  SPA-Qf 60x2 2-Channel Network Amplifier for Q-SYS Platform combines efficient amplification with flexible networked audio connectivity. Designed for the Q-SYS ecosystem, it supports centralized processing and flexible endpoint deployment across multiple spaces.

With GPIO control, two software-configurable flex channels that function as mic/line inputs or line outputs, and 70 Vrms/100 Vrms bridge outputs, the Q-SYS SPA-Qf 60x2 provides flexible connectivity in a compact network amplifier.

Its two amplifier channels deliver 60 watts per channel, while bridge-tied configurations support higher-power output options for compatible speaker systems. Convection cooling helps provide quiet operation in commercial AV installations.

READ MORE

QSC  SPA-Qf 60x2 2-Channel Network Amplifier Features

  • Efficient Amplification: Two output channels rated at 60 watts per channel.
  • Flexible I/O: Two onboard software-configurable audio channels that can operate as mic/line inputs with 48 V phantom power or line-level outputs.
  • Bidirectional GPIO: Four bidirectional GPIO pins for interfacing with compatible microphone LEDs, sensors, and control buttons.
  • Compact Installation: Half-rack, 1RU form factor with included rack and wall-mounting hardware.
  • 70 V and 100 V Compatibility: Supports bridge-tied 70 Vrms and 100 Vrms output configurations according to the supplied specifications.
  • Quiet Operation: Convection-cooled design helps minimize fan noise.
  • Q-SYS Integration: Designed to work within the Q-SYS platform, with audio flex channel assignments configured through Q-SYS Designer Software.
Q-SYS Level 1 Certified Expertise at HDTV Supply

QSC Certified Expertise with Knowledgeable Support for QSC Products

HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.

This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.

Why Buy the QSC Q-SYS SPA-Qf 60x2 from HDTV Supply?

Build a flexible, space-efficient Q-SYS audio system with the QSC Q-SYS SPA-Qf 60x2 network amplifier. Contact HDTV Supply for assistance with product selection and installation requirements.

Ask a Question

Need help with the QSC SPA-Qf 60x2 2-Channel Network Amplifier? Contact HDTV Supply for product information, compatibility guidance, or assistance with your Q-SYS installation.

Call: 833-WOLFPACK (833-965-3722)

Website: HDTV Supply

QSC Q-SYS SPA-Qf 60x2 2-Channel Network Amplifier Specifications

Specification Details
Amplifier channels 2
Single-ended output at 8 Ω 60 W
Single-ended output at 4 Ω 60 W
Bridge-tied load at 8 Ω 120 W
Bridge-tied load at 70 Vrms 120 W
Bridge-tied load at 100 Vrms 120 W
Frequency response (4 Ω and 8 Ω) 20 Hz–20 kHz (+0.2/-0.08 dB)
Voltage peak rating 75 Vpk
Current peak rating 12 Apk
Signal-to-noise ratio (20 Hz–20 kHz, A-weighted) >100 dB
Output circuitry Class D
Voltage gain (low impedance/70 V/100 V) 25/29/32 dB (Vrms/FS)
High-impedance setting 70 Vrms or 100 Vrms, software-selectable
Low-impedance operating range 2–16 Ω
GPIO connector 1 × 3.5 mm, 6-position black Euro connector; four bidirectional pins, one 3.3 V/100 mA power pin, and one ground pin
Audio flex channel capacity 2
Audio flex channel assignments Each channel can be configured as a mic/line input or line output through Q-SYS Designer Software
Amplifier and load protection Short circuit, open circuit, overcurrent, overvoltage, thermal, RF, DC fault shutdown, active inrush limiting, and on/off muting
AC power input Universal power supply, 100–240 VAC ±10%, 50–60 Hz, with power factor correction (PFC)
Cooling Convection
Product dimensions (H × W × D) 1.75 × 8.7 × 11.25 in (44 × 221 × 286 mm)
Agency approvals Source lists UL, CE, RoHS/WEEE compliant, FCC Class B (conducted and radiated emissions), CCC, and NOM; approvals were marked tentative in the supplied specifications.
Included accessories Rack/wall-mounting kit and power cord

QSC Q-SYS SPA-Qf 60x2 Manuals and Documentation

QSC SPA-Qf 60x2 User Manual (PDF)

QSC SPA-Qf 60x2 Specification Sheet (PDF)

QSC Q-SYS SPA-Qf 60x2 Frequently Asked Questions

Q1: What is the QSC SPA-Qf 60x2?

A: The QSC SPA-Qf 60x2 is a two-channel network amplifier designed for integration with the Q-SYS platform. It combines amplification, configurable audio I/O, and GPIO control in a compact chassis.

Q2: How much power does each amplifier channel provide?

A: The supplied specifications list 60 watts per channel for single-ended operation at 4 Ω and 8 Ω loads.

Q3: Does the SPA-Qf 60x2 support 70 V and 100 V audio systems?

A: Yes. The supplied specifications list bridge-tied output configurations for 70 Vrms and 100 Vrms systems, rated at 120 watts. Confirm the required configuration and speaker compatibility before installation.

Q4: What are the audio flex channels used for?

A: The amplifier has two software-configurable audio flex channels. Each can be assigned as a mic/line input with 48 V phantom power or as a line-level output through Q-SYS Designer Software.

Q5: Does the SPA-Qf 60x2 have GPIO connectivity?

A: Yes. Its listed GPIO connector provides four bidirectional GPIO pins, a 3.3 V/100 mA power pin, and a ground pin for supported control interfaces and devices.

Q6: How is the SPA-Qf 60x2 cooled?

A: It uses convection cooling, which supports quiet operation without relying on a cooling fan. Follow the manufacturer's installation guidance for ventilation and operating conditions.

Q7: Can the SPA-Qf 60x2 be rack-mounted?

A: Yes. The supplied product information describes a half-rack, 1RU chassis and lists rack/wall-mounting hardware among the included accessories.

Q8: What is the frequency response of the SPA-Qf 60x2?

A: The supplied specifications list a frequency response of 20 Hz to 20 kHz (+0.2/-0.08 dB) for 4 Ω and 8 Ω operation.

Q9: What power supply does the amplifier require?

A: The supplied specifications list a universal AC power input of 100–240 VAC ±10%, 50–60 Hz, with power factor correction. A power cord is listed among the included accessories.

Q10: What protection features are included?

A: The supplied specifications list short-circuit, open-circuit, overcurrent, overvoltage, thermal, RF, and DC fault protection, along with active inrush limiting and on/off muting.

Q11: How does the QSC SPA-Qf 60x2 integrate into a Q-SYS system?

A: The SPA-Qf 60x2 is designed as a network amplifier for the Q-SYS platform. Confirm system compatibility and configuration requirements using current QSC documentation and your Q-SYS design.

Q12: Can the flex channels be configured without replacing hardware?

A: The supplied product information states that both flex channels are software-configurable as mic/line inputs or line outputs through Q-SYS Designer Software, allowing the I/O assignment to be selected for the intended application.

Q13: Is the SPA-Qf 60x2 suitable for distributed audio installations?

A: Its compact form factor, networked Q-SYS integration, and configurable audio I/O can support flexible deployment in commercial AV environments. Suitability depends on the system design, speaker loads, and installation requirements.

Q14: What speaker loads are listed for the SPA-Qf 60x2?

A: The supplied specifications list a low-impedance operating range of 2–16 Ω and bridge-tied output ratings at 8 Ω, 70 Vrms, and 100 Vrms. Consult the official manual to confirm approved wiring and load configurations.

Q15: What should I verify before purchasing the SPA-Qf 60x2?

A: Verify the required amplifier power, speaker impedance or distributed-speaker voltage, Q-SYS compatibility, flex channel assignments, mounting needs, power requirements, and current regulatory approvals before purchasing.
