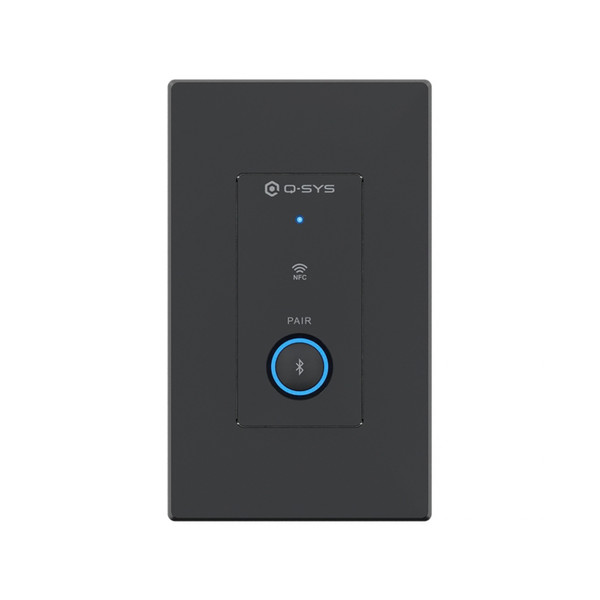

QSC Q-SYS QIO-WP-BT Black Network Bluetooth Audio Wall Plate
- Bluetooth 5.4 Audio Connectivity
- Native Q-SYS Network Integration
- Auracast and Wireless Call Bridging
- PoE-Powered Single-Gang Wall Plate
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why not buy this QSC Q-SYS QIO-WP-BT Black Network Bluetooth Audio Wall Plate today?
Ask a Question
Have a question about the QSC Q-SYS QIO-WP-BT or its compatibility with your Q-SYS system? Our team is happy to help.
Specifications
| Model | QIO-WP-BT |
|---|---|
| Product Type | Network Bluetooth Audio Wall Plate |
| Series | Q-SYS QIO Series |
| Bluetooth Version | Bluetooth 5.4 |
| Bluetooth Profiles | A2DP, AVRCP, HFP, PBP for Auracast |
| Bluetooth Codecs | SBC, AAC, aptX, aptX HD, LC3 for Auracast |
| Bluetooth Range | Greater than 82 ft (25 m) line-of-sight |
| Bluetooth Device Memory | Up to 10 devices |
| NFC | Tap-to-Pair Sensor |
| Networking | 1 x 1 Gbps LAN; 1 x RJ45 Link Port |
| Power | IEEE 802.3af PoE Class 0, 3 W Maximum |
| Faceplate Color | Black, RAL 9011 |
| NA Dimensions | 1.55 x 2.75 x 4.61 in (39.5 x 69.9 x 117.1 mm), including 1-gang cover plate |
| EU Dimensions | 1.55 x 3.39 x 3.39 in (39.5 x 86.0 x 86.0 mm), including cover plate |
| Product Weight | 0.375 lb (170.1 g) |
| Shipping Dimensions | 6.25 x 4.00 x 3.50 in |
| Shipping Weight | 0.75 lb (340.2 g) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5%–85%, Non-Condensing |
| Manufacturer Part Number | QIO-WP-BT |
Manuals
Q-SYS QIO-WP-BT Network Bluetooth Audio Wall Plate – Hardware Documentation
View the Official Q-SYS QIO-WP-BT Documentation
Provides hardware information, front and rear panel descriptions, network connectivity, Bluetooth pairing, PoE power requirements, and reset instructions.
What is the QSC Q-SYS QIO-WP-BT?
A: The QIO-WP-BT is a Q-SYS network Bluetooth audio wall plate that provides wireless audio connectivity, call bridging, and Auracast capabilities within a Q-SYS system.
What Bluetooth version does the QIO-WP-BT use?
A: The QIO-WP-BT uses Bluetooth 5.4 for compatibility with current mobile devices and laptops.
Can the QIO-WP-BT stream music from a phone?
A: Yes. The QIO-WP-BT can receive Bluetooth media from compatible mobile devices and route the audio into a Q-SYS networked audio system.
Does the QIO-WP-BT support wireless calls?
A: Yes. Its Bluetooth Hands-Free Profile (HFP) support enables bidirectional wireless call bridging for supported unified communications applications.
Does the QIO-WP-BT support Auracast?
A: Yes. The QIO-WP-BT supports Auracast broadcast audio for compatible receivers and hearing assistance devices.
How do I pair a phone with the QIO-WP-BT?
A: The wall plate includes a front-panel Bluetooth pairing button and an NFC tap-to-pair sensor for supported mobile devices.
Does the QIO-WP-BT require a separate power supply?
A: No. The QIO-WP-BT is powered through IEEE 802.3af Power over Ethernet (PoE) using its Gigabit LAN connection.
What is the Bluetooth range of the QIO-WP-BT?
A: Q-SYS specifies a Bluetooth range greater than 82 feet (25 meters) line-of-sight.
Can the QIO-WP-BT be installed in a standard wall box?
A: Yes. The North American version fits standard single- or dual-gang backboxes with at least 1.50 inches of depth. The EU version is designed for compatible BS4662-type backboxes.
Does the QIO-WP-BT come with a black faceplate?
A: Yes. Q-SYS supplies a replaceable RAL 9011 black faceplate along with the default white RAL 9003 configuration.
What is the Q-SYS QIO-WP-BT used for?
A: The QIO-WP-BT is used to add Bluetooth audio streaming, wireless call bridging, and Auracast broadcast audio to Q-SYS networked audio systems.
Can the QIO-WP-BT connect a laptop to a Q-SYS audio system?
A: Yes. Compatible laptops can connect wirelessly through Bluetooth so their audio can be integrated into the Q-SYS system.
Does the QIO-WP-BT support Bluetooth call bridging?
A: Yes. Bluetooth HFP provides bidirectional audio for wireless call bridging into a Q-SYS networked audio system.
How does the QIO-WP-BT connect to Q-SYS?
A: The QIO-WP-BT connects to the Q-LAN network through its Gigabit Ethernet port and receives power through PoE.
Is the QIO-WP-BT suitable for conference rooms and collaboration spaces?
A: Yes. Its Bluetooth media streaming and wireless call-bridging capabilities make it well suited for conference rooms, collaboration spaces, education, hospitality, and other Q-SYS applications.
Why not buy this QSC Q-SYS QIO-WP-BT Black Network Bluetooth Audio Wall Plate today?
Warranty
The QSC Q-SYS QIO-WP-BT is covered by Q-SYS's 3-Year Limited Hardware Warranty.
Warranty coverage is subject to Q-SYS's applicable warranty terms and conditions. Warranty service may vary by region.
