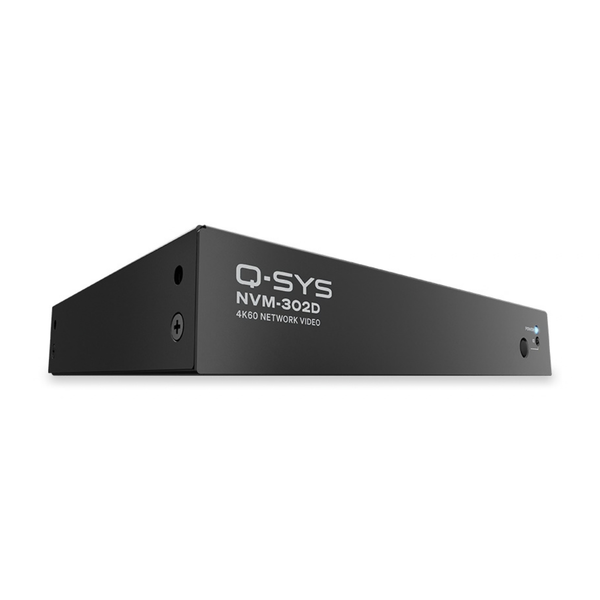

QSC Q-SYS NVM-302D Network Video Decoder
The QSC Q-SYS NVM-302D Network Video Decoder is a native Q-SYS network HDMI decoder designed for efficient, scalable video distribution. With support for resolutions up to 4K60 4:4:4, Mediacast AV routing, and integrated control connectivity, the NVM-302D provides a streamlined solution for distributing network video to displays throughout professional AV environments.
Key Features
- 4K60 4:4:4 Network Video Decoding
- Single-Channel NVM-D1 Decode Application
- 2.5GBASE-T Network Connectivity with PoE+
- HDMI, USB-C, RS-232 and IR Connectivity
Q-SYS Network Video Distribution
The NVM-302D uses the Q-SYS Mediacast AV routing paradigm to deliver high-quality, network-efficient video distribution at scale. It can be deployed alongside select Q-SYS NV Series video endpoints operating in Mediacast mode, making it well suited for meeting rooms, learning spaces, hospitality, entertainment, government, and other professional AV applications.
The decoder includes a pre-installed single-channel NVM-D1 streaming video application and provides one HDMI 2.0 output capable of delivering video formats up to 4K60 4:4:4. The unit also supports third-party device control through RS-232 and IR connectivity.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Why not buy this QSC Q-SYS NVM-302D Network Video Decoder today?
Bring scalable Q-SYS network video distribution to your AV system with 4K60 4:4:4 decoding, integrated control, USB connectivity, and efficient Mediacast routing.
Ask a Question
Have questions about the QSC Q-SYS NVM-302D Network Video Decoder, compatibility, configuration, or Q-SYS video distribution?
Contact HDTV Supply Customer Service and our team will be happy to assist.
Why not buy this QSC Q-SYS NVM-302D Network Video Decoder today?
Contact HDTV Supply for knowledgeable assistance with your Q-SYS video system requirements.
Specifications
| Specification | Details |
|---|---|
| Model | NVM-302D |
| Product Type | Network Video Decoder |
| Video Application | NVM-D1 Single-Channel Decode Application |
| Video Output | 1 x HDMI 2.0 |
| Maximum Resolution | Up to 4K60 4:4:4 with NVM-D1 application |
| HDCP | HDCP 2.3 and 1.4 |
| Audio | 8-channel PCM audio via HDMI; Q-SYS routable |
| USB-C | 1 x USB 3.2 Gen 1 Type-C device port; Device and Host modes supported |
| USB-A | 2 x USB 3.2 Gen 1; 5V, 900mA shared across USB-A and USB-C |
| AV Bridging | Supported through USB-C in a future firmware release |
| HID Routing | Supported through USB-A and USB-C |
| LAN | 2.5GBASE-T compliant |
| Power over Ethernet | PoE+, IEEE 802.3at Type 2, Class 4; 25.5W at PD / 30W at PSE |
| RS-232 | 1 x RS-232, 3.5mm pitch Euroblock |
| IR | 1 x IR Transmit, 3.5mm mini jack |
| Dimensions | 7.3 x 5.2 x 1.2 in. (185 x 131.5 x 30.5 mm) |
| Product Weight | 1.75 lbs. (794 g) |
| Mounting | Surface mounting hardware included; compatible with NV-RK rack-mount accessory |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 90% RH, non-condensing |
| Storage Temperature | -4°F to 158°F (-20°C to +70°C) |
| Included Accessories | Euro-terminal connectors for RS-232, surface mounting accessories, safety and warranty statements |
Why not buy this QSC Q-SYS NVM-302D Network Video Decoder today?
Manuals
Why not buy this QSC Q-SYS NVM-302D Network Video Decoder today?
Choose the NVM-302D for a compact and scalable network video decoding solution within the Q-SYS platform.
What is the QSC Q-SYS NVM-302D?
A: The NVM-302D is a Q-SYS network HDMI decoder designed to receive network video streams and output them to a connected display.
What resolution does the NVM-302D support?
A: The NVM-302D supports video output formats up to 4K60 4:4:4 when using the NVM-D1 application.
Does the NVM-302D have an HDMI output?
A: Yes. The NVM-302D provides one HDMI 2.0 output for connection to a compatible display.
What video application comes with the NVM-302D?
A: The NVM-302D comes pre-installed with the single-channel NVM-D1 decode video application.
Does the NVM-302D support Q-SYS Mediacast?
A: Yes. The NVM-302D uses the Q-SYS Mediacast AV routing paradigm for network-efficient video distribution.
What type of network connection does the NVM-302D use?
A: The NVM-302D has a 2.5GBASE-T compliant LAN connection for network video distribution.
Does the NVM-302D support Power over Ethernet?
A: Yes. The decoder supports PoE+ using IEEE 802.3at Type 2, Class 4 power.
Can the NVM-302D control third-party devices?
A: Yes. The NVM-302D provides RS-232 and IR transmit connectivity for third-party device control.
Does the NVM-302D support USB connectivity?
A: Yes. It includes one USB-C port and two USB-A ports with USB 3.2 Gen 1 connectivity and HID routing support.
How can the NVM-302D be mounted?
A: Surface mounting hardware is included, and the decoder is also compatible with the NV-RK rack-mount accessory.
Is the Q-SYS NVM-302D suitable for large-scale video distribution?
A: Yes. The NVM-302D is part of the Q-SYS NVM Series, which is designed for scalable, network-efficient video distribution across larger AV environments.
Can the Q-SYS NVM-302D distribute 4K video over a network?
A: Yes. With the NVM-D1 application, the NVM-302D can decode network video and output formats up to 4K60 4:4:4.
What is the Q-SYS NVM-302D best used for?
A: It is well suited for meeting rooms, learning spaces, hospitality, entertainment, government, and other professional AV installations requiring scalable network video distribution.
Can the NVM-302D work with other Q-SYS video endpoints?
A: Yes. The NVM-302D can be deployed alongside select Q-SYS NV Series video endpoints when those endpoints are operating in Mediacast mode.
Does the Q-SYS NVM-302D support AV bridging?
A: The NVM-302D includes USB-C connectivity intended to support AV bridging through a future Q-SYS Designer Software firmware release.
Why not buy this QSC Q-SYS NVM-302D Network Video Decoder today?
Deploy a compact Q-SYS network video decoder with 4K60 4:4:4 support, Mediacast routing, PoE+, and integrated control connectivity.
Warranty
The QSC Q-SYS NVM-302D Network Video Decoder is covered by a 3-Year Limited Warranty.
QSC's current warranty statement lists Q-SYS products, including the applicable Q-SYS product families, with a standard 3-year limited warranty. Warranty coverage is subject to QSC's current warranty terms and conditions. :chatgpt-content-reference{index="2"}
