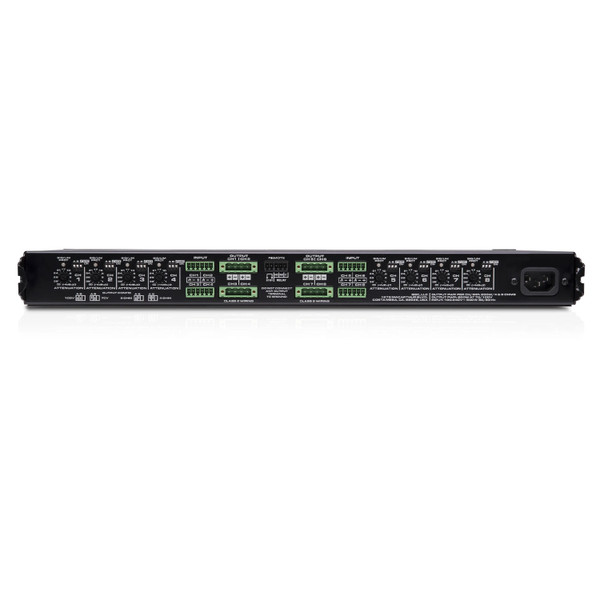

The QSC MP-A80V 8-Channel Amplifier builds on QSC's 50-year legacy of amplifier dependability and quality.
The MP-A Series offers exceptional flexibility for business music and paging applications while maintaining high efficiency and a low total cost of ownership.
QSC MP-A80V 8-Channel Amplifier Features
- Eight-Channel Amplification: Provides eight amplifier channels in a compact 1RU design for space-efficient installations.
- FlexAmp Technology: Allows each pair of amplifier channels to deliver up to 400 W of combined power in any ratio.
- High-Efficiency Design: Uses Class-D output circuitry and a switchmode power supply to help reduce energy consumption and operating costs.
- Flexible Speaker Compatibility: Selectable load settings support 4-ohm, 8-ohm, 70 V, or 100 V operation on each channel.
- Selectable High-Pass Filter: An 80 Hz high-pass filter can be enabled individually for each channel.
- Power-Saving Features: Auto-standby activates after 28 minutes of inactivity, with automatic ramp-up when audio returns. A remote standby input is also provided.
- Remote Status Monitoring: Includes an amplifier status output for remote system monitoring.
QSC Certified Expertise
Knowledgeable Support for QSC Products
HDTV Supply has QSC Level 1 certified expertise. Our team has completed QSC Level 1 Training, demonstrating foundational knowledge of the QSC platform, including system design, hardware and software, programming, and troubleshooting.
This training helps us provide knowledgeable product guidance when customers are selecting and deploying Q-SYS solutions. When you purchase Q-SYS products from HDTV Supply, you are working with a team that understands the Q-SYS platform and can help you make informed product and system decisions.
Looking for a flexible multichannel amplifier for commercial audio, background music, or paging? Contact HDTV Supply for assistance choosing the right solution.
Ask a Question About the QSC MP-A80V
Need help with the QSC MP-A80V 8-Channel Amplifier? Contact HDTV Supply for product information, compatibility guidance, and assistance with your installation requirements.
Call: 833-WOLFPACK (833-965-3722)
Website: HDTV Supply
QSC MP-A80V 8-Channel Amplifier Specifications
| Specification | MP-A80V |
|---|---|
| Number of Channels | 8 |
| Power Output (All Channels Driven) | 200 W per channel at 8 Ω, 4 Ω, 70 V, or 100 V, as supplied in the source specifications |
| FlexAmp Technology | Up to 400 W combined power per pair of amplifier channels, in any ratio |
| Frequency Response at 8 Ω | 20 Hz–20 kHz, ±0.5 dB |
| Signal-to-Noise Ratio | >103 dB |
| Input Sensitivity | 1.23 V (+4 dBu) |
| Gain at 8 Ω | 30.0 dB |
| Output Circuitry | Class D |
| Input Impedance | >10 kΩ, balanced or unbalanced |
| Maximum Input Level | 12.3 V (+24 dBu) |
| Cooling | Forced-air cooling with thermally regulated fan speed; side/rear-to-front airflow |
| Operating Temperature | Maximum: -10°C to 50°C; recommended: 0°C to 35°C; reduced performance above 40°C |
| Input Connectors | Eight 3.5 mm Euroblock, 3-pin (green) |
| Remote Connectors | One 3.5 mm Euroblock, 5-pin (black) |
| Output Connectors | Four 5.0 mm Euroblock, 4-pin (green) |
| Front-Panel Indicators | Power; signal per channel; limit, mute, and protect per channel |
| Rear-Panel Indicators | Bi-color signal/limit/mute/protect LED |
| User-Configurable Operating Modes | DIP-switch selectable 4 Ω or 8 Ω low-impedance operation, or 70 V or 100 V high-impedance direct drive, per channel |
| Remote I/O | Remote standby and amplifier status output via 3.5 mm connectors |
| High-Pass Filter | Selectable 80 Hz filter via DIP switch for each channel |
| Dimensions (H × W × D) | 1.75 × 19 × 14.8 in (44 × 483 × 377 mm) |
| Net Weight | 12.8 lb (5.8 kg) |
| Power Requirements | Universal power supply with active power factor correction; 100–240 VAC, 50–60 Hz |
| Agency Approvals | UL, CE, RoHS/WEEE compliant, FCC Class B conducted and radiated emissions |
| Included Accessories | IEC power cable, quick-start guide, and connector pack |
