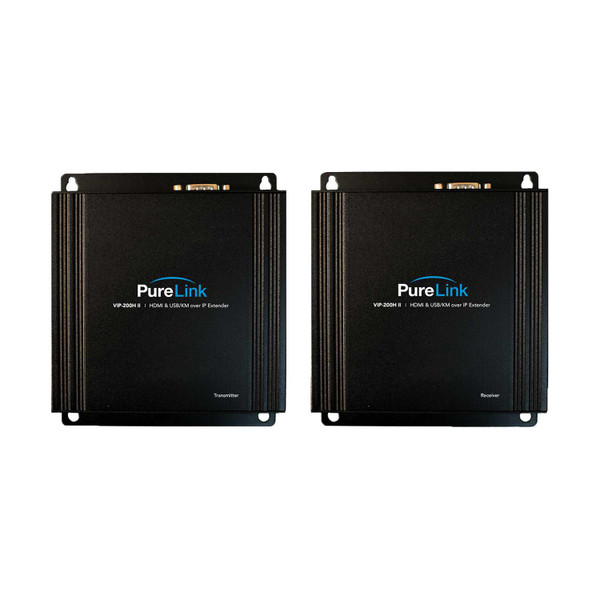

This PureLink VIP-EXT-200-1 Full HD 1080P HDMI & USB/KM over IP Extension System 1080P HDMI & USB/KM over IP Extension System provides HD video, audio, RS-232, IR, and USB signal extension, point to point, with or without a network. The Transmitter can be connected to a Receiver supporting distances up to (150 meters), or through a network switch, effectively doubling the extension distance up to 300 meters. Video over IP extension, when utilized on a network, allows you to convert your extension system at any time to distribution, switching, or matrix routing, a major advantage of Video over IP opposed to other technologies.
PureLink VIP-EXT-200-1 Full HD 1080P HDMI & USB/KM over IP Extension System Features:
- HD – 1080P60 extension
- Extend up to 150 meters TX direct to RX, or 300 meters TX to network switch to RX
- Extend video, and stereo or multi-channel audio
- Extend keyboard, mouse, touchscreen, and more via USB 2.0
- Extend RS232, and Infrared
- Utilize built-in API diagnostics of TX, RX, source, and display when extending through network
- Settable scaler in RX with image rotation options
- Can be converted with additional Tx/Rx units for distribution, switching, and matrix systems
Why not buy this PureLink VIP-EXT-200-1 Full HD 1080P HDMI & USB/KM over IP Extension System today?
PureLink VIP-EXT-200-1 Full HD 1080P HDMI & USB/KM over IP Extension System Specifications:
Hardware
- Output Signal Type(s): Configurable via PureMedia™ universal output cards supporting HDMI, HDBaseT, Fiber, and 3G-SDI
Performance
- Supported Distance:
- up to (150m) via CAT – TX direct to RX
- up to (300m) via CAT – TX to network switch to RX
- up to 37 miles (60km) via Fiber– TX direct to RX
- up to 74 miles (60km) via Fiber– TX to network switch to RX
- Supported Resolutions: Up to 1080p, 1920x1200@60Hz
- Compliance: HDCP 1.3
- Supported Audio Formats: Stereo, up to 7.1 LPCM 192Khz / Dolby True HD / DTS-HD Master Audio
- Ir Receiver(Internal): 20-60Khz/ ±45°/5M
- Ir Emitter(External): 3.5mm Stereo Phono Jack 20-60Khz/ ±45°/5M
- Power Consumption: 1350mA (Typical)
- Power Supply: DC 5V 2000mA
Connections
- Input Type(s):
- TX : (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-in) (1) USB 2.0 Type B (1) RS-232 DB9 Female
- RX : (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-out) (1) Gigabit RJ45
- Output Type(s):
- TX : (1) HDMI Type A (1) 3.5mm Stereo Phone Jack (line-out) (1) Gigabit RJ45
- RX : (1) HDMI Type A(1) 3.5mm Stereo Phone Jack (line-in)(1) USB 2.0 Type B(1) RS-232 DB9 Female
- Ir Receiver(Internal): 20-60Khz/ ±45°/5M
Enclosure
- Product Dimensions:
- TX : 5.51inch x 4.92inch x 1.18inch
- RX : 5.51inch x 4.92inch x 1.18inch
- Product weight:
- TX : 0.84 lbs
- RX : 0.84 lbs
Warranty
- Warranty: Limited Warranty (3-Years)
