The Powervar 17151-01R SINERGY III Online UPS provides 1500VA / 1350W of battery-backup capacity with online double conversion and true sinewave output. Install it in a 2U rack position or a floor-standing tower arrangement.
Features
- 1500VA / 1350W capacity: Supports connected equipment within both ratings.
- Online double conversion: Provides true sinewave output.
- Six NEMA 5-15R outlets: Three direct and three programmable receptacles.
- 120VAC default output: Rated at 12.5A.
- Rack or tower: Supports a compatible four-post rack or tower arrangement.
- Six-foot input cord: Includes a NEMA 5-15P plug.
- USB and RS-232: Communications connections for monitoring.
- Serviceable batteries: User hot-swappable internal batteries, following manufacturer procedures.
- Expandable backup: Compatible external battery cabinets are available separately.

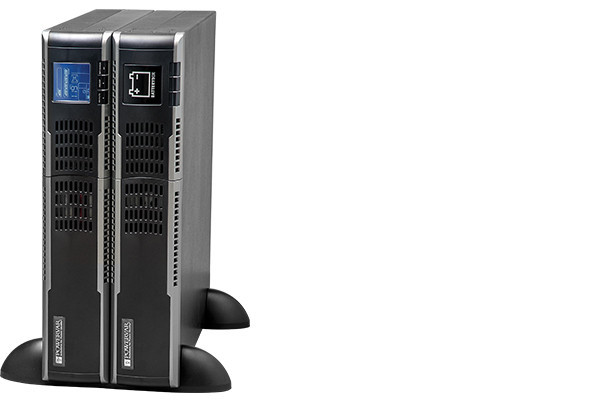

Manufacturer image is representative; refer to the exact-model specifications.
Powervar 17151-01R Specifications
- Part number: 17151-01R
- Model: ACDEF1500-11
- Series: SINERGY III
- Rated power: 1500VA / 1350W
- Topology: Online double conversion
- Output waveform: True sinewave
- Rack height: 2U
- Installation: Rack or tower
- Output voltage: 120VAC default; 100/110/115VAC selectable
- Output current: 12.5A at default 120VAC; 12.0/12.3/12.4A at selectable voltages
- Input connection: Six-foot cord with NEMA 5-15P plug
- Output connections: Six NEMA 5-15R outlets: three direct and three programmable
- Communications: USB and RS-232
- Dimensions (H × W × D): 3.39 × 17.24 × 20.20 inches
- Shipping weight: 51 lb / 23.2 kg
- Internal batteries: Three 12V, 9Ah batteries; user hot-swappable per manufacturer procedures
- Recharge time: 12 hours to 100%
- Manufacturer full-load runtime: Greater than 3.5 minutes; actual runtime depends on load and battery condition
- TAA compliant: No
Manuals and Manufacturer Documents
Select a document to open it on this page.
Open User Manual Close ✕
SINERGY III UPS and Battery Cabinet User Manual
If your browser cannot display the document, open the original PDF in a separate tab.
Open Manufacturer Specification Sheet Close ✕
SINERGY III ACDEF1500-11 Specifications
If your browser cannot display the document, open the original PDF in a separate tab.
Setup and Operation Guide
This summary covers the main setup choices and controls. Follow the complete manufacturer manual for installation, electrical safety and battery procedures.
Choose a mounting position
Use a compatible four-post rack or floor-standing tower arrangement. Install the mounting hardware and supports as shown in the manual.
Plan your load
Keep the combined equipment load within both 1500VA and 1350W. Rated output is 12.5A at the default 120VAC setting. Backup time depends on load and battery condition.
Connect and start
Complete the manual’s installation and battery-connection steps first. Connect to a grounded receptacle and avoid extension cords. With acceptable input voltage, hold ON/Mute for at least two seconds and confirm ONLINE on the display.
Prioritize equipment
Use general-purpose outlets for critical equipment and programmable outlets for less-critical loads. Follow the manual to configure their behavior. Turn connected devices on one at a time while monitoring the load display.
Respond to alarms
Reduce the connected load if an overload alarm appears. Follow the manufacturer’s troubleshooting and battery-service procedures for faults or battery replacement.
Powervar Limited Warranty
View Warranty Details Close ✕
Powervar 17151-01R Warranty Details
Limited two-year warranty: Powervar specifies coverage for the chassis, electronics and batteries for two years from shipment, subject to manufacturer terms and exclusions.
Battery coverage exception: Battery coverage is reduced to 90 days in applications that regularly and intentionally disconnect AC mains power.
This is a summary. The manufacturer user manual in the Manuals tab contains the complete warranty and service procedures.
Need assistance?
Call HDTV Supply at 833-WolfPack (833-965-3722) or email customerservice@hdtvsupply.com.
Which model is part number 17151-01R?
It is the SINERGY III ACDEF1500-11, a 1500VA / 1350W online double conversion UPS.
What is its power configuration?
The UPS is rated at 1500VA / 1350W, with 12.5A output at the default 120VAC setting. It has six NEMA 5-15R outlets and a NEMA 5-15P input plug.
How much rack space does it require?
It occupies 2U and also supports tower placement.
What output waveform does it provide?
The SINERGY III series provides true sinewave output.
Which communications connections are available?
The manufacturer identifies USB and RS-232 connections for this model.
Can it provide backup power for control equipment?
It provides battery backup for compatible equipment within its 1500VA / 1350W ratings. Confirm your total load and required runtime when selecting a UPS.
How long will it run on battery power?
The manufacturer specifies greater than 3.5 minutes at full load. Actual runtime depends on connected load, battery condition and operating conditions.
Can this UPS work in a rack or beside equipment?
Yes. Its rack/tower design supports both arrangements with appropriate mounting hardware and supports.
Can I add battery capacity?
Compatible external battery cabinets are available separately. Confirm cabinet compatibility and expected runtime for your equipment load.
Are the batteries serviceable?
The UPS supports user hot-swappable internal batteries. Follow the manufacturer’s safety and replacement procedures.
