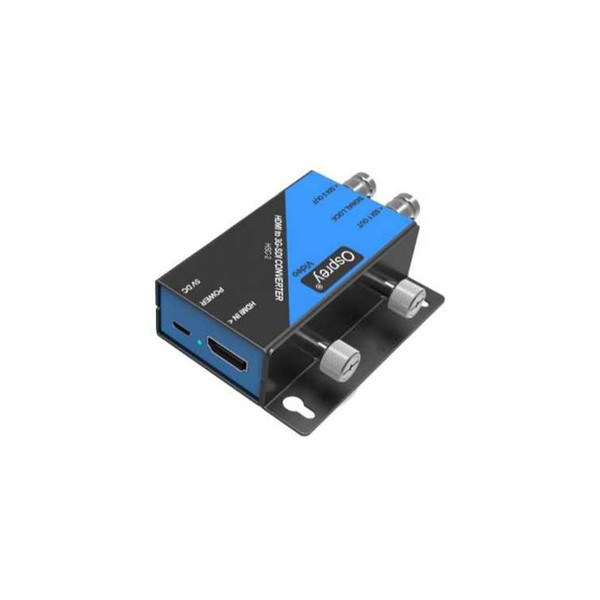

This Osprey 97-21102 HSC-2 Mini HDMI to 3G SDI Converter incorporate HDMI sources into your broadcast or pro video workflow. SD and HD HDMI signals up to 1080p60 will be passed through to the parallel SDI outputs without scaling or other processing, aside from color space conversion to YUV 4:2:2. Minimal processing ensures that the converters remain small and unobtrusive, while allowing more advanced devices to perform image control in the SDI signal domain. a USB power supply is included as well as mounting brackets.
Osprey 97-21102 HSC-2 Mini HDMI to 3G SDI Converter Features:
- Supports up to 1080p60 Resolution
- Dual SDI Outputs
- No Scaling Performed
- Small Form Factor
- USB Power Supply
Why not buy this Osprey 97-21102 HSC-2 Mini HDMI to 3G SDI Converter today?
Osprey 97-21102 HSC-2 Mini HDMI to 3G SDI Converter Specifications:
- Inputs: 1 x HDMI Type A
- Outputs: 2 x BNC SD/HD/3G-SDI
- SDI Compliance: SMPTE 259M, SMPTE 292, SMPTE 424M
- HDMI Color Space: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
- SDI Color Space: YUV 4:2:2
- Resolution Support
- 1080p 23.98/24/25/29.97/30/50/59.94/60
- 1080i 50/59.94/60
- 1035i 50/59.94/60
- 720p 50/59.94/60
- NTSC
- PAL
- Power Input
- 1 x Micro-USB
- 5 VDC, 0.4 A (2 W)
- Dimensions: 3.5 x 0.9 x 1.6" / 90 x 22 x 40 mm
